32
step 1 Make sure the upstream inverter is in the OFF position.
step 2 Make sure the air circut breaker and disconnector are in the OFF position.
step 3 Lead the cable into the wiring area through the inlet hole, and mark the cable polarity.
step 4 Strip the protective layer of the cable to expose the copper core of the wire with strippers.

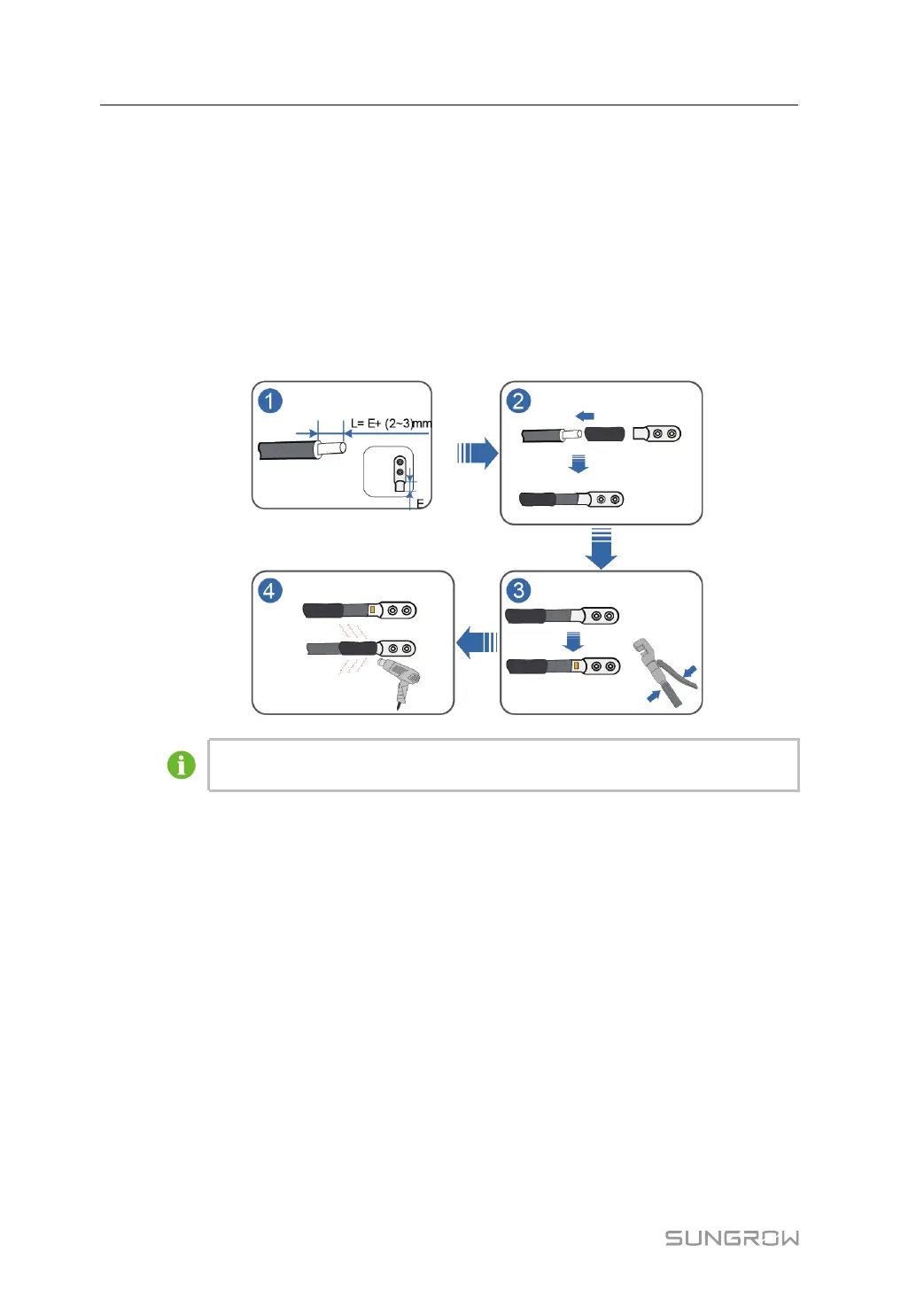

step 5 Install the OT/DT terminal to the wire and crimp them with a crimping tool. Install a heat
shrink tubing to the terminal and heat it with a heat gun.
1 Put the stripped cable inside the cable lug.
2 Tighten the cable lug with relevant tools. Crimp it at least twice.
Cable protectors are advisable in the cable crosses if the multi-core cables are
used.
step 6 Connect the cable.
1 Select bolts matching with the cable lug.
2 Attach the cable lug to the connection copper bar.
• If copper wires are used, connect the spare parts as described below:
6 Electrical Installation System Manual
