The PCS is designed with standard network port communication interfaces.
The network port communication interfaces are used to establish communication with
monitoring devices and to upload monitoring data to a monitoring background through
communication cables.
When communication is established between the PCS and the communication devices,
users can view PCS information or set PCS parameters, such as running parameter and
protection parameter, through the Web.

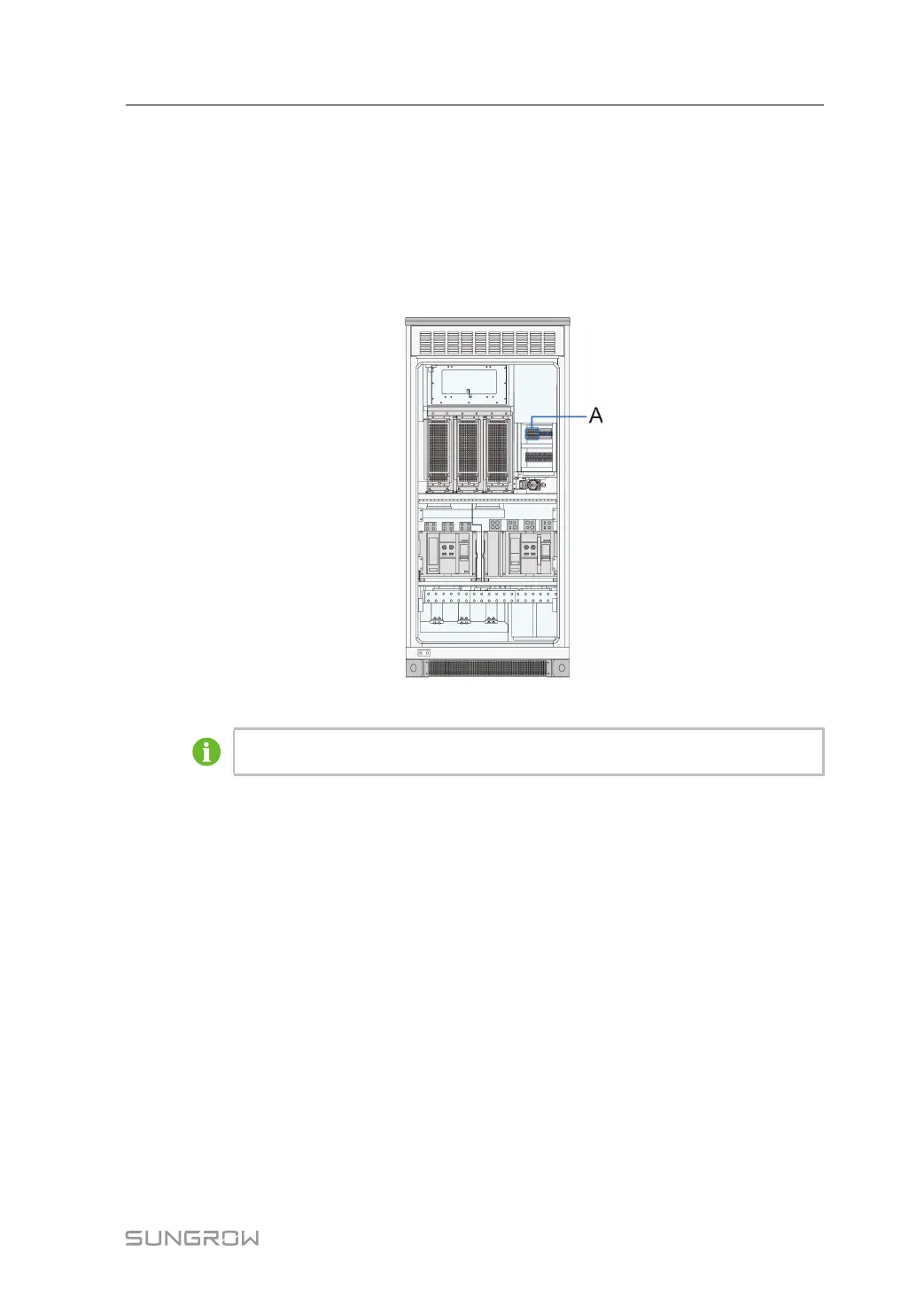

A:Communication interfaces
The figure above is indicative only, and actual product may differ.
Remote Emergency Stop
Remote emergency stop terminals XB10-5 and XB10-11 are reserved on the host PCS. By
connecting them, the PCS can be stopped.
