5.6.3 Fixing the PCS
Proceed as follows to fix the PCS:
step 1 Move the PCS to the final installation place using proper tools;
step 2 Fix the PCS to the steel channel or ground by M12 bolts;
step 3 Install the front and rear panels of PCS base to finish the PCS fixing.

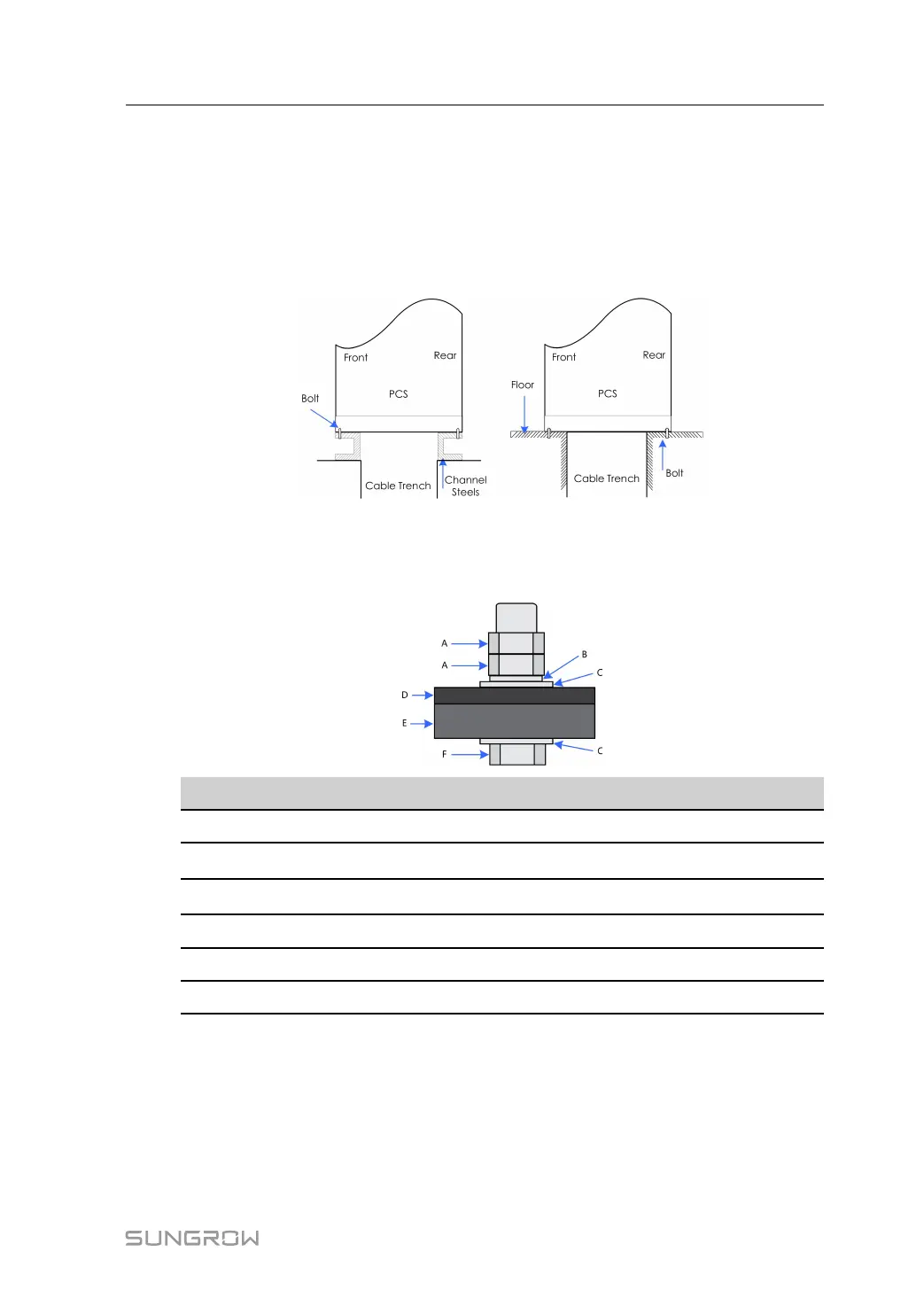

figure 5-8 Fix the PCS
- - End
Connection sequence between PCS base and channel steels is described below.
No. Name
A Nut
B Spring washer
C Square washer
D PCS base
E Channel steels
F Bolt
