Clean the terminals before cable connection. Do not touch the terminal after
cleaning.
Spare parts required for power cables connection like the screws are within the scope of de-
livery. Please respect the description in this chapter during connection.
6.3.1 Copper Wire Connection
If copper wires are used, connect the spare parts as described below:

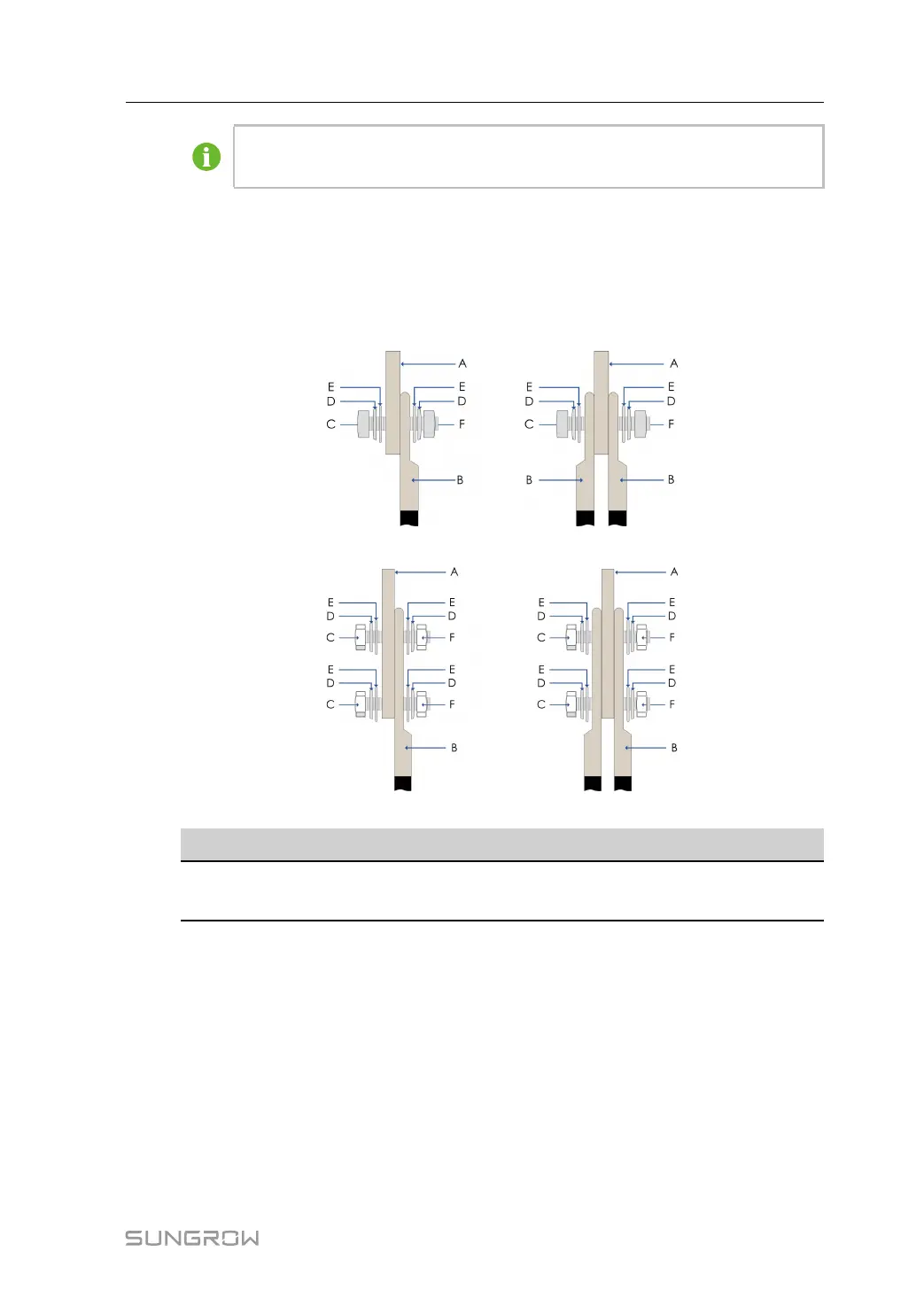

figure 6-1 Copper wire terminal connection sequence of single-hole cable connection
figure 6-2 Copper wire terminal connection sequence of double-hole cable connection
A B C D E F
Copper Bus Cable Lug Bolt Spring
washer
Flat washer Nut
6.3.2 Aluminum Wire Connection
When a aluminum wire is selected, a copper-aluminum composite terminal is needed as
shown below:
