38

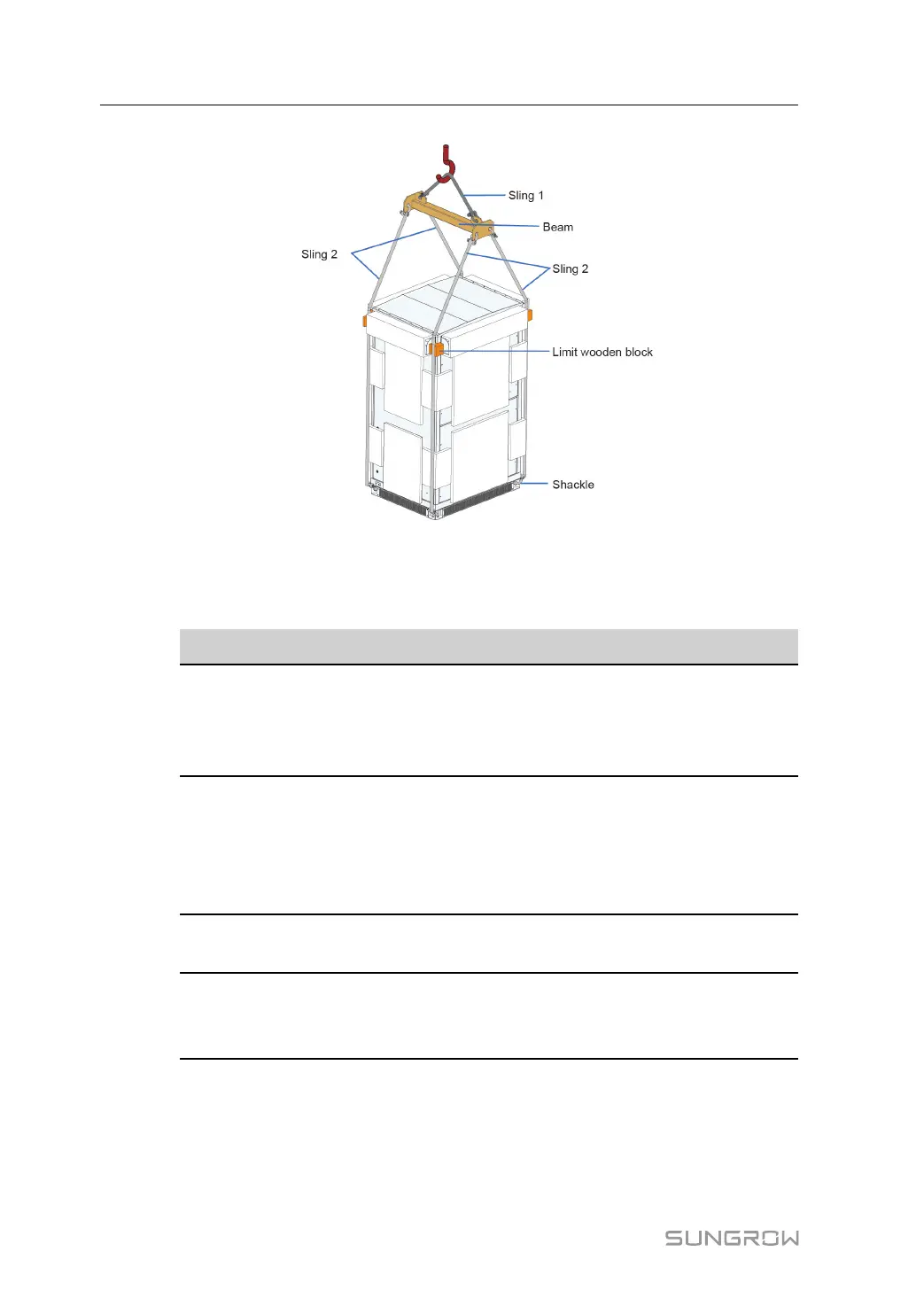

figure 5-6 Move the PCS by a crane
*The figure above is indicative only.
table 5-2 Composition of Load-lifting Attachment
Name Specifications Description
Sling 1 Sling 1 is attached to the hook. A
single sling shall be no shorter than
4000 mm, and shall at least bear
9000 KG.
Not included in the scope of supply
Sling 2 Sling 2 is used to connect the cabi-
net and the beam. Four slings are
needed, with a length of 3500 mm
each, and a single sling shall at
least bear 4000 KG.
Included in the scope of delivery
Beam It is necessary to use the specified
beam.
Included in the scope of delivery
Shackle At least 10 shackles are required,
and a single shackle shall at least
bear 9000 KG.
Not included in the scope of supply
Hoisting instructions:
1 The weight of the product is about 1500kg.
2 It is necessary to use shackles, slings, and the specified beam to hoist the cabinet by
the four hoisting points at the cabinet bottom.
5 Mechanical Mounting User Manual
To Next Page
