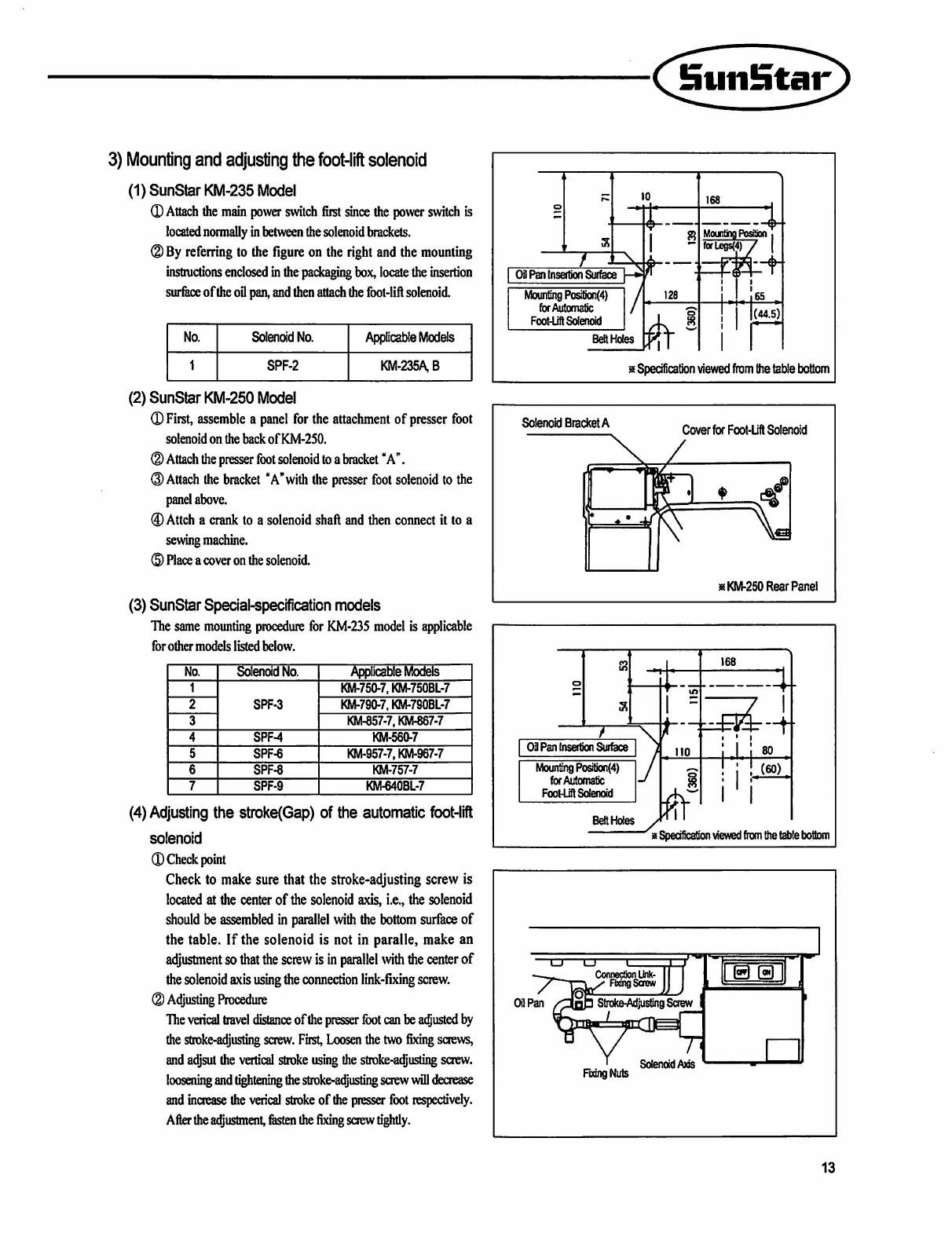

3) Mounting and adjusting the foot-lift solenoid
(1)SunStarKM-235 Model
0 Attach the main power switch fi rst since the power switch is
located normally in between the solenoid brackets.
(2) By referring to the figure on the right and the mounting
instmctions enclosed in the padcaging box, locate the insertion
surface of the oil pan, and then attach the foot-lift solenoid.
No.
Solenoid No. Applicable Models
1
SPF-2
KM-235A B
(2)SunStarKM-250Model
(D First, assemble a panel for the attachment of presser foot
solenoid on the backof ICM-2S0.
(D Attach the presser foot solenoid to a bracket "A".
©Attach the bracket "A"with the presser foot solenoid to the
panel above.
0 Attch a crank to a solenoid shaft and then connect it to a
sewing machine.
(5) Place a cover on the solenoid.
(3) SunStar Special-specification models
The same mounting procedure fi ir KM-235 model is q)plicable
for other models listed below.
No.
Sdenotd No.
Applicable Models
1
KM-750-7. KM-750BL-7
2
SPF-3 KM-790-7. KM-790BL-7
3 KM-857-7.KM-867-7
4
SPF-4 KM-560-7
5
SPF-6 KM-957-7.KM-967-7
6
SPF-8
KM-757-7
7
SPF-9
KM-640BL-7
(4) Adjusting the stroke(Gap) of the automatic foot-lift
solenoid
0 Check point
Check to make sure that the stroke-adjusting screw is
located at the center of the solenoid axis, i.e., the solenoid
should be assembled in parallel with the bottom surface of
the table. If the solenoid is not in paralle, make an
adjustment so that the screw is in parallel with the center of
the solenoid axis using the connection link-fixing screw.
(2) Adjusting Procedure
The verical travel distance of the presser foot can be adjusted by
the stroke-adjusting saew. First, Loosen the two fi xing screws,
and adjsut the vertical stroke using the stroke-adjusting screw,
loosening and tightening the stroke-adjusting screw will decrease
and increase the verical stroke of die presser foot respectively.
After the adjustment, fasten the fixing screw tighdy.
03 Pan tnseftion Sur^
Mounting Positjcn(4)
for Automatic
Foot-UflSoIenotd
Belt Holes
128
■ o
h'-
168
Mounting PosiBon
fofl£BS(4)
65
(44.5)
Solenoid Bracket A
« Specification viewed from the table bottom
Cover for Foot-Lift Solenoid
r ■■
[fer-
*
«KM-250 Rear Panel
T
03 Par Insertion Surface
Mount'ng Position(4)
for Automatic
Foot4JftSoteno(d
Beft Holes
168
110
"h'
i .l. i
! (60)
» SpecHication viewed from the table bottom
Connection Unk-
Fixing Screw
Oil Pan Stroke^justing Screw
FodngNuts
Solenoid Axis
@ 0
13
