SunStar Fortuna 5 Series User's Manual Parts Book

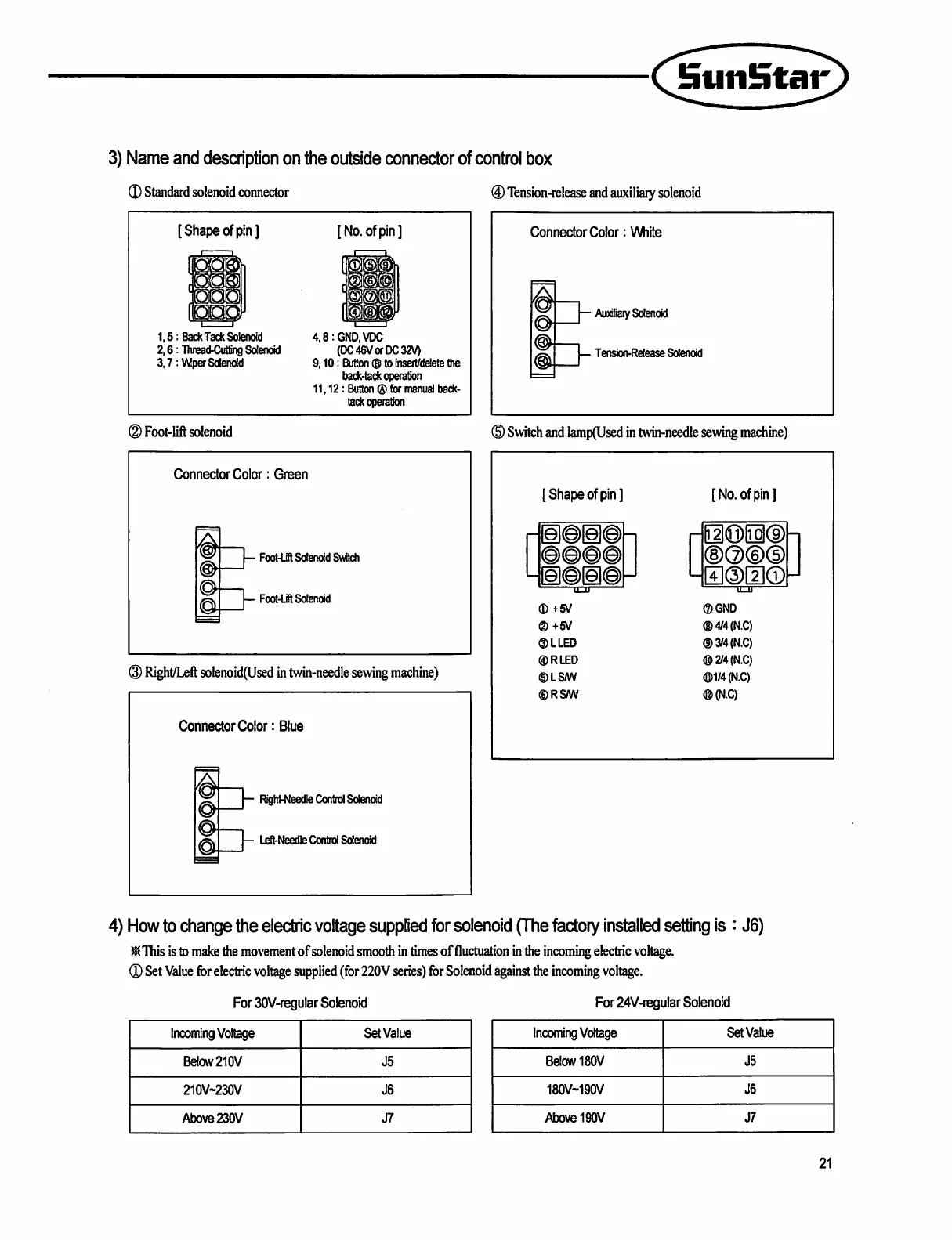

3) Name and description on the outside connector of control box
0 Standard solenoid connector
[Shape of pin] [No. ofpm]
1,5: Back Tack Solenoid
2,6: Thread^^otting Solenoid
3,7 :Wper Solenoid
4,8:GND.VDC
(DC 46V or DC SZV)
9,10: Button ® to inseit/delete ttie
tiack-tack operation
11,12: Button ® for manual back-
tack operation
(D Foot-lift solenoid
Connector Color: Green
— Foot-Lifl Solenoid Switch
1
Foot-Lift Solenoid
(3) Right/Left solenoid(Used in twin-needle sewing machine)
Connector Color: Blue
— Right-Needle Control Solenoid
^ 1
©.—T
Left-Needle Control Solenoid
® Tension-release and auxiliaiy solenoid
Connector Color: White
— Auxiliaiy Solenoid
— Tension-Release Solenoid
© Switch and lamp(Used in twin-needle sewing machine)
[Shape of pin] [No. of pin]
® +5V
®+5V
®LLED
®RLED
©ISM
©RSW
©GND
©4/4(N.C)
®3/4(N.C)
©2/4(N.C)
®1/4(N.C)
®(N.C)
4) How to change the electric voltage supplied for solenoid (The factory installed setting is : J6)
^ This is to make the movement of solenoid smooth in times of fl uctuation in the incoming electric voltage.
(D Set Value for electric voltage supplied (for 220V series) for Solenoid against the incoming voltage.
For 30V-regular Solenoid
For 24V-regular Solenoid
Incoming Voltage
Set Value
Below 210V J5
210V~230V
J6
Above 230V
J7
Incoming Voltage
Set Value
Below 180V J5
180V-190V J6
Above 190V J7
21
