(D Set Value for electric voltage suplied (for 1 lOV series) for Solenoid against the incoming voltage.
For 30V-regular Solenoid For 24V-regular Solenoid
Incoming Voltage Set Value
Below 100V J5
100V~120V J6
Above 120V J7

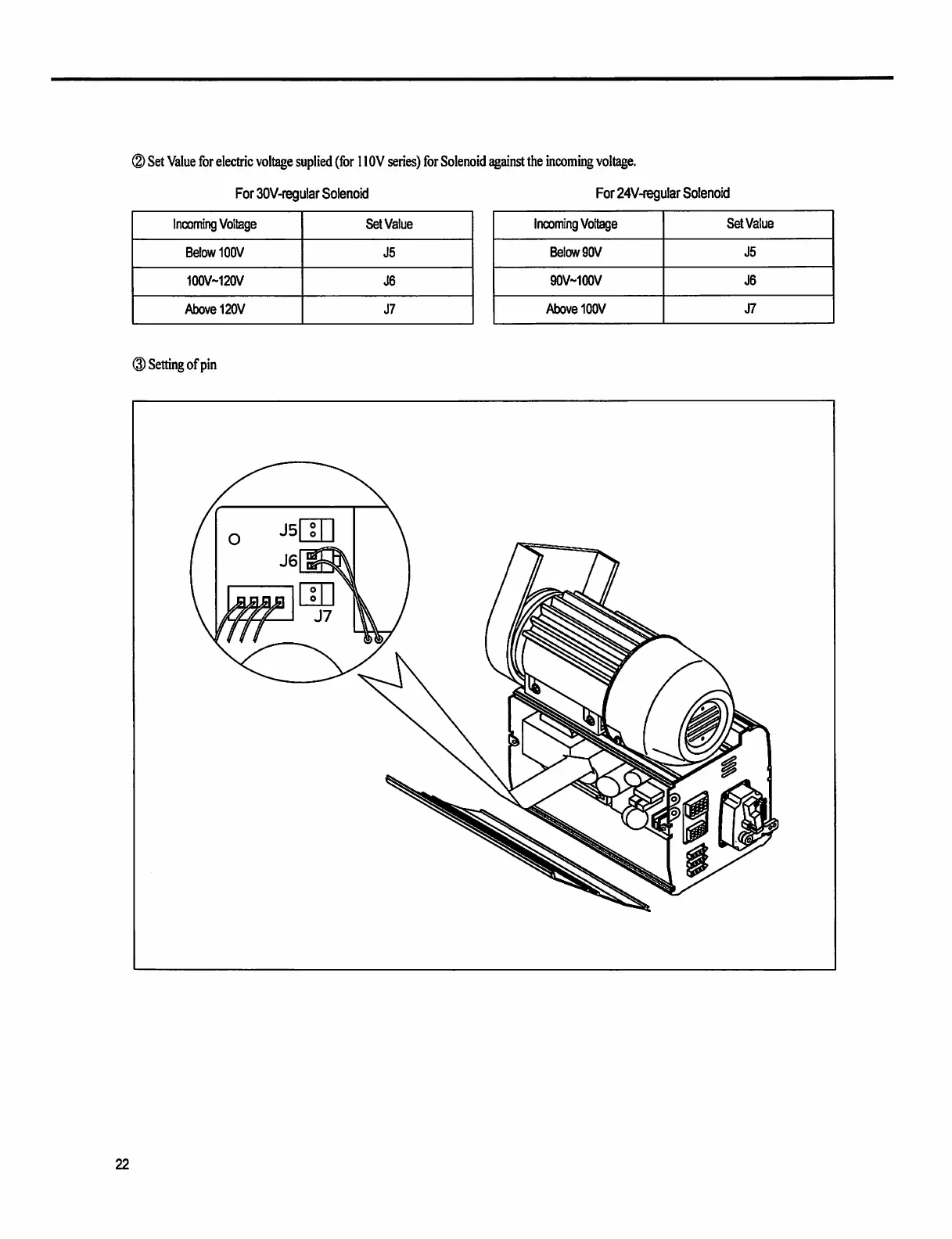

@ Setting of pin
Incoming Voltage
Set Value
Below 90V
J5
90V~100V J6
Above 100V
J7
22
