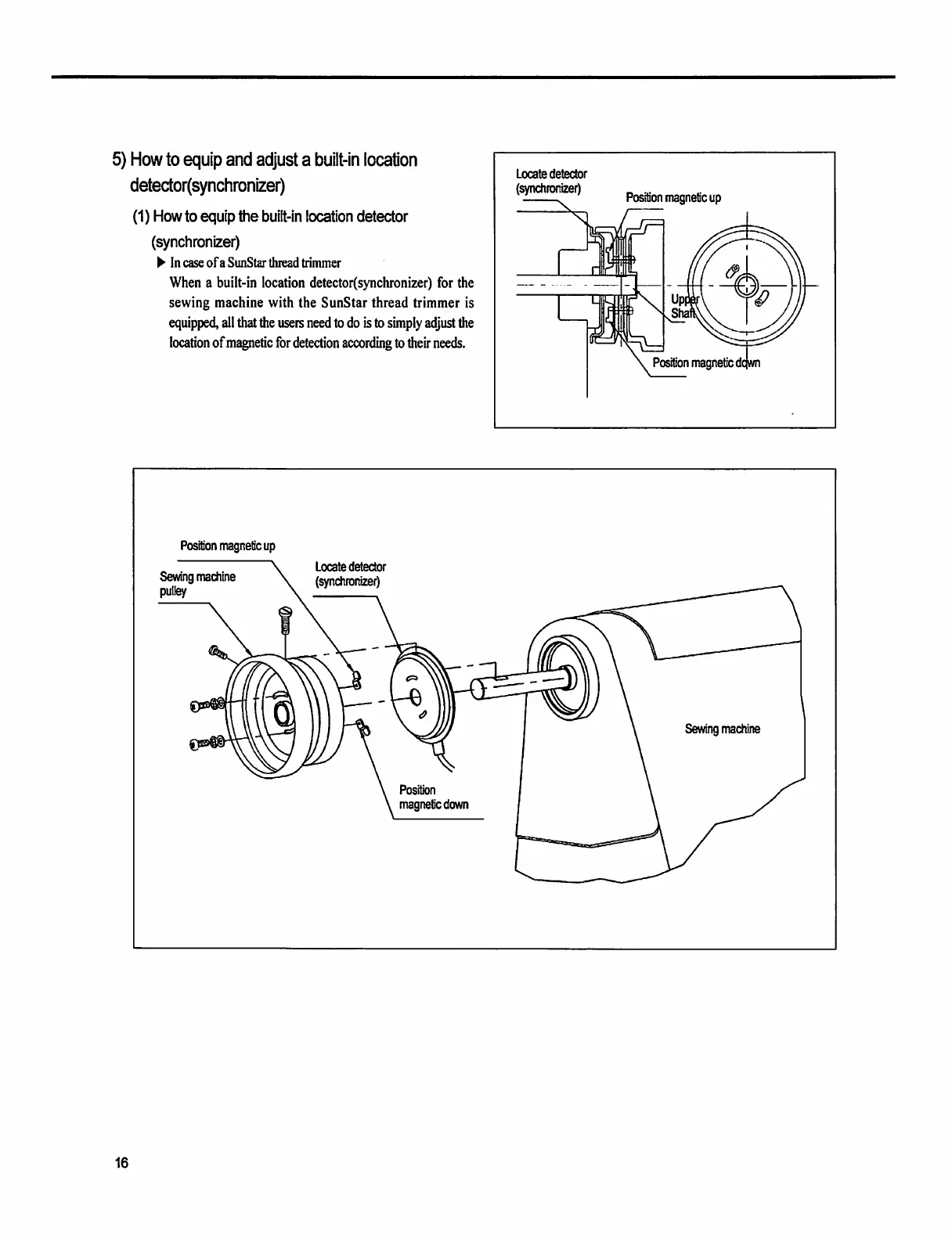

5) How to equip and adjust a built-in location
detector(synchronizer)
(1) How to equip the built-in location detector
(synchronizer)
^ In case ofaSunStar thread trimmer
When a built-in location detector(synchronizer) for the
sewing machine with the SunStar thread trimmer is
equipped, all that the users need to do is to simply adjust the
location of magnetic for detection according to their needs.
Locate detector
(synchronizer)
Position magnetic up
■£ )
Position magneto d
Positon magnetic up
Sewing machine
pulley
Locate detector
(synchronize^
Sewing machine
Position
magnetic down
16
