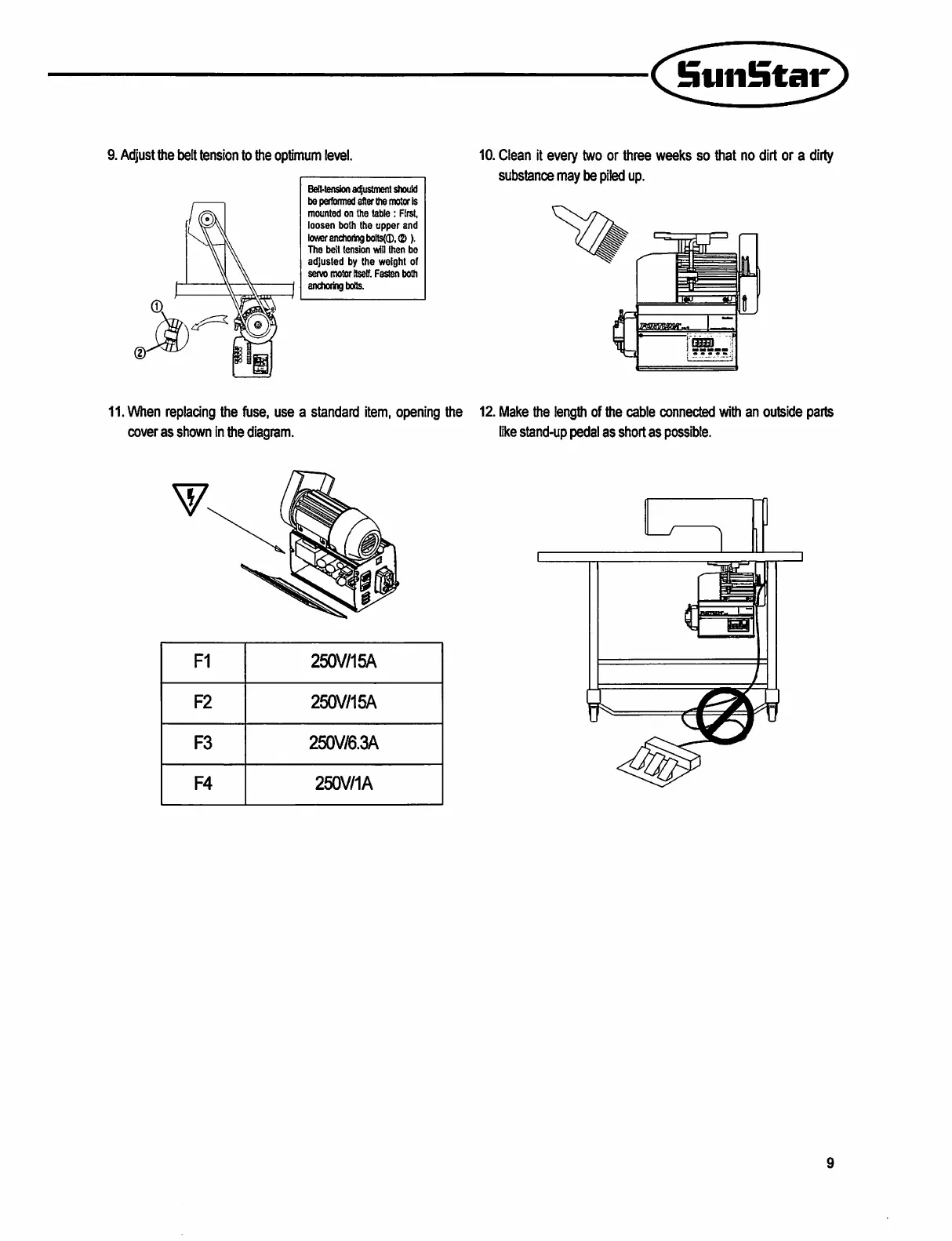

9. Adjust the t)elt tension to the optimum level.
Beit-tension acfustment stiould
t)e peribrmed after ttw motor is
mounted on ttie table: First,
loosen botti the upper and
loMer anchoring bolt^0,®).
The belt tension will then be
adjusted by the weight of
servo motor Itself. Fasten both
anchoring bolts.
10. Clean it every two or three weeks so that no dirt or a dirty
substance may be piled up.
11. When repladng the fuse, use a standard item, opening the 12. Make the length of the cable connected with an outside parts
cover as shown in the diagram. like stand-up pedal as short as possible.
F1 250V/15A
F2 250V/15A
F3
250V/6.3A
F4 250V/1A
