B. Insert head support rubber A①, and head support rubber
B② to the corner of oil fan and then mount on the table.
At this time, insert rising stitch support cap ③ on the hole
of oil fan.
C. After attaching hinge① inserted to sewing bed to hinge
rubber②, put down the head of sewing machine on head
support rubber A③ and head support rubber B④on top
of the oil fan.

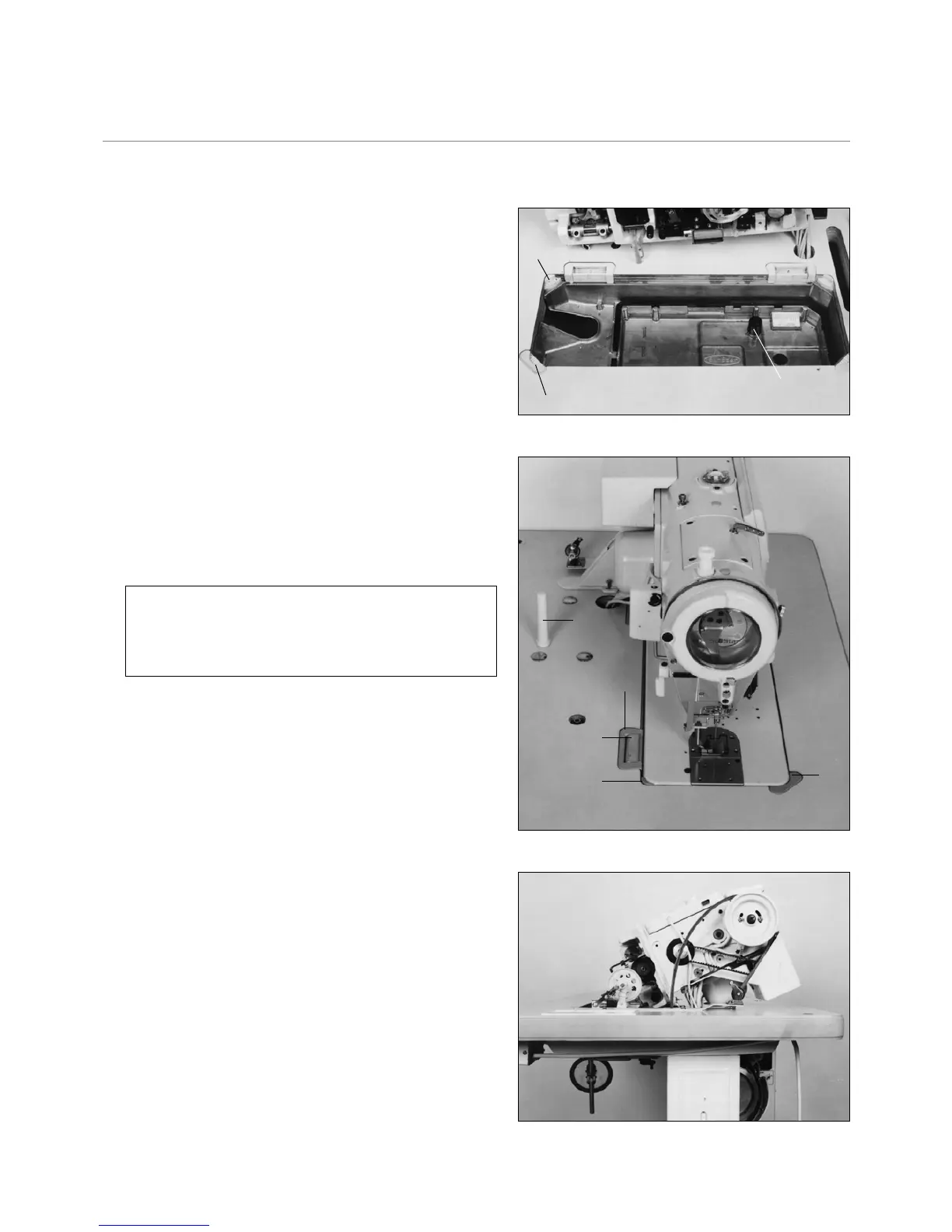

[ Fig. 2 ]
[ Fig. 3 ]
②
③
④
①
D. Drive Head Support Pole⑤ into table.
[ Note ]
· Drive head support pole ⑤ through into end of table firmly.
· Unless drive it into the end, when lay the head of sewing
machine, stability is not good and dangerous.
12
[ Fig. 4 ]
E. On condition that stood the machine as shown in the
figure, insert V belt between pulley and motor of the
machine.
②
⑤
①
④
③
