18
5

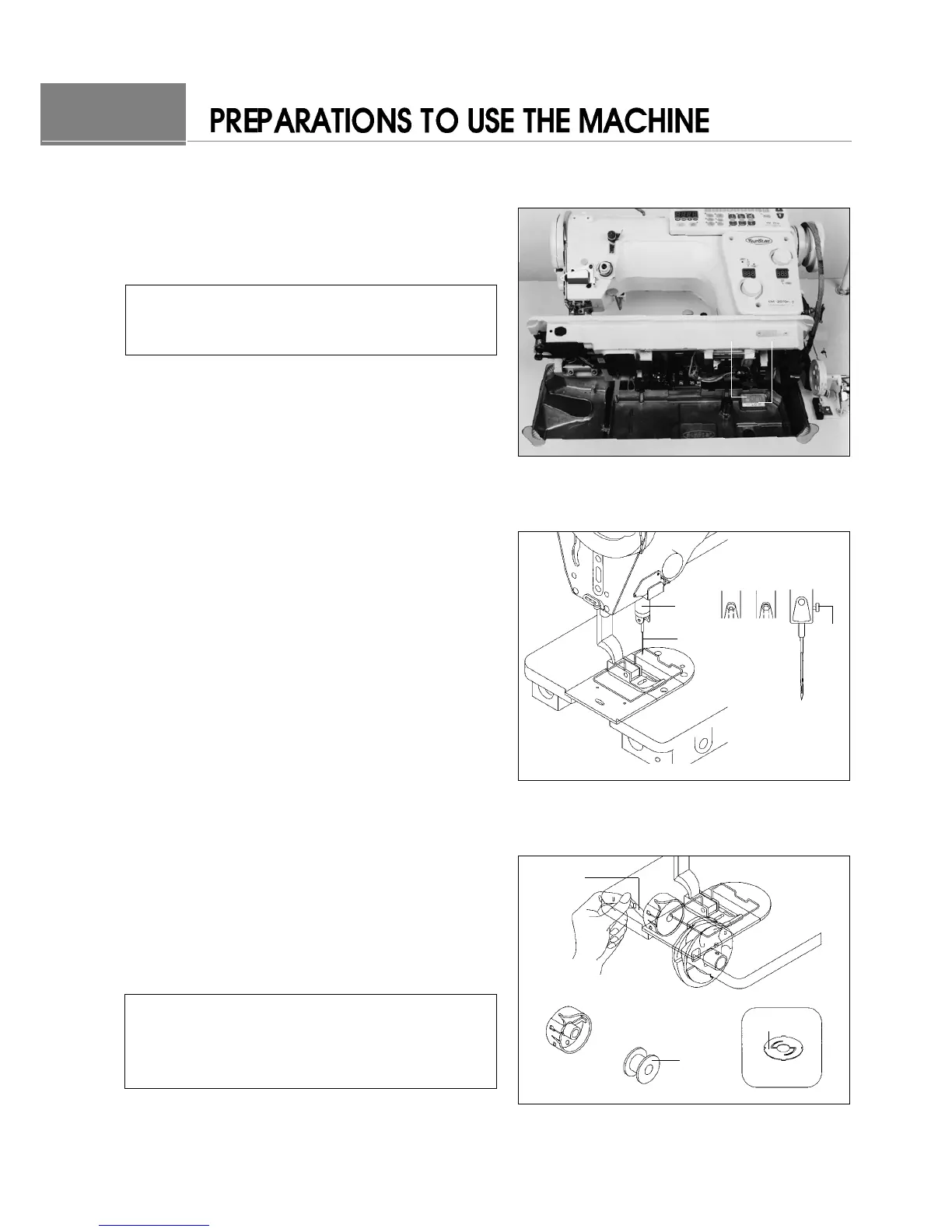

1) How to Fill Iubricating Oil
2) How to Set a Needle
A. Push the head backward.
B. Fill lubricating oil up to the line marked “HIGH”.
A. Place the needle bar① to the highest location by turning
the sewing machine pulley.
B. Unscrew the needle fixing screw②.
C. The long groove of needle③ turning to the front, insert it
until the top end of needle reaches to end of the insertion
hole of the needle bar and fasten the needle fixing screw
②tightly.
[ Note ]
Supply the oil immediately when it gets lower to the line
marked “LOW”.
[ Fig. 15 ]
3) How to Remove Bobbin Case
A. Raise the needle higher than needle plate by turning the
sewing machine pulley.
B. Remove the bobbin case by pulling out the guip ① of
case.
C. Detaching the handle①, bobbin② is detached.
[ Note ]
In case of thread trimming type, no-load operation
prevention spring②is attached in bobbin case in order
to prevent no-load operation of bobbin.
[ Fig. 16 ]
①
①
②
②
③
③
HIGH LOW
[ Fig. 14 ]
