19) Method of Setting the Starting Point
1) Select No.1 straight line pattern.
2) Set the forward and reverse stitch length of the Dial O/P at “0”.
3) Insert a piece of paper and check to see if the paper is being
pushed back and forth when manually turning the pulley.
KM-2070P B/T

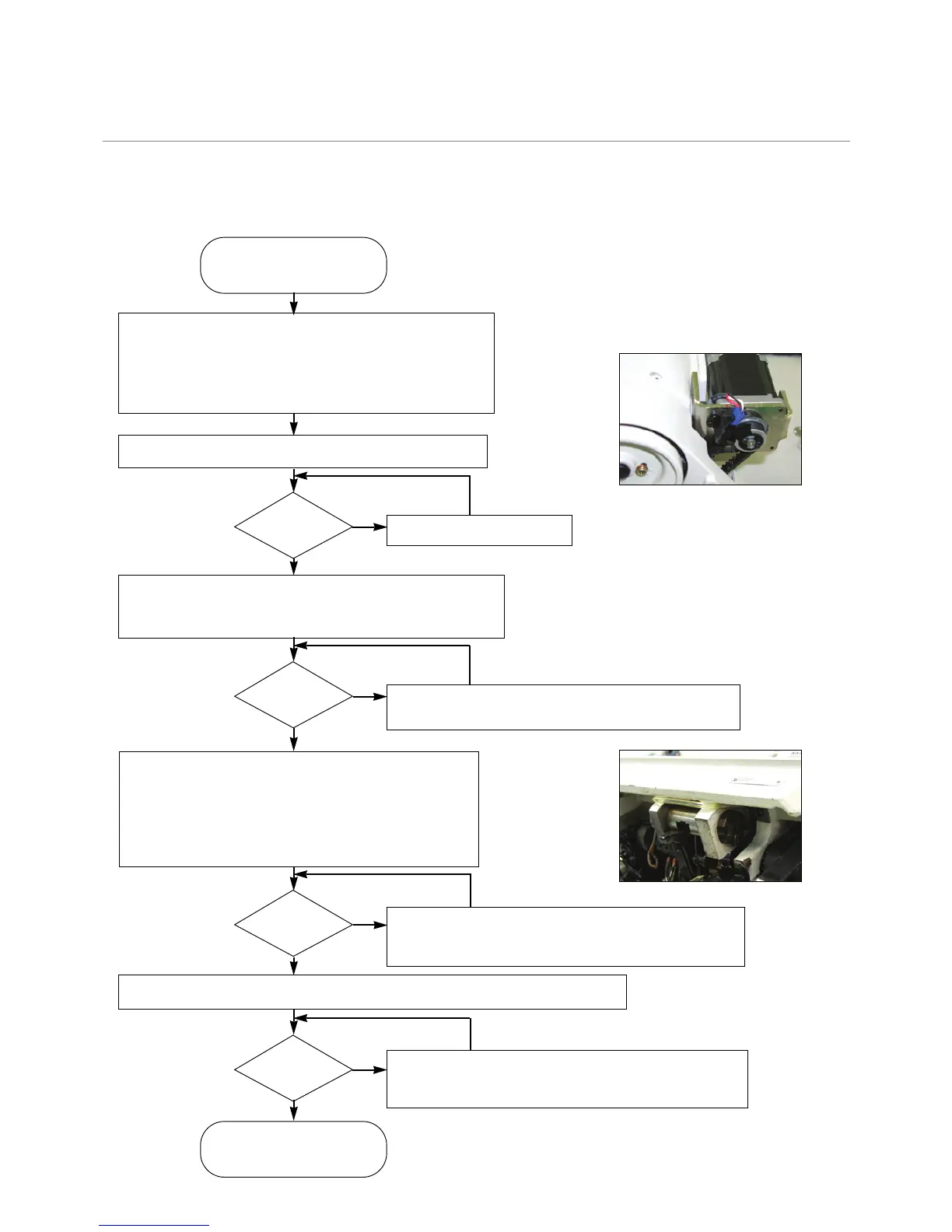

Starting Point
Setting Flow
The setup of the
KM-2070P B/T starting
point is completed.
As in the existing KM-2070P model, perform the setting of machine
and install the control box.
1) Install the B/T motor and starting point sensor.
2) Connect the B/T motor and the starting point sensor cable.
3) Install the Dial O/P and connect the cable to the digital B/D.
4) Adjust to make the starting point sensor film positioned at
the center of the sensor with the value of motion reading “0”.
Turn the power on. Check the right and left starting points of
the needle bar, and the front and back starting points of the B/T.
< To set at name stitch >
Value of the E-side : 99stitch
Value of the F-side : 0 stitch
Auto function is on
1) Insert the paper and press the pedal to start sewing (99 stitches
will be sewn).
2) Readjust the starting point sensor film position according to the
degree of paper being pushed.
Adjustment of the starting point
of the needle bar
YES
YES
YES
YES
NO
NO
NO
NO
1) Perform the basic adjustment by adjusting the starting point
sensor film position.
2) Set the starting point again by repressing No.1 pattern key.
1) Perform the minute adjustment by adjusting the eccentric pin
of the feed regulator.
2) Reset the starting point by pressing N0.1 pattern key.
3) Perform the sewing again.
1) Perform the minute adjustment by adjusting the eccentric pin
of the feed regulator.
2) Reset the starting point by pressing No.1 pattern key.
3) Perform the sewing again.
1) Select No.7 L-stitch pattern (set the vertical stitch at 4 and the horizontal stitch at 2)
2) Conduct the sewing test against the 10 basic expanded patterns.
Starting point
of the needle bar
(OK?)
Is the paper
being pushed back
and forth?
Is the paper
being pshed back
and forth?
Is the
sewing status
is good?
34
