8) Power Voltage and Power Code Connection
A. Voltage Specification
· Match the indication of voltage to specification of power code and connect the cable.
1. Must not use on condition that voltage specification is different.
2. In case of change the using voltage, refer to article [Power Voltage Changing Method].
· Single-phase connection (100V, 110V, 120V, 200V, 220V, 240V)
· Three-phase connection (200V, 220V, 240V, 380V, 440V)
B. Power Voltage Changing Method
· In voltage of 110V series, 220V series and 380~440V specification, you can change into the voltages as follows
by just changing the location of power voltage switching connector.
■ Voltage change of 100~220V specification
Trans former Model: KM-2070P-110
■ Voltage change of 220V specification
Trans former Model: KM-2070P-220
If power voltage switching connector is wrongfully set, control box can be damaged.
In case that changes voltages between the phases 110V series and 220V series and 380V~440V
series transformer should replace.
Input Voltage
95V~105V
106V~115V
116V~125V
JP3
JP4
JP5
Location of Power Voltage
Switching Connector
Input Voltage
190V~210V
211V~230V
231V~250V
JP1
JP2
JP3
Location of Power Voltage
Switching Connector
■ Voltage change of 380~440V specification
Trans former Model: KM-2070P-440
Input Voltage
345V~415V
416V~480V
JP4
JP5
Location of Power Voltage
Switching Connector
Note

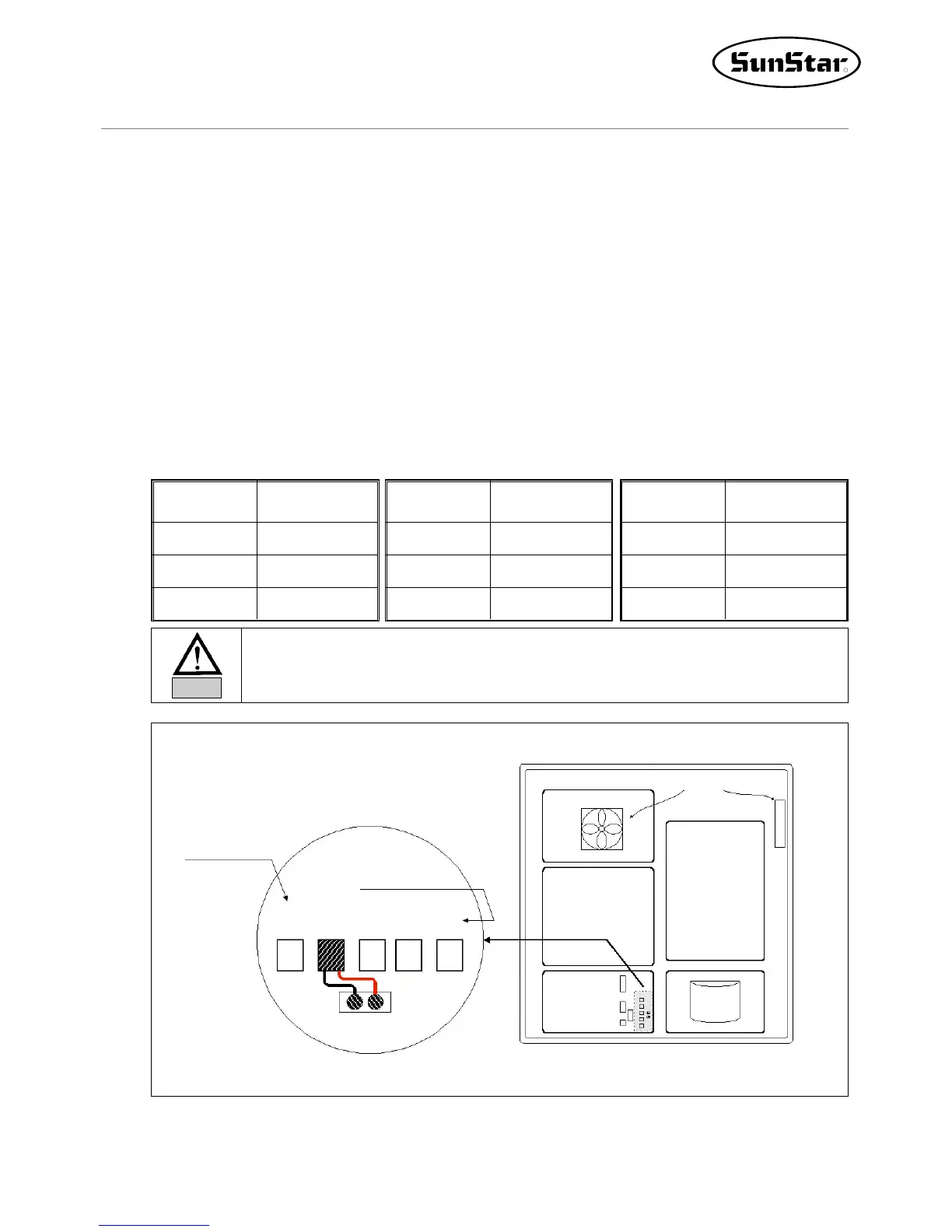

[ Power Voltage Switching Connector Setting ]
[ Fig. 11 ]
In case that input
power is over 220V
In case that input
power is 110V series
Power Voltage
Switching Connector
Step Motor Driving Board
KM-2070P Machine Control Box
Cooling Fan
Digital Board
Power Board
Transformer
Servo Motor Driving
Board
200V 220V 240V 380V 440V
100V 110V 120V
▼JP1 ▼JP2
P4
▼JP3 ▼JP4 ▼JP5
To Next Page
