17) Gauge Parts
18) Adjustment of the Device for Rasing Presser
Foot Minutely.
In case of using presser foot, needle plate, and feed dog for other except 8mm of width, when operating the sewing
machine, needle can contact to needle plate or needle can be broken. Hence, limit width as follows and exchange
needle bar stopper.
※ Needle bar stopper for other 8mm can be mounted as standard parts according to specification. In such case,
check the parts by L size.

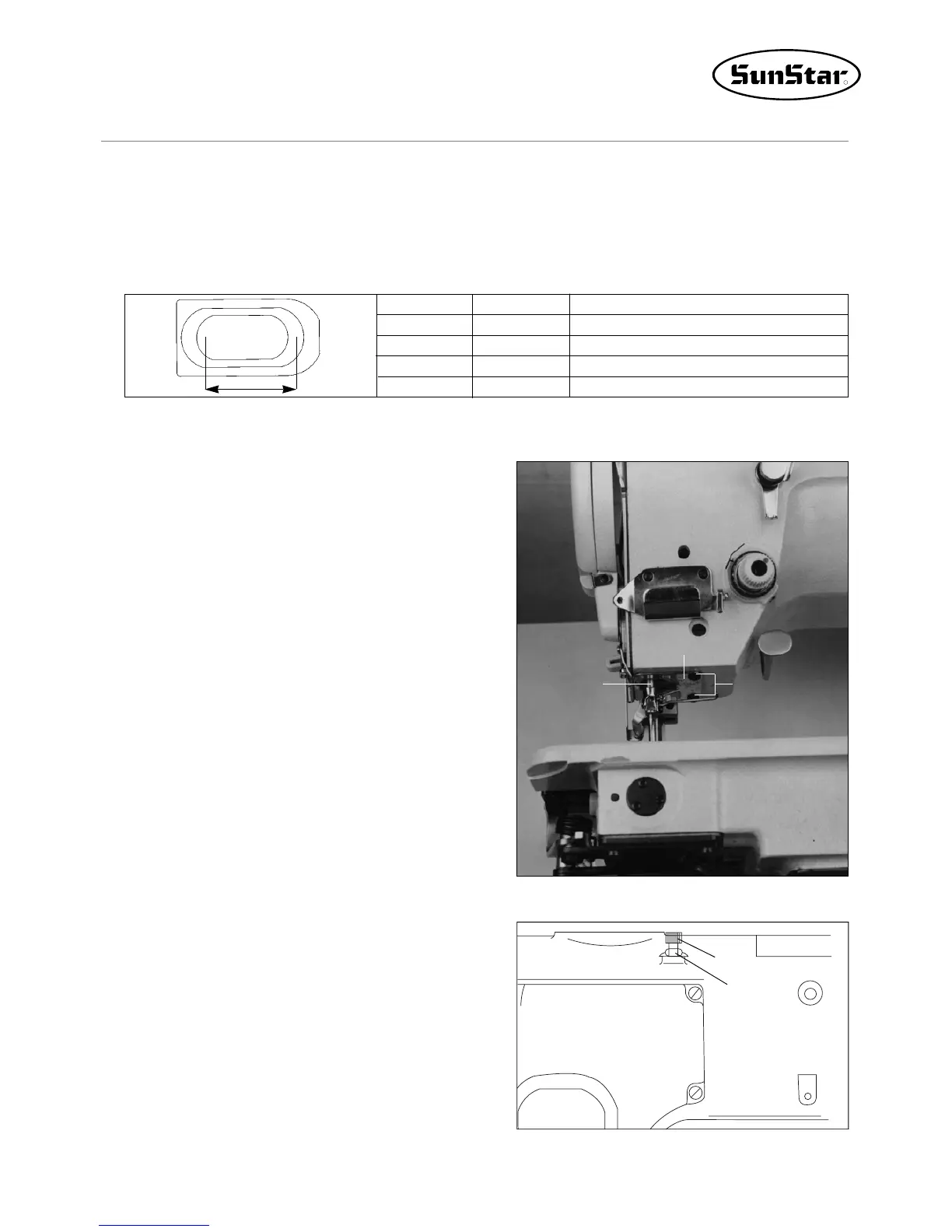

[ Fig. 45 ]
■ Replacing Method of Needle Bar Stopper
· In case of using presser foot and needle plate (option
parts) for 10, 8,5, and 3mm of width, exchange the
needle bar stopper for 10,8,5 and 3mm.
A. Remove needle bar stopper② by unscrewing the
fixing screw① (2 pieces).
B. Attach needle bar stopper③ inserted into needle bar
stopper plate②.
C. Attach needle bar stopper plate② to head part of
sewing machine and fasten fixing screw① tightly.
D. Turn on the power.
E. Set the width to the maximum width of gauge.
F. Confirm that needle hole of needle and each gauge
part, and needle bar and needle bar stopper③ do not
contact by turning the sewing machine pulley by
hands.
A. Take down the presser foot.
B. Unfasten the nut① in back side of sewing machine.
C. Adjust the proper presser of wroking fabric and presse
foot by twiming the screw②.
D. Fasten the nut① tightly.
