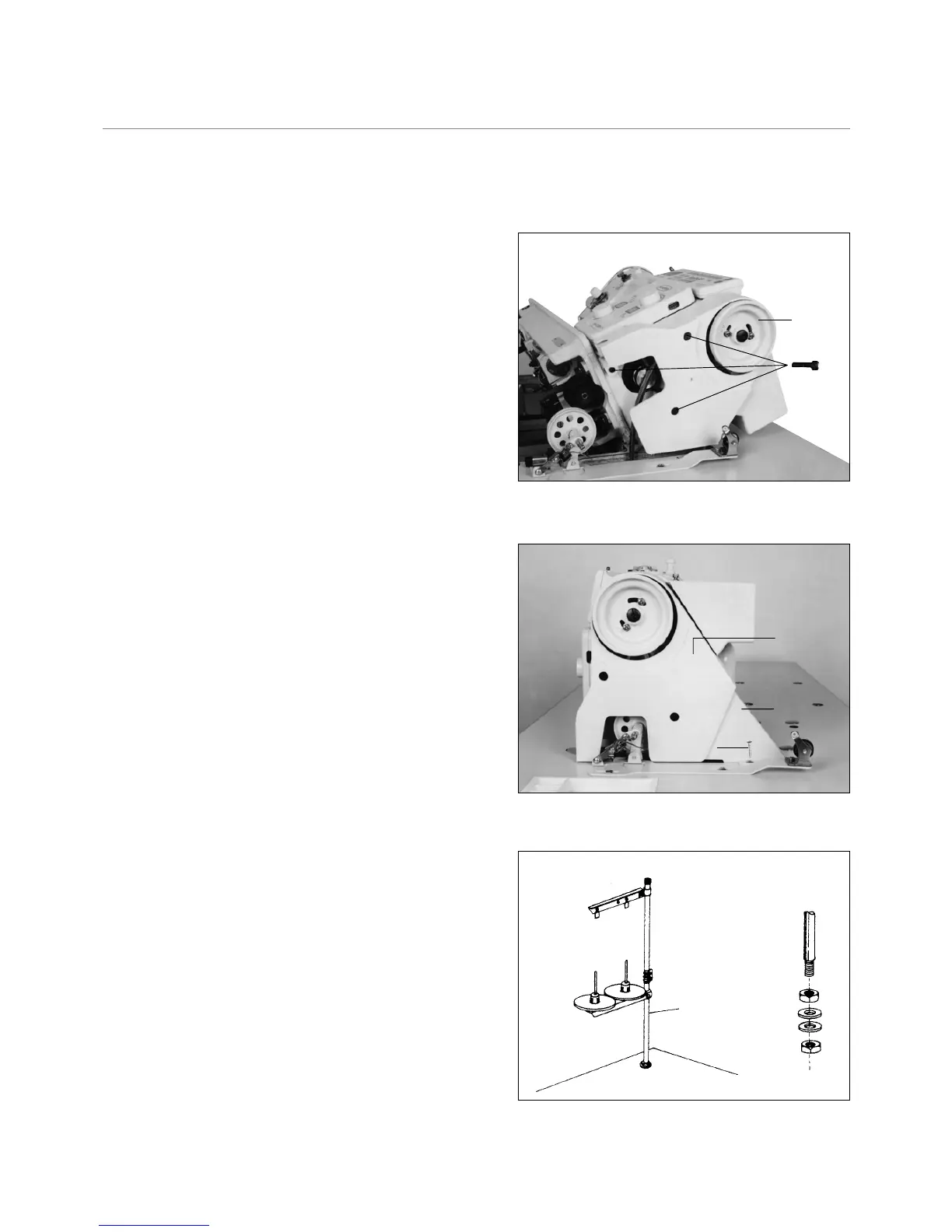

[ Fig. 8 ]
A.
After inserting belt cover A
①
into sewing machine pulley
and attach with joint screw
③
(three screws).
6) Belt Cover Installation
[ Fig. 9 ]
B
.
Fasten the tapping screw
⑤
(two) keeping belt cover
C
④
not to contact to belt cover A
①
.
7)
Thread Stand Installation
Install the thread stand on the table.
[ Fig. 10 ]
14
②
①
④
⑤
13
15
Table of Contents
Table of Contents
3
Machine Sefety Regulations
5
Machine Specifications
8
Machine Configuration
9
Part Name of Machine
9
Internal Structure of Control Box
10
Machine Installation
11
Environment for Machine Installation
11
Electric Installation Environment
11
Safe Table Mounting of Machine
11
Installation of Presser Foot Lifter Pad
13
Adjustment of Presser Foot Lifter (Group) Pad
13
Belt Cover Installation
14
Thread Stand Installation
14
Power Voltage and Power Code Connection
15
Cable Connection to Control Box
16
Exchanging the Fuse
17
Head Earth Connection
17
Preparations to Use the Machine
18
How to Fill Lubricating Oil
18
How to Set a Needle
18
How to Remove Bobbin Case
18
Bobbin Case Attachment Method
19
How to Wind Lower Thread
19
Upper Thread Passing Method
20
Adjusting of Stitch Number
20
Sewing Method
21
Machine Repairing Method
22
Thread Tension Adjustment
22
Presser Foot Pressure Adjustment
23
Presser Foot Height Adjustment
23
Feed Dog Height Adjustment
24
Feed Dog Slope Regulation
24
Feed Dog Front and Back Adjustment
25
Needle and Transfer Timing
25
Needle Bar Height Adjustment
26
Needle and Hook Timing
27
Location Adjustment of Hook Holder
27
Synchronizer Adjustment
28
Lubrication Adjustment for Hook
29
Adjustment of Upper Thread Remainder after Thread Cutting
29
Location Adjustment of Thread Cutting Cam
31
Tension Adjustment of Lower Thread Presser
32
Exchange of Fixed Mess and Moving Mess
32
Gauge Parts
33
Adjustment of the Device for Rasing Presser Foot Minutely
33
Method of Setting the Starting Point
34
Maintenance
35
In Case of Using Feed Dog Except Sunstar' S One
36
Failure Causes and Countermeasures
