4
④
④
③
②
①
1) Environment for Machine Installation
A. In order to use safety, use in the environment as follows:
Ambient Temperature for machine operation: 5°~40°C(32°~104°F)
Ambient Temperature for machine reservation: -10°~60°C(14°~140°F)
B. Humidity: within 45~80% (Relative Humidity)
C. Altitude: Up to 1000m above mean sea level.
2) Electric Installation Environment
A. Power Voltage
·Use the power voltage within 10% of the rated voltage.
·It is desirable to use frequency of power within 1% of the rated frequency (50/60Hz)
B. Electromagnetic wave Noise
·It is desirable to use the power separated from the strong magnetic field and high frequency product and keep
away from them.
C. In case of attaching additional device and accessories to control box, must safe low voltage.
D. Pay attention that water; coffee and other should not enter into control box and motor.
E. Do not drop control box and motor.
3) Safe Table Mounting of Machine

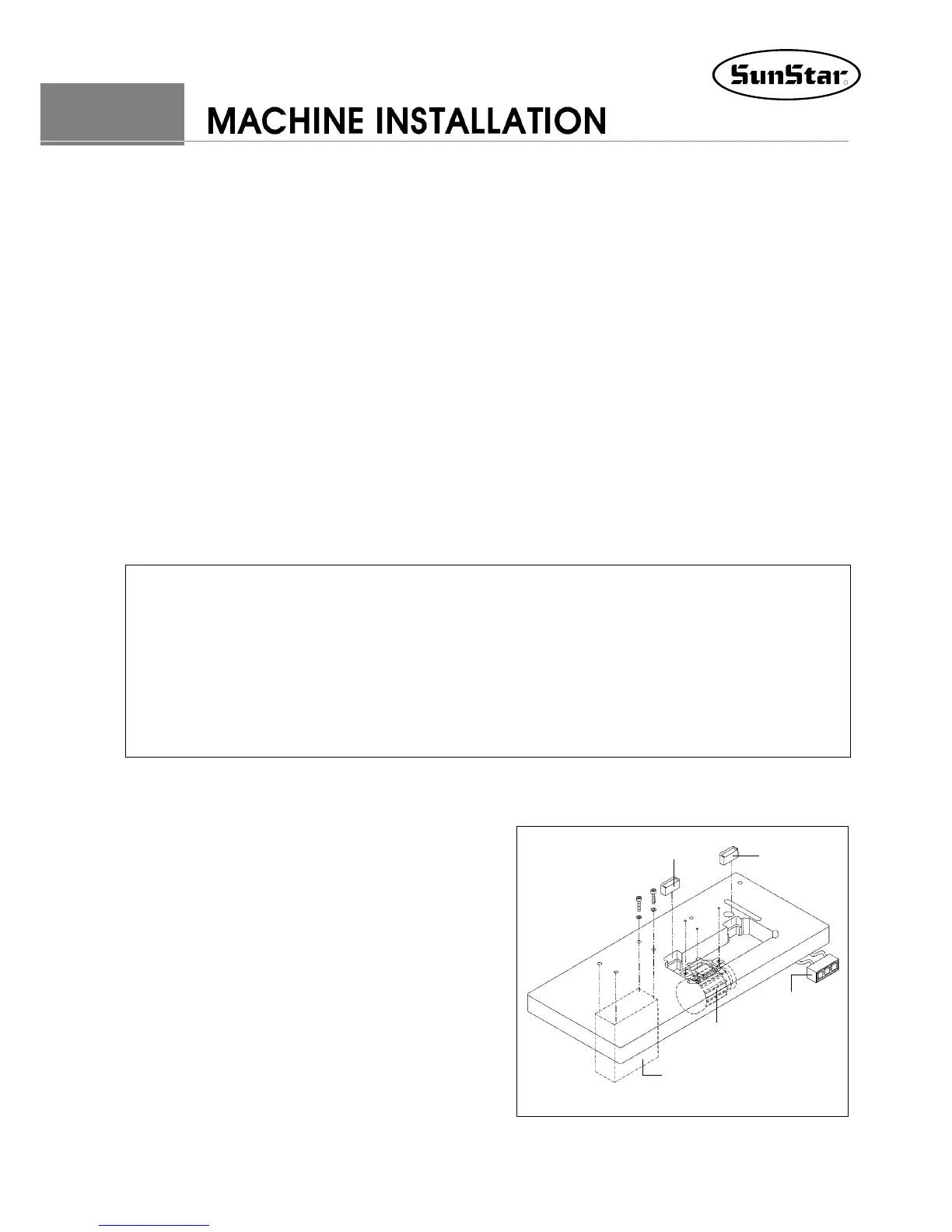

A. Please fix control box ①, power switch ②, motor ③,
and hinge rubber ④ to the table.
[ Fig. 1]
[ Note ]
· Install the machine by trained technician.
· Ask electric wiring to the electric engineer of the purchased selling agent.
· Weight of the sewing machine is over 40kg. Please install it by more than two personnel.
· Do not connect power plug until installation is completed.
Accidentally stepping on the pedal, the sewing machine gets operating and causes injury.
· Execute earth connection. In case that earth connection is no stable, it becomes the cause of electric shock or
wrong operation.
· Put the belt cover on the head and motor of the sewing machine.
To Next Page
