30

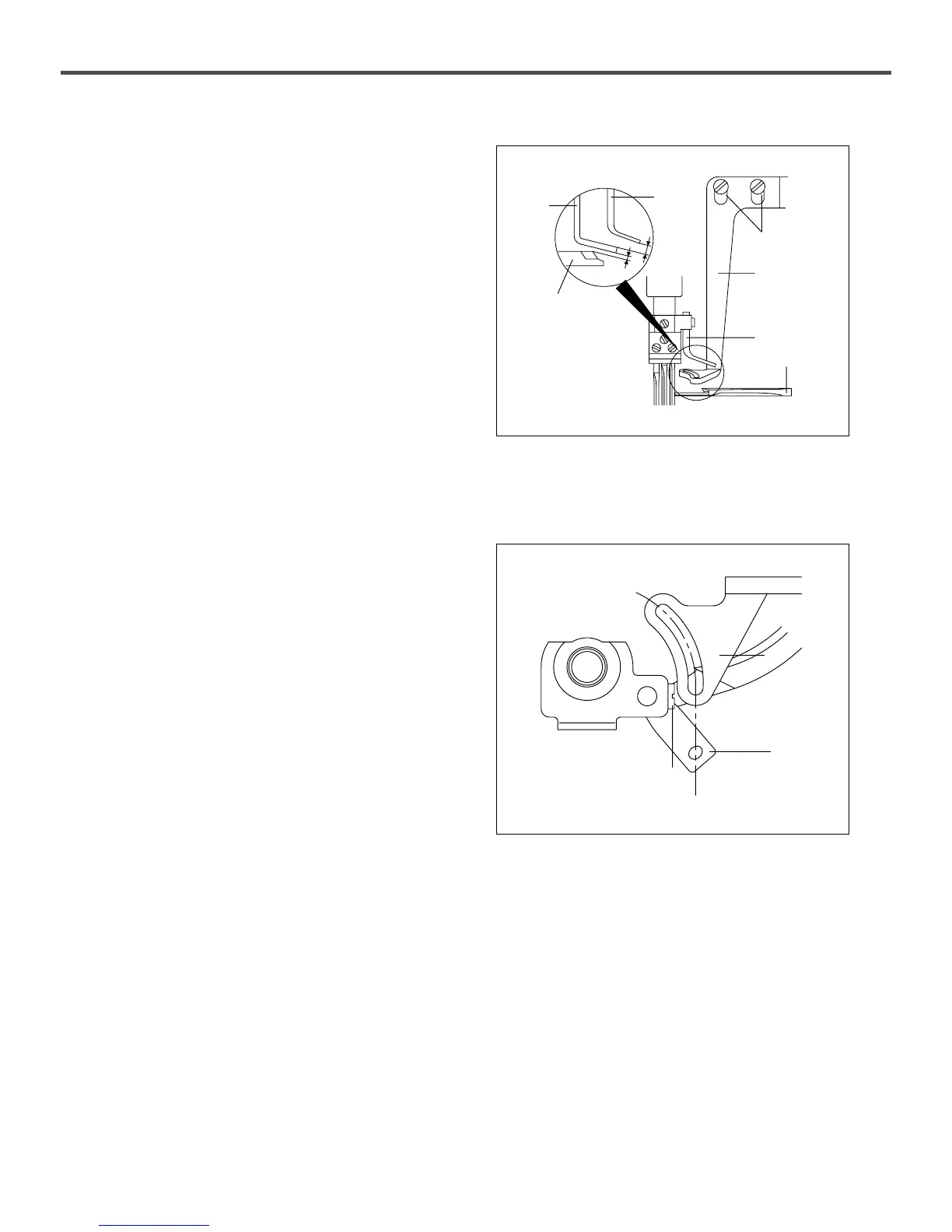

⑵ Fixing of top cover thread guide
The clearance between the lower side of the top cover
thread guide④ to the upper side of the spreader① is
0.5mm.
Fix the screw⑤ when the spreader is at its far right, in
order to hook the thread well onto the thread hooking
part.
[ Figure 56 ]
⑶ Fixing of the top cover thread eyelet
When the needle bar is located at the lowest position,
adjust the front face of the top cover thread guide④ and
the thread hole of the top cover thread eyelet⑥ to be at
the central line of the top cover thread guide④ slot and
fasten the screw⑦.
※ Adjust (1), (2) and (3), depending on the type of
thread used.
[ Figure 57 ]
④
④
⑦
⑥
⑥
⑥
④
①
①
0.5mm
1.0mm
⑤
