13

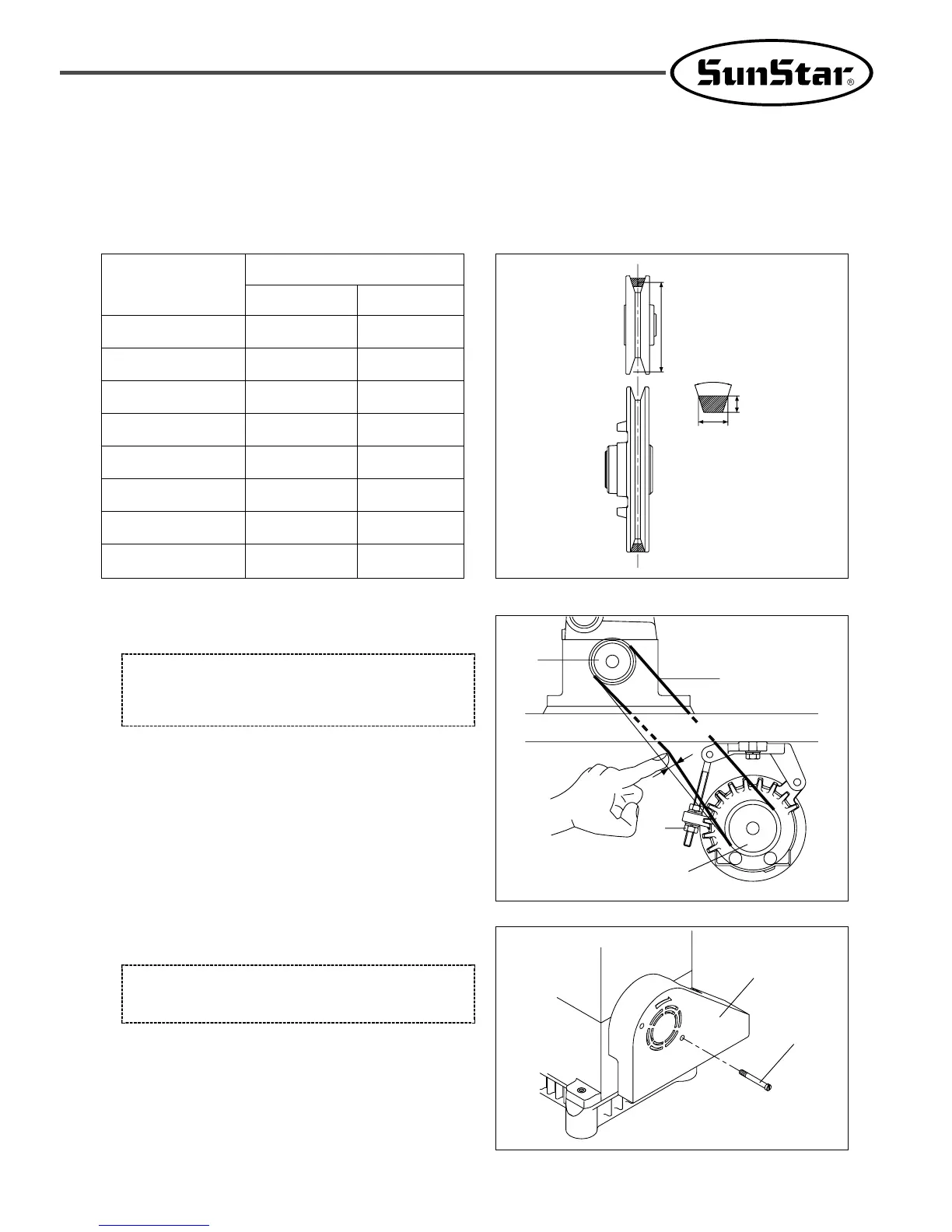

2) Installation of motor and belt
Use a 3-Phase, 2-Pole, 550W(3/4 HP) clutch motor and M-type V-belt for the machine.
Start the pedal. When the motor pulley begins to move to the left, adjust the position of the motor so that the centers of the
motor pulley and the M/C pulley meet with each other.
※ The diameter of pulleys in the market is generally set with a 5 mm clearance.
75
80
85
90
100
110
120
130
s.p.m of machine
50Hz 60Hz
3,200 3,900
3,400 4,100
3,600 4,400
3,900 4,700
4,300 5,200
4,700 5,700
5,100 6,200
5,500 6,700
[ Figure 5 ]
5.5mm
61mm
10mm
40。
Diameter. of Motor
Pulley(mm)
3) Adjustment of belt tension
[ Warning ]
Be sure to turn the power switch off before adjusting belt
tension.
Turn the screw④ of the motor③ around. Adjust the belt ①
to go in approximately 10~20mm when its center portion is
pushed with a finger. (Refer to figure 6)
[ Figure 6 ]
①
④
③
②
10~20mm
4) Attachment of Belt Cover
[ Warning ]
Always install the belt cover for safety.
Fasten the belt cover (upper)① with a screw② as shown in
figure 7.
[ Figure 7 ]
①
②
