33

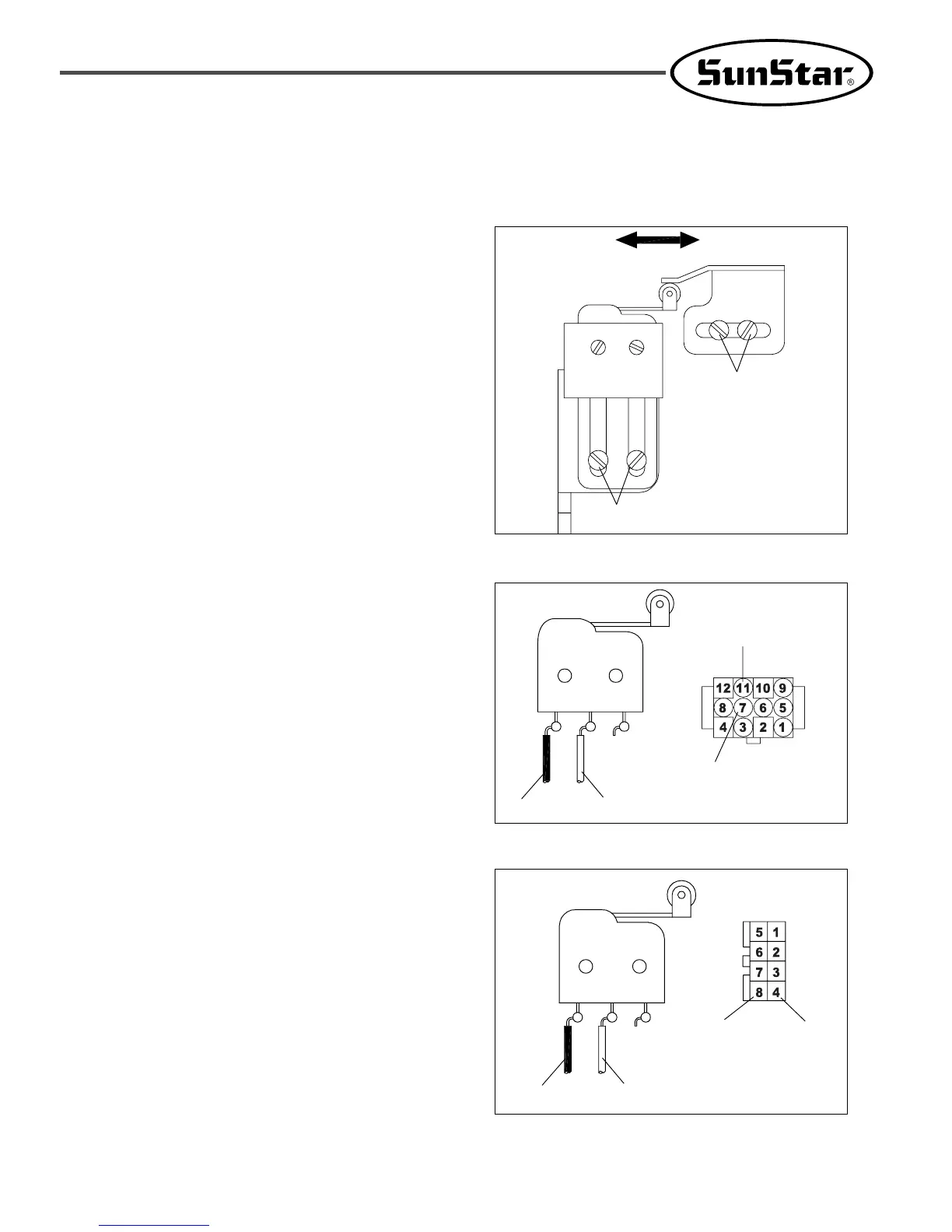

A. Adjusting limit switch
a. Loosen screws ① and ②.
b. When trimming blade returns to its original
position, adjust so that the switch is turned on.
c. Fix screws ① and ②.
2) Wiring
(1) Limit switch
[ Figure 60 ]
①
②
B. Connecting limit switch
a. General Servo motor A (Fortuna Ⅲ)
Link the limit switch cord to the 12P-connector as
follows.
[ Figure 61 ]
White
WhiteBlack
Black
Switch and lamp connector
WhiteBlack
Switch and lamp connector
b. Small motor A (Fortuna Ⅳ)
Link the limit switch cord to 8P-connector as
follows.
[ Figure 62 ]
White Black
