[ Warning ]
Before adjustments, always turn off the motor switch and check to make sure that the motor is in stop mode.
A. Loosen the screw ⑬ of the thread pull-off eccentric cam ⑫.
B. Turn ⑫ to position the tension disc separator ⑭ so that the tension disc separator opens as fast as possible.
C. Loosen the screw ⒕ to set a clearance of 35mm between the top of the thread pull-off bar ⑮ and the top of the
guide for thread pull-off bar ⒃.
D. With the screw ⒕, fix the thread pull-off bar ⑮ onto the thread pull-off bar holder ⒔.
E. Loosen the screw ⒗.
F. Set a clearance of 4.0mm between the collar for thread pull-off bar ⒖ and the guide for thread pull-off bar ⒃.
G. Fasten the screw ⒗.
(4) Tension disc separator

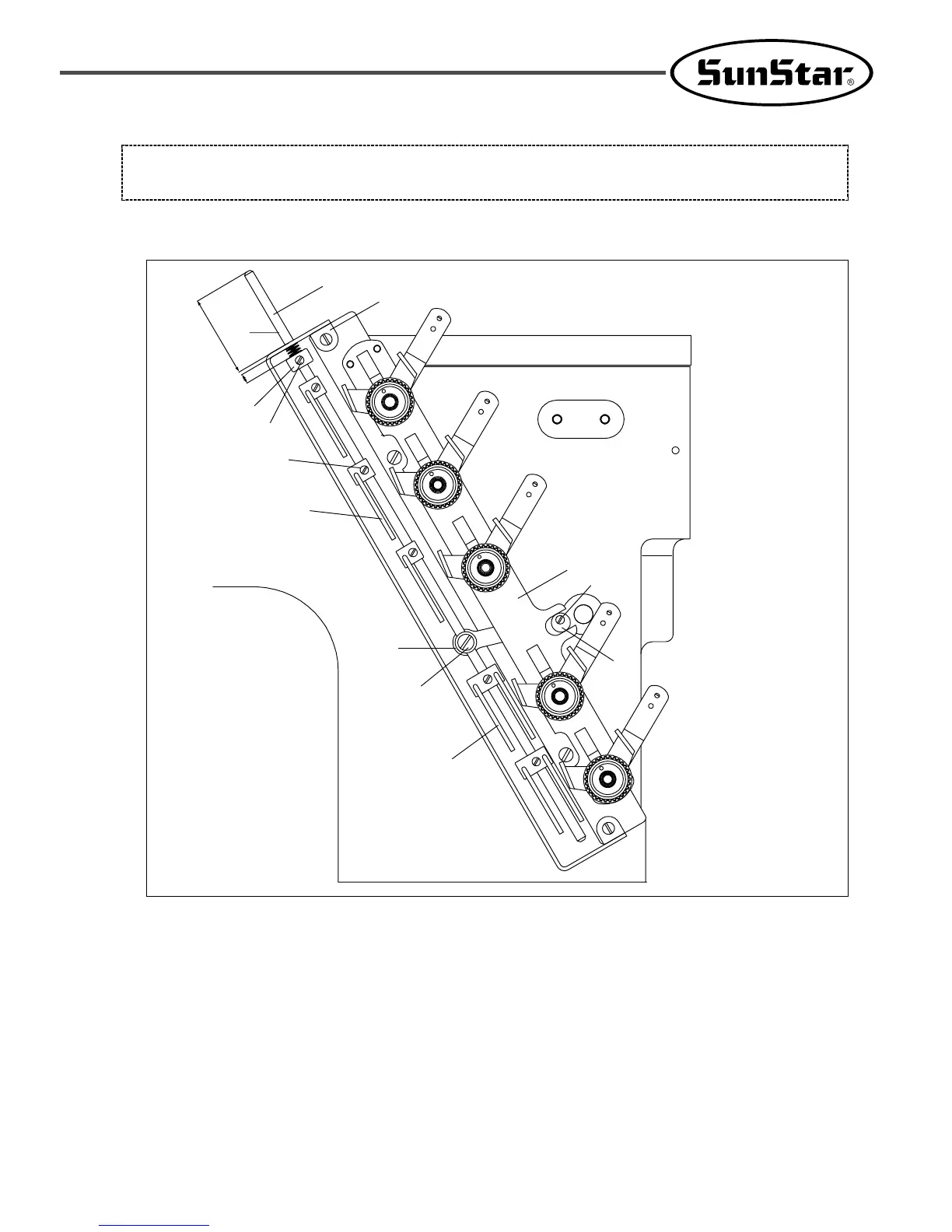

[ Figure 90 ]
⑮
⒃
⑭
⑬
⑫
⒖
⒗
⒔
⒕
35mm
4mm
