18

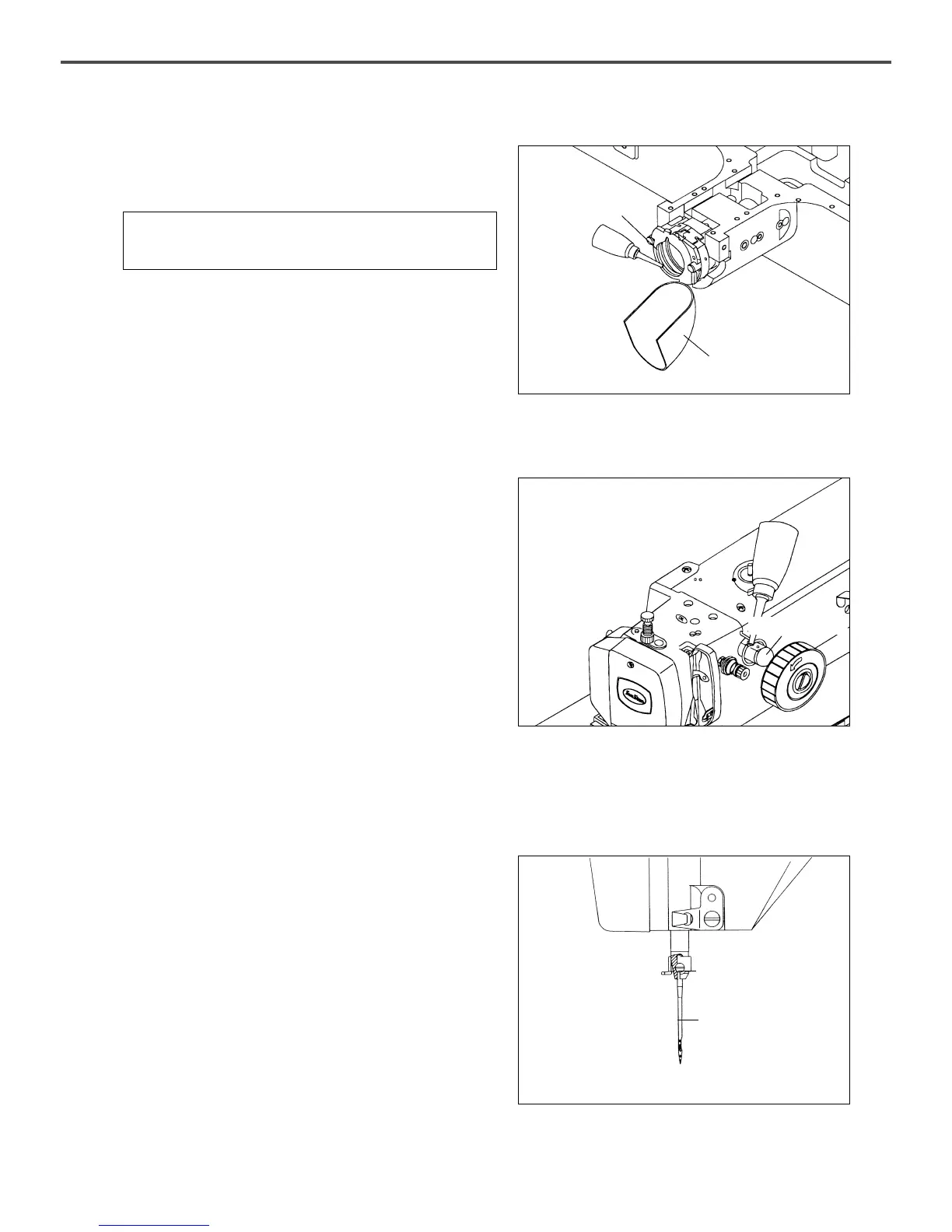

[ Fig. 12 ]
Sillicon Oil Tank
D. Open the hook cover and supply oil till the shuttle
race ring is surrounded by oil. Put the hook cover
back on after finishing.
E. Supply silicon oil into the silicon oil tank which is
installed on the right side of the arm.
[ Fig. 11 ]
Shuttle Race Ring
Hook Cover
[ Caution ]
For safety, keep the hook cover covered during operating.
3) How to Install the Needle Bar
Unfasten the needle fixing screw on the needle bar.
Then, with the needle groove facing forward, push the
needle until the upper end touches the needle hole of the
needle bar. Fix the needle in with the needle fixing screw.
[ Fig. 13 ]
Screw
Needle
To Next Page
