B, How to set the Y-shaft origin
ⓐ Separate the set the X-shaft origin.
ⓑ Move the center of upper feed plate to be located the center in the direction of X shaft.
ⓒ As seen in the below figure, release the 2 fastening screws ① of Y transfer shaft sensor linking plate and confirn
if the Y-sensor transfer plate and sensor works independently, then the fixing screws ①.
ⓓ Adjust the Y direction origin with the fixing screws ② of Y-transfer shaft sensor fixing plate.
①
Y Transfer
Shaft Sensor
Linking Plate
Y Sensor Transfer
Plate
Y Limit Sensor
Y Origin Sensor
Fixing Plate of Y
Transfer Shaft Sensor

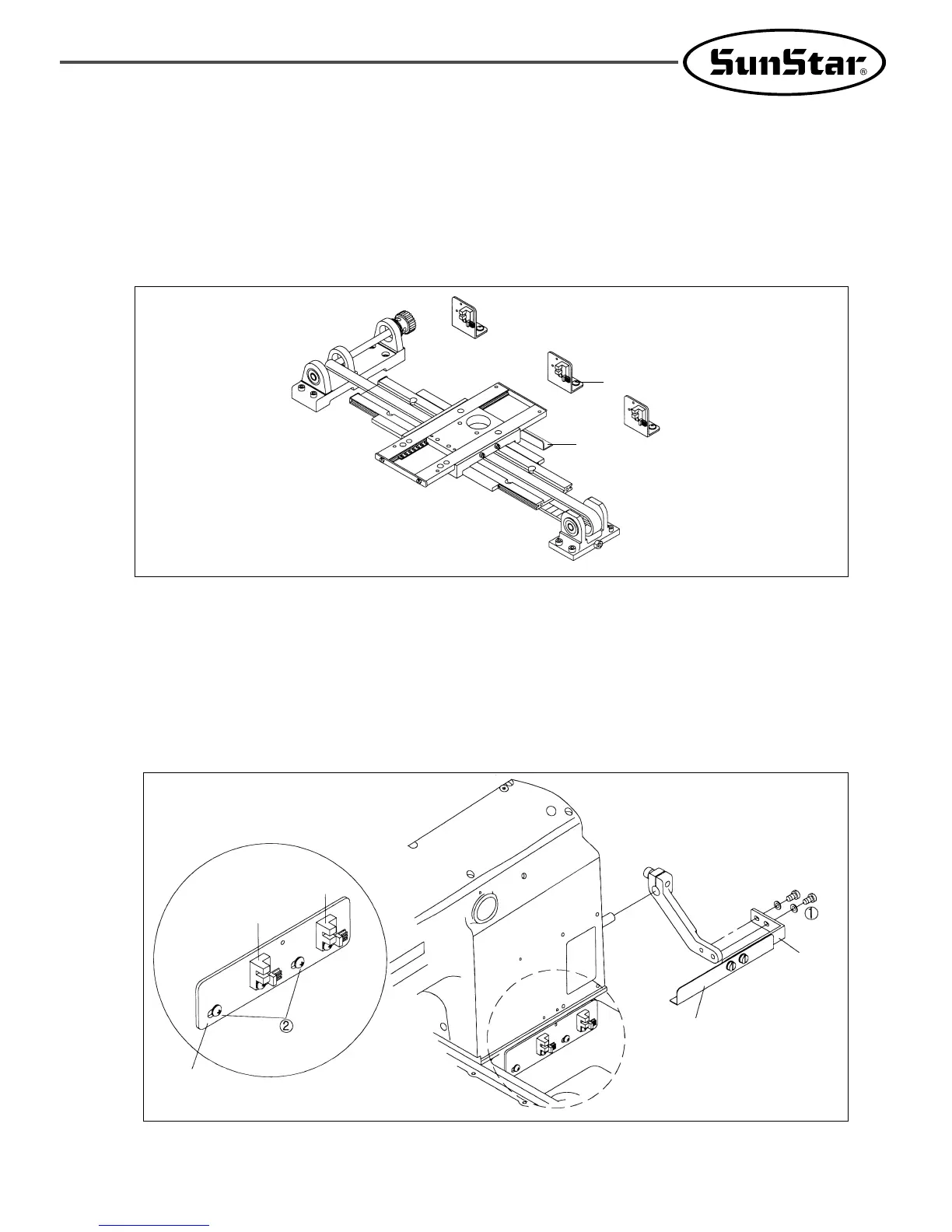

[ Fig. 65 ]
23) Setting the X-Y Origin
A. How to set the X-shaft origin
ⓐ Separate the under feed plate from X-fixing cover and transfer cover.
ⓑ Move the center of upper feed plate to be located the center in the direction of X shaft.
ⓒ As seen in the below figure, release the 2 fastening screws ① of X shaft origin sensor bracket and make the X-
sensor plate that is adhered to X-Y transfer devices locate the center of sensor, then fasten the screws with (+)
driver.
[ Fig. 64 ]
①
X-Origin Sensor Bracket
X Sensor Plate
To Next Page
