31

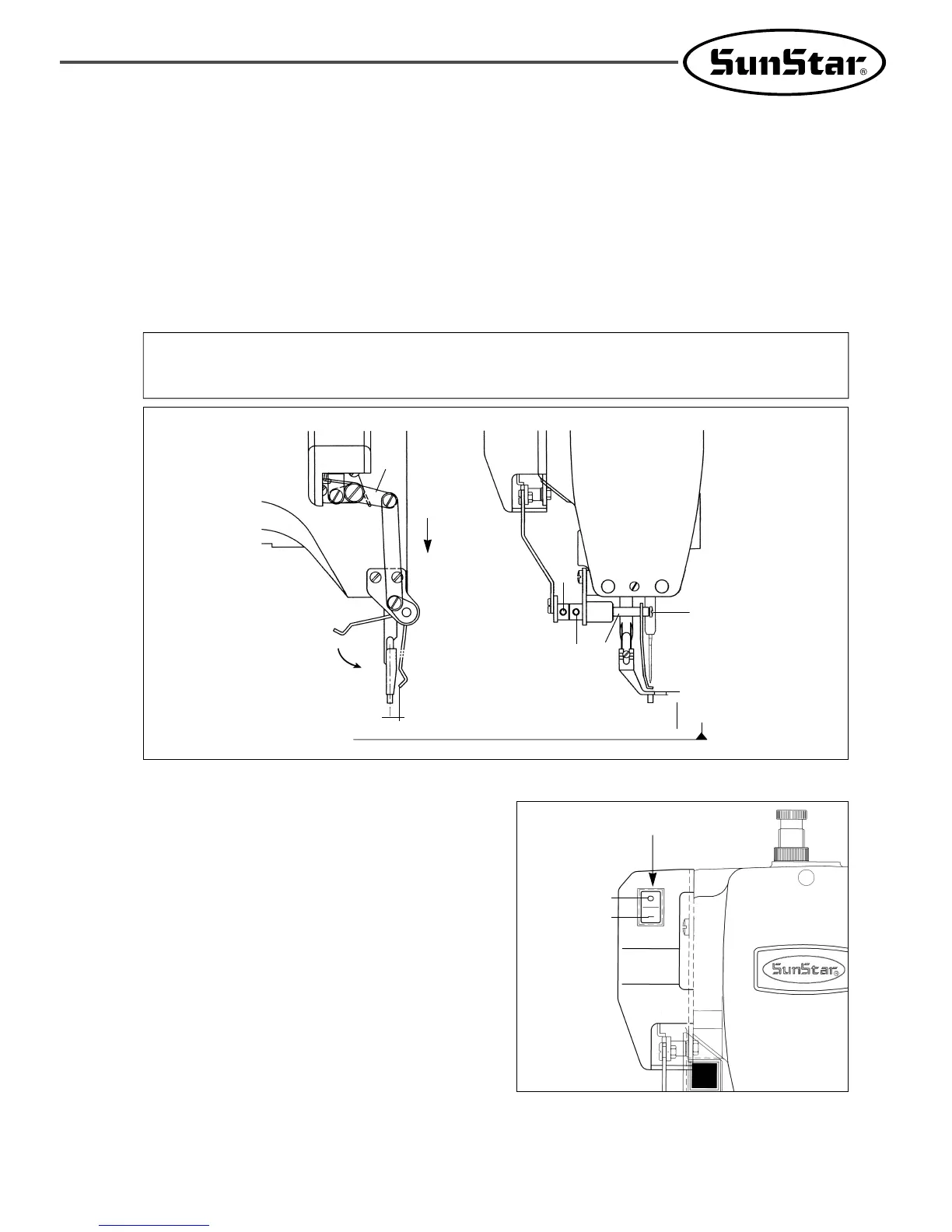

9) Adjusting Accessories for the Wiper
A. Adjusting the wiper position
ⓐ Unfasten the wiper rotary shaft collar screw ① and the wiper crank screw ② when the needle tip is 19.5mm
above the throat plate.
ⓑ Press the wiper rocking link ③, then adjust the wiper shaft ④ so the wiper and the needle is about 10mm apart
from each other.
ⓒ Tighten the wiper rotary shaft collar screw ① and the wiper crank screw ②.
ⓓ Unfasten the wiper screw ⑤ and adjust the wiper so that the end of the wiper is about 1mm apart from the
needle end. Then, tighten the screw back on firmly.
B. Wiper operating switch
If you want to use the wiper, press the wiper operating
switch ─, if you don’t, presser the press the wiper
operating switch
O
.
[ Fig. 40 ]
[ Fig. 41 ]
[ Caution ]
If the wiper is not placed in the right position, the wiper may collide with the presser foot or needle during the
operation, and the wiper may not move properly.
③
②
①
⑤
Needle Plate
Wiper Off
Wiper On
Wiper On/Off Switch
→
→
Push
10mm
1mm
19.5mm
→
→
→
→
④
To Next Page
