PREPARATION BEFORE OPERATING THE MACHINE
1) Setting the Voltage

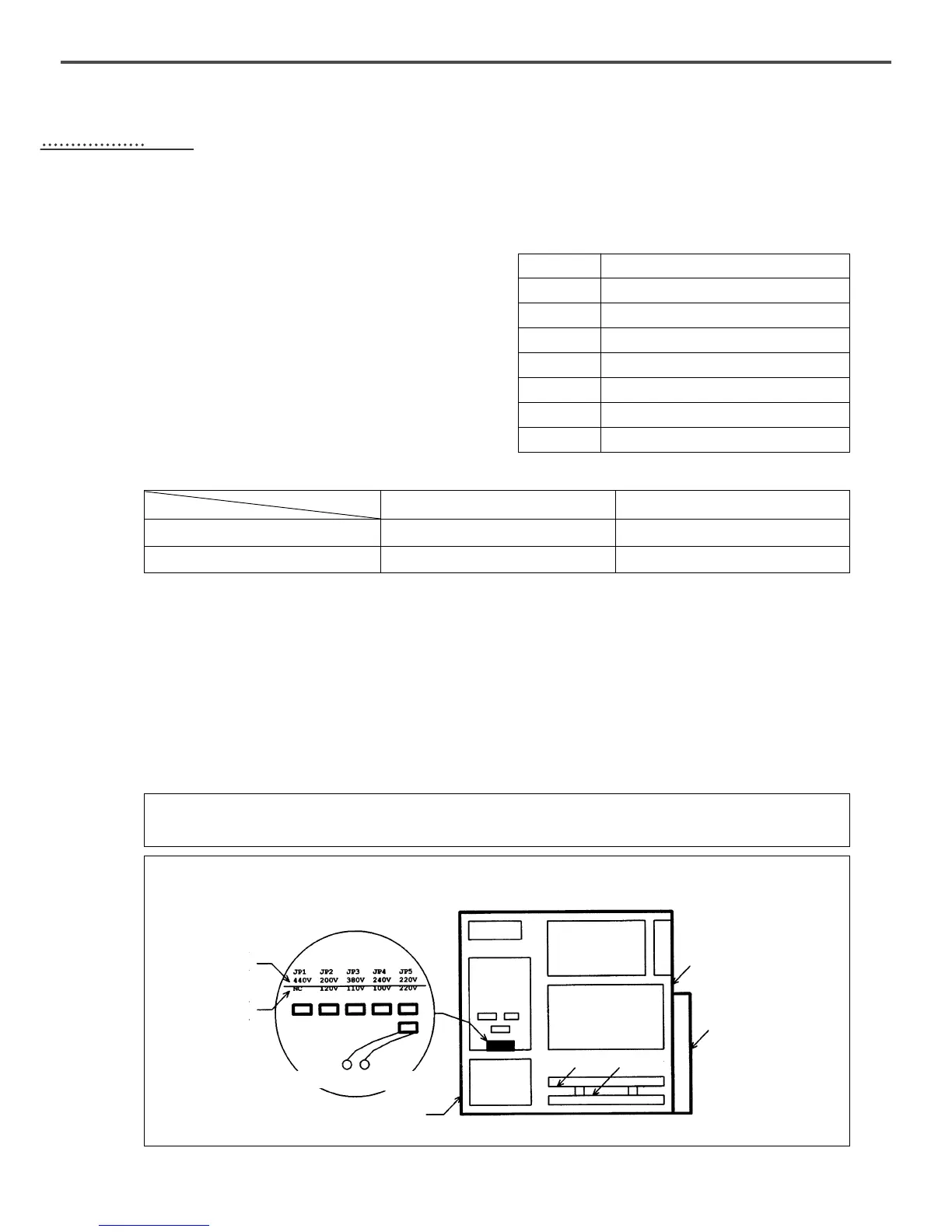

A. If a cover of electronically controlled pattern sewing
machine is taken off, inside contents are as same as
[ Fig. 1 ].
B. Confirm the position of change connector of power
voltage on power board [Refer Fig. 1] and transformer
if they are properly selected for input voltage like
Table 1 and 2.
EX ) If power voltage is 220 V:
The model of used transformer is “SPS--
220”and it is normal for the change connector of
power voltage to be placed on “JP5”.
※ Sticker for transformer model is attached to the top
side of transformer.
C. Check if a power switch is for 1 phase and 3 phase.
D. If the setting of ② and ③ is not proper, damage from breakdown can be occurred. If there is any problem,
follow below direction.
ⓐ If the position of change connector is wrongly placed :
① Separate the connector linked to transformer from CN7, CN8 and CN9 of power borad.
② Insert the power change connector into a proper position on Table 1.
③ Reconnect the connector linked to transformer to CN7, C8 and CN9 of power board.
ⓑ If the specification of used transformer is not in a accord with that of power switch, ask to the place where
you purchased for troubleshooting.
[ Table 1. Position of change connector of voltage ]
[ Table 2. Modle of used transformer according to the input power voltage ]
[ setting of change connector of power voltage ]
[ Fig. 7 ]
Input Voltage
95V~105V
106V~115V
116V~125V
200V~230V
231V~245V
345V~415V
416V~480V
Position of Change Connector of Power Voltage
JP4
JP3
JP2
JP5
JP4
JP3
JP1
100V~120V
220V~440V
Power Voltage
SPS/B(A)-1306(1507,1310)-X X - X X
″SPS-1306-110″
″SPS-1306-220″
SPS/B(A)-1811(2211)-X X - X X
″SPS-1811-110″
″SPS-1811-220″
Model
[ Caution ]
Before turning on the power switch, air should be filled with.
If an Input Power
voltage is Over 220V
If an Input Power
Voltage is 110V
Change Connector of Power Voltage
Front-Side Cover
Floppy
Disk Drive
Power Board
Step Motor
Drive Board
Main Shaft
Motor Drive Board
Back-Side Cover
Back-Side Cable Cover
I/O Board
CPU Board
CN7
CN8
CN9
Transformer
Caution 1)
To Next Page
