15

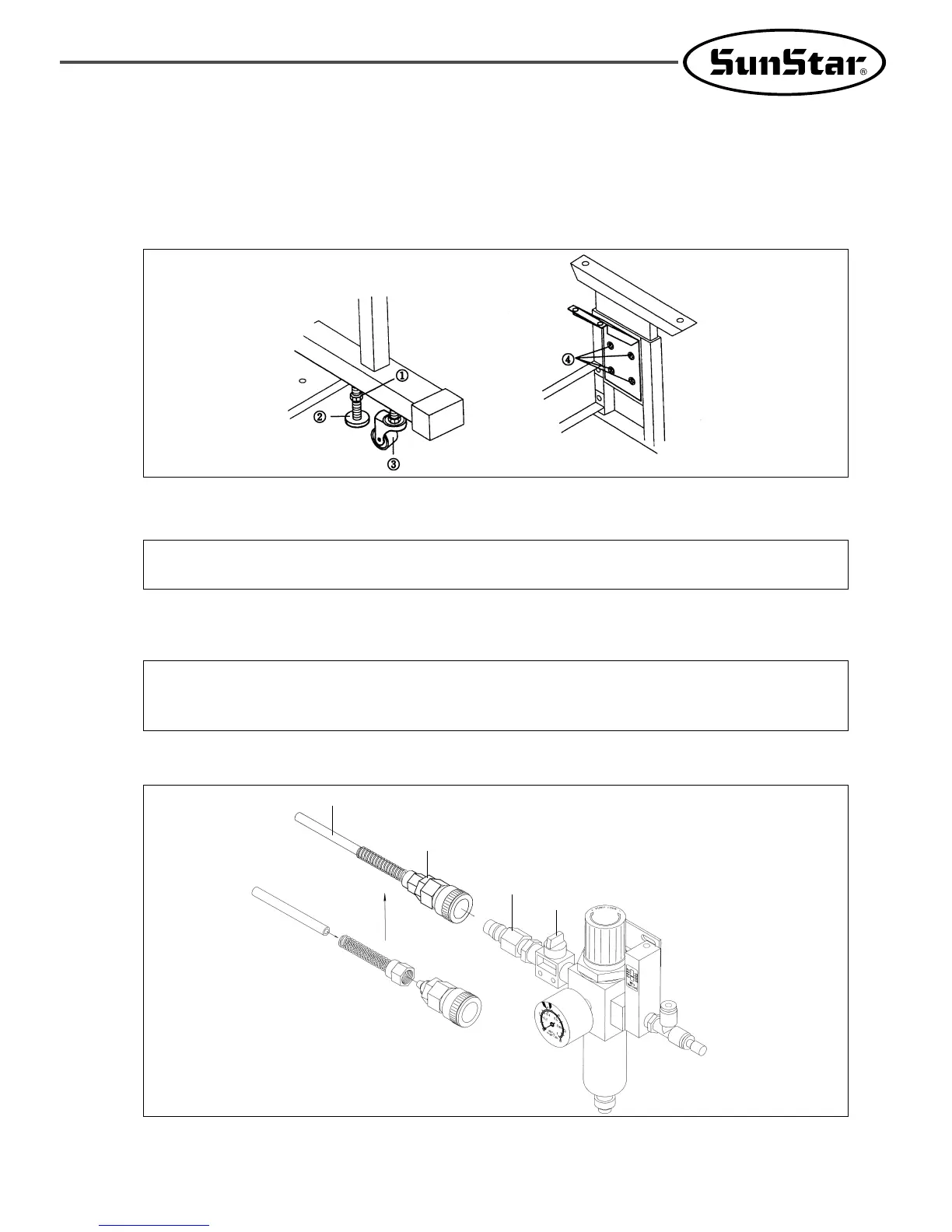

[ Fig. 5 ]
E. Table leg holder
▶ Method
ⓐ Loosening the nut ① and turn and raise the label adjuster ② until the caster ③ is raced.
ⓑ After installation, fasten the nut ① and fix the label adjuster ②.
ⓒ With the bolt ④, adjust the height of table by loosening 8 different spots.
F.How to attach the accessories for air pressure control.
ⓐ Connect air hose ② to quick joint socket.
ⓑ Connect quick joint socket ① and quick joint plug ③.
ⓒ Open finger valve ④ and flow air in. Then, adjust the air pressure to 0.49~0.54MPa(5~5.5kgf/㎠).
[ Coution ]
For safety, work with the power cut off.
[ Caution ]
When the air pressure goes down (under 4kgf/㎠), an error is indicated and the machine operation is stopped.
Error message : Err 24 (Low Pressure ! )
[ Note ] When the finger valve ④ is closed after use, the remaining air is rejected and the pressure is
adjusted to 0Mpa(0kgf/㎠ ).
[ Fig. 6 ]
④
①
②
③
To Next Page
