38

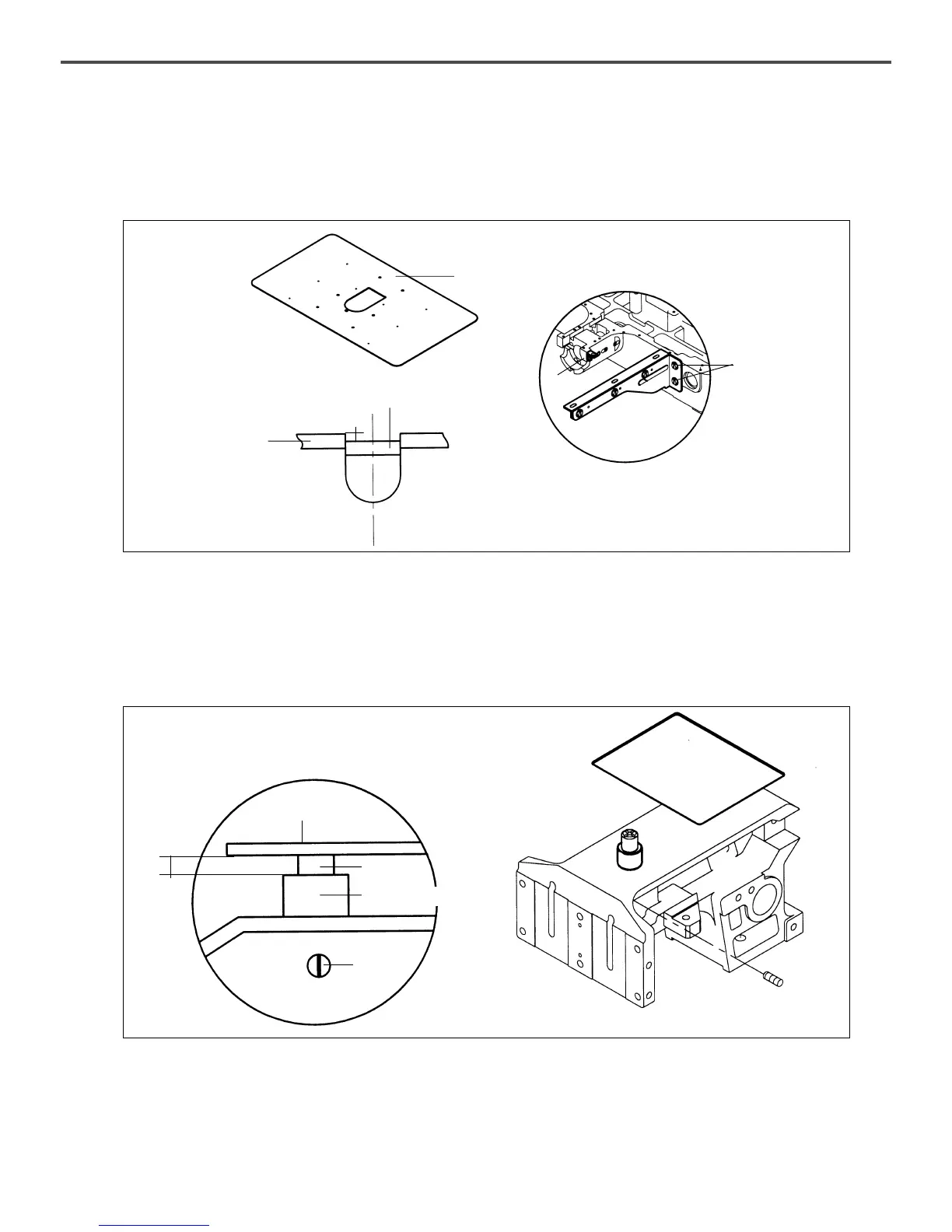

18) Adjusting the Height of Slider
Loosen the fixing screw ① of slide holder and adjust the gap of slider holder to be 0.3±0.2mm by turning the slider
holder with a spanner.
[ Fig. 59 ]
Presser Plate
Presser Plate
Slider
Slider Holder
①
17) Adjusting the Height to Needle Plate Support Cover
Loose the cover bracket fastening screw ① of needle plate support and the cover bracket A fastening screw ② of
needle plate support, then fix the distance to be 0.3mm between the needle plate and cover of needle plate support.
[ Fig. 58 ]
②
Needle Plate
0.3mm Under
①
Cover of Needle
Plate Support
Cover of Needle
Plate Support
↓
↑
①
↓
↑
3.5±0.2mm
To Next Page
