INSTALLATION OF THE MACHINE
1) Environment for Machine Installation
A. Do not use the machine where the voltage is over regular voltage ±10% to prevent accidents.
B. Check the indicated pressure of the devices that use atmospheric pressure such as the air cylinder to
prevent any accidents from occurring.
C. For safe operation of the machine, use the machine under the following conditions.
Surrounding Temperature During Operation : 5℃~40℃
Surrounding Temperature During Maintenance : -10℃~60℃
D. Humidity : Between 20~80%(Relative humidity)
2) Electric Installment Conditions
A. Power Voltage
· The power voltage must be between regular voltage ±10%.
· The frequency of the power should be regular frequency (50/60HZ)±1%.
B. Electromagnetic Wave Noise
Use separate power with strong magnetics or high frequency products, and do not leave the machine near
them.
C. Use low voltage when supplements or accessories are being adhered.
D. Be careful not to have water or coffee be spilled into the Controller and Motor.
E. Do not drop the Controller or Motor.
3) Assembly of Peripheral Construction Parts
A. Attach the X-motor cover, Y-motor cover, motor cover and belt cover to the back side of machine with using
fixing screws.
(In case of A series, attach the belt cover, the motor cover and the driving shaft cover to the back of the
sewing machine.)

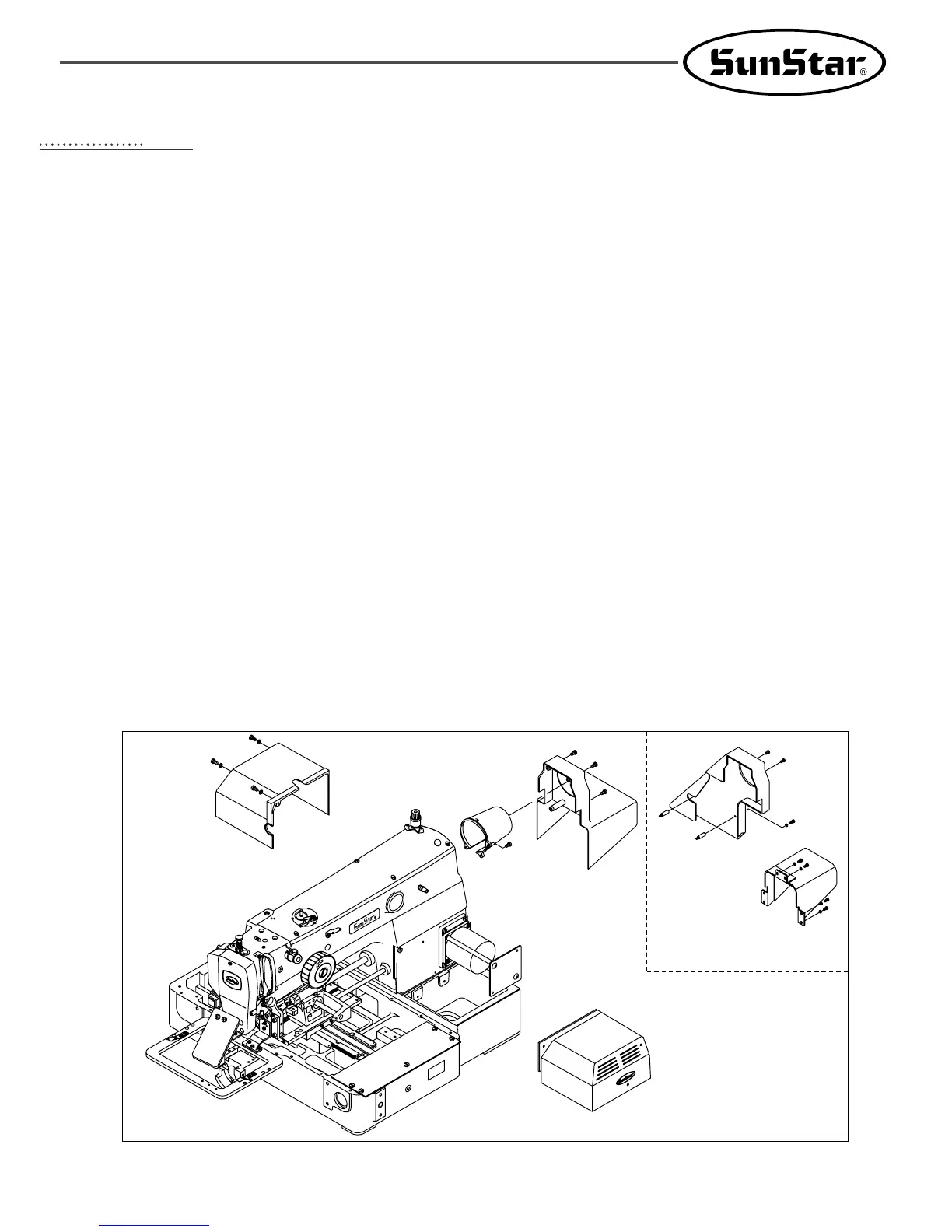

[ Fig. 1 ]
Belt Cover
Belt Cover
Driving Shaft Cover
A series
Motor Cover
Y-Motor Cover
X-Motor Cover
