4.3. System Diagram
4.4. Mounting the Inverter
ALSO CONSIDER:
Installing the indoor unit, outdoor unit, power supply cable, transmission cable, and remote
control cable at least 1 metre away from any television or radio receiver. This will prevent TV
reception interference or radio noise. This will prevent radio signal interference from external
units that might interfere with the Wi-Fi or GSM monitoring.
If children under 10 years old may approach the unit, take preventive measures so that they
cannot reach and touch the unit.
Install the indoor unit on the wall where the height from the floors is higher than 1600mm.
For proper heat dissipation, allow a clearance of approximately 500mm to the side, 500mm
above nd below the unit, and 1000mm to the front of the unit.
Select installation locations that adequate to support the weight of the converter.
Install this inverter at eye-level to allow the LCD to be read anytime.
An appropriate ambient temperature is between -25 ~ 60°C to ensure optimal operation.

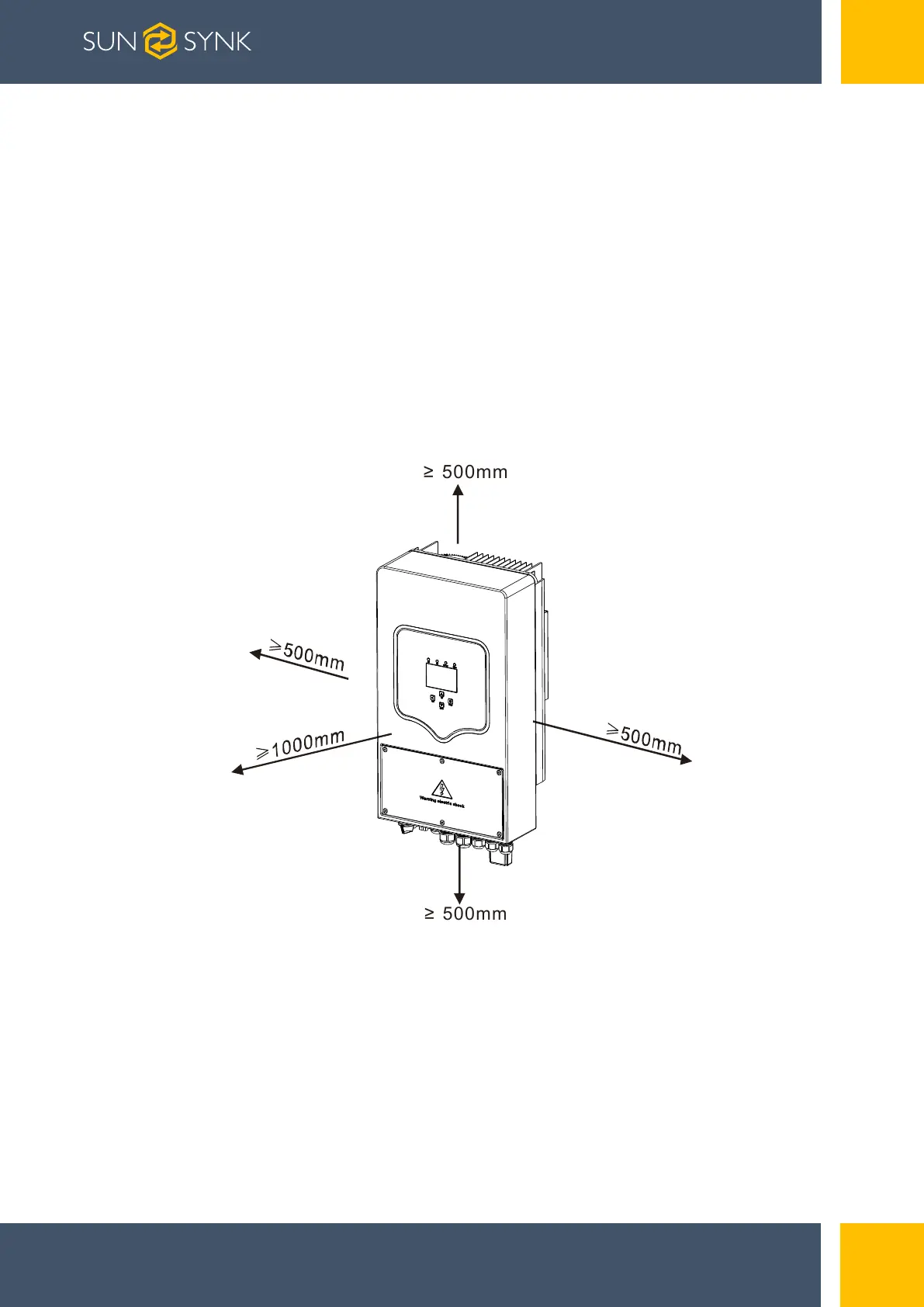

Be sure to keep other objects and surfaces as shown in the figure to guarantee sufficient
heat dissipation and have enough space to remove wires.
For proper air circulation to dissipate heat, allow a clearance of approximately 50cm to the
side.
500mm
500mm
Page | 16 Hybrid Inverter | Installer Manual
