Page | 34 Hybrid Inverter | Installer Manual

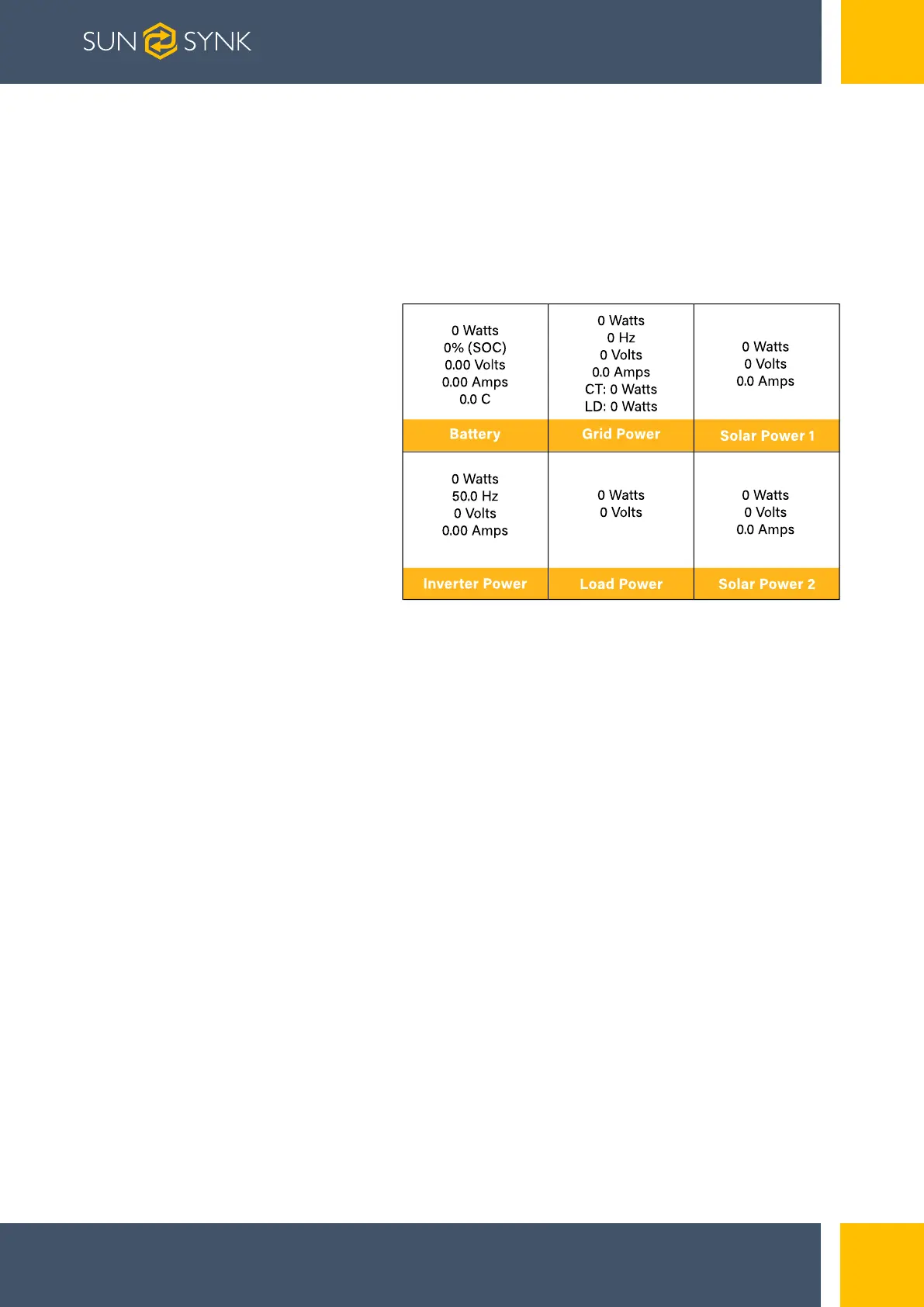

5.4. Status Page
To access the Status page, click on the BATTERY or AC LOAD dial on the Home page.
What this page displays:
Total solar power produced.
MPPT 1 power/voltage/current.
MPPT 2 power/voltage/current.
Grid power.
Grid frequency.
Grid voltage.
Grid current.
Inverter power.
Inverter frequency.
Inverter voltage.
Inverter current.
Load power.
Load voltage.
Battery power charge/discharge.
Battery SOC.
Battery voltage.
Battery current.
Battery temperature.
Solar Column: Shows total PV (Solar) power at the top and then details of each of the two
MPPT’s below L1 & L2 voltage.
Grid Column: Shows grid total power, frequency, voltage, and current. When selling power to
grid the power is negative. When consuming from the grid the power is positive. If the sign of
the grid and HM (home) powers are not the same when the PV is disconnected and the inverter
is only taking energy from the grid and using the CT connected to Limit-2, then please reverse
the polarity of the CT coil. Important: See Section 4.6 (‘Connecting the CT coil’).
Inverter Column: Showing inverter total power, frequency, L1, L2, voltage, current, and power.
Load Column: Showing total load power, load voltage, and power on L1 and L2.
Battery Column: Showing total power from the battery, battery SOC, battery voltage, battery
current (negative means charge, positive means discharge) battery temperature (shows zero if
the battery temperature sensor is not connected). DC transformer temperature and AC heat-
sink temperature (When the temperature reaches 90°C it will display in red and the performance
of the inverter will start deteriorating when it reaches 110°C. Subsequently, the inverter will shut
down to allow it to cool and reduce its temperature.
