Page | 30 Hybrid Inverter | Installer Manual

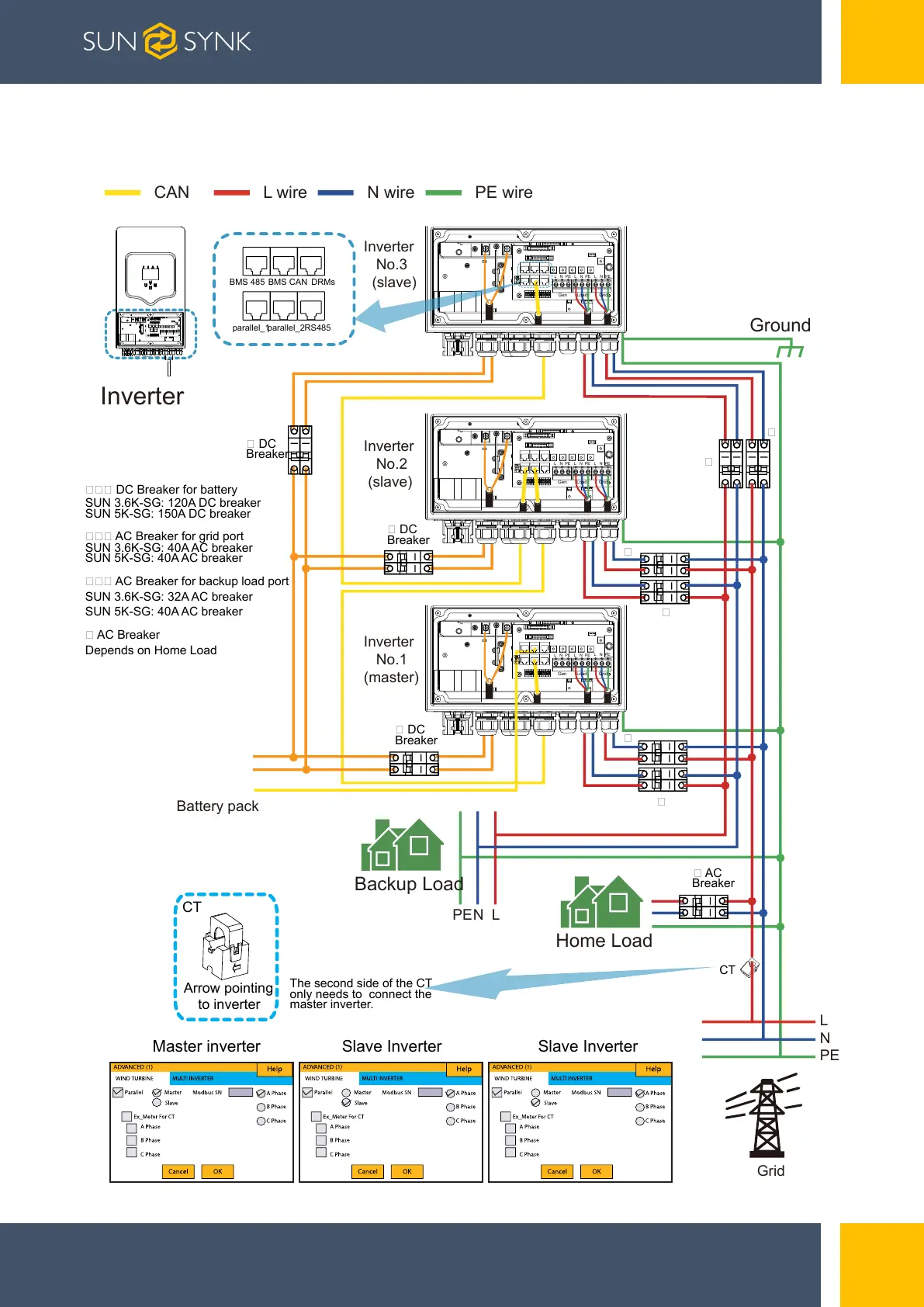

4.15. Single-Phase Parallel Connection Diagram
L wireCAN N wire PE wire
Master inverter Slave Inverter Slave Inverter
Grid
Backup Load
L
N
PE
LNPE
Inverter
Inverter
No.3
(slave)
Ground
Inverter
No.2
(slave)
Inverter
No.1
(master)
Home Load
Battery pack
ON
1 2
BMS 485
parallel_1parallel_2RS485
BMS CAN DRMs
ON
1 2
ON
1 2
DC
Breaker
DC
Breaker
DC
Breaker
��� DC Breaker for battery
SUN 3.6K-SG: 120A DC breaker
SUN 5K-SG: 150A DC breaker
��� AC Breaker for grid port
AC
Breaker
SUN 3.6K-SG: 40A AC breaker
SUN 5K-SG: 40A AC breaker
��� AC Breaker for backup load port
SUN 3.6K-SG: 32A AC breaker
SUN 5K-SG: 40A AC breaker
AC Breaker
Depends on Home Load
Load
L N PEL N PE
L N PE
Grid
Gen
Load
L N PEL N PE
L N PE
Grid
Gen
Load
L N PEL N PE
L N PE
Grid
Gen
The second side of the CT
only needs to connect the
master inverter.
CT
CT
Arrow pointing
to inverter
03
02
01
