SunSynk SUNSYNK-5K-SG01LP1 Installer Manual

Ground
L wireCAN N wire PE wire
Battery pack
Grid
CAN/RS 485
L1 N PE L2 L3
LoadGEN Grid LoadGEN Grid LoadGEN Grid
A Phase Inverter No.1(master)
B Phase Inverter No.2(master)
C Phase Inverter No.3(master)
Backup Load
A Phase Master inverter B Phase Master inverter C Phase Master inverter
ON
1 2
ON
1 2
ON
1 2
BMS 485
parallel_1parallel_2RS485
BMS CAN DRMs
Home load
L3 L2 L1
N-BAR E-BAR
� AC Breaker
� AC Breaker
� AC Breaker
��� DC Breaker for battery
� DC Breaker
� DC Breaker
� DC Breaker
CT1
CT2 CT3
SUN 3.6K-SG: 120A DC breaker SUN 5K-SG: 150A DC breaker
� AC Breaker for grid port
SUN 3.6K-SG: 40A AC breaker SUN 5K-SG: 40A AC breaker
� AC Breaker for backup load
SUN 3.6K-SG: 32A AC breaker SUN 5K-SG: 40A AC breaker
� AC Breaker
Depends on Homeload
CT
Arrow pointing
to inverter
Page | 31Hybrid Inverter | Installer Manual

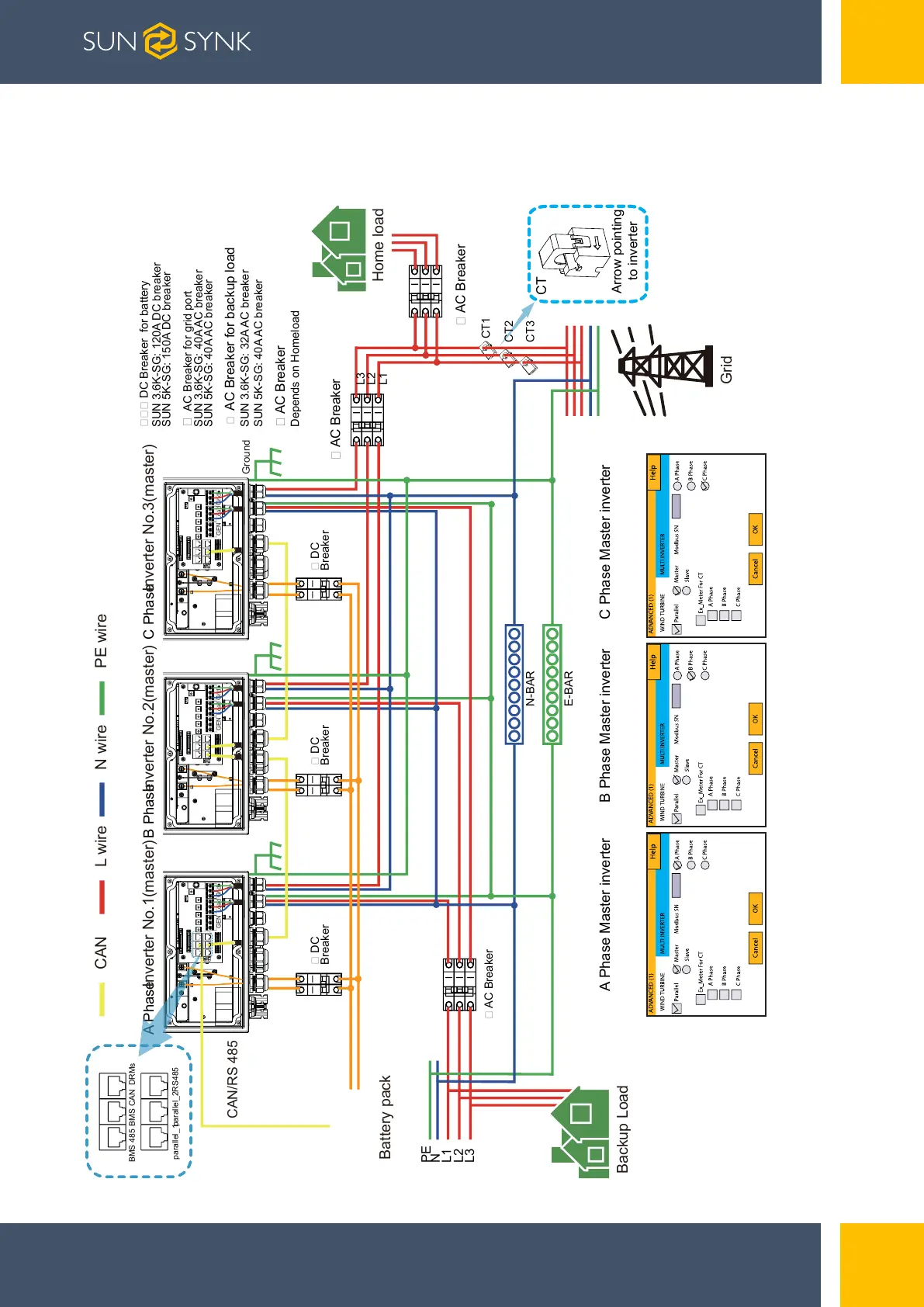

4.16. Three-Phase Parallel Inverter
03
02
01
