ON
1 2
ON
1 2
Load
L N PEL N PE
L N PE
Grid
Gen

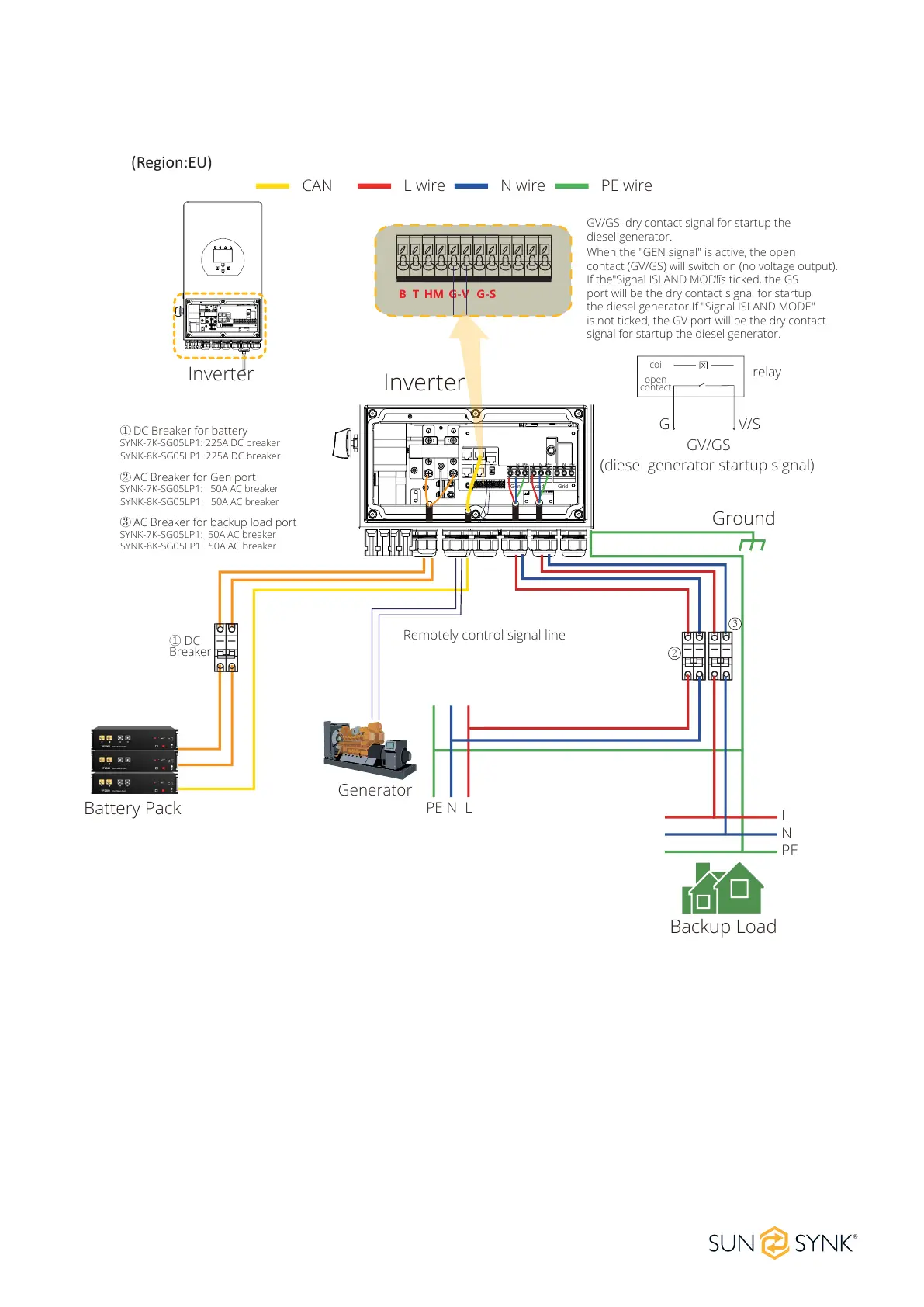

(Region:EU)
L wireCAN N wire PE wire
Inverter
Battery Pack
① DC
Breaker
Backup Load
L
N
PE
LNPE
Ground
Generator
2
3
Remotely control signal line
B HM G-V
G-S
T
GV/GS
(diesel generator startup signal)
relay
coil
open
contact
G V/S
GV/GS: dry contact signal for startup the
diesel generator.
When the "GEN signal" is active, the open
contact (GV/GS) will switch on (no voltage output).
If the "Signal ISLAND MODE"is ticked, the GS
port will be the dry contact signal for startup
the diesel generator.If "Signal ISLAND MODE"
is not ticked, the GV port will be the dry contact
signal for startup the diesel generator.
Inverter
① DC Breaker for battery
SYNK-7K-SG05LP1: 225A DC breaker
SYNK-8K-SG05LP1: 225A DC breaker
② AC Breaker for Gen port
SYNK-7K-SG05LP1: 50A AC breaker
SYNK-8K-SG05LP1: 50A AC breaker
③ AC Breaker for backup load port
SYNK-7K-SG05LP1: 50A AC breaker
SYNK-8K-SG05LP1: 50A AC breaker
To Next Page
