ECCO SG05LP1 | User Manual67

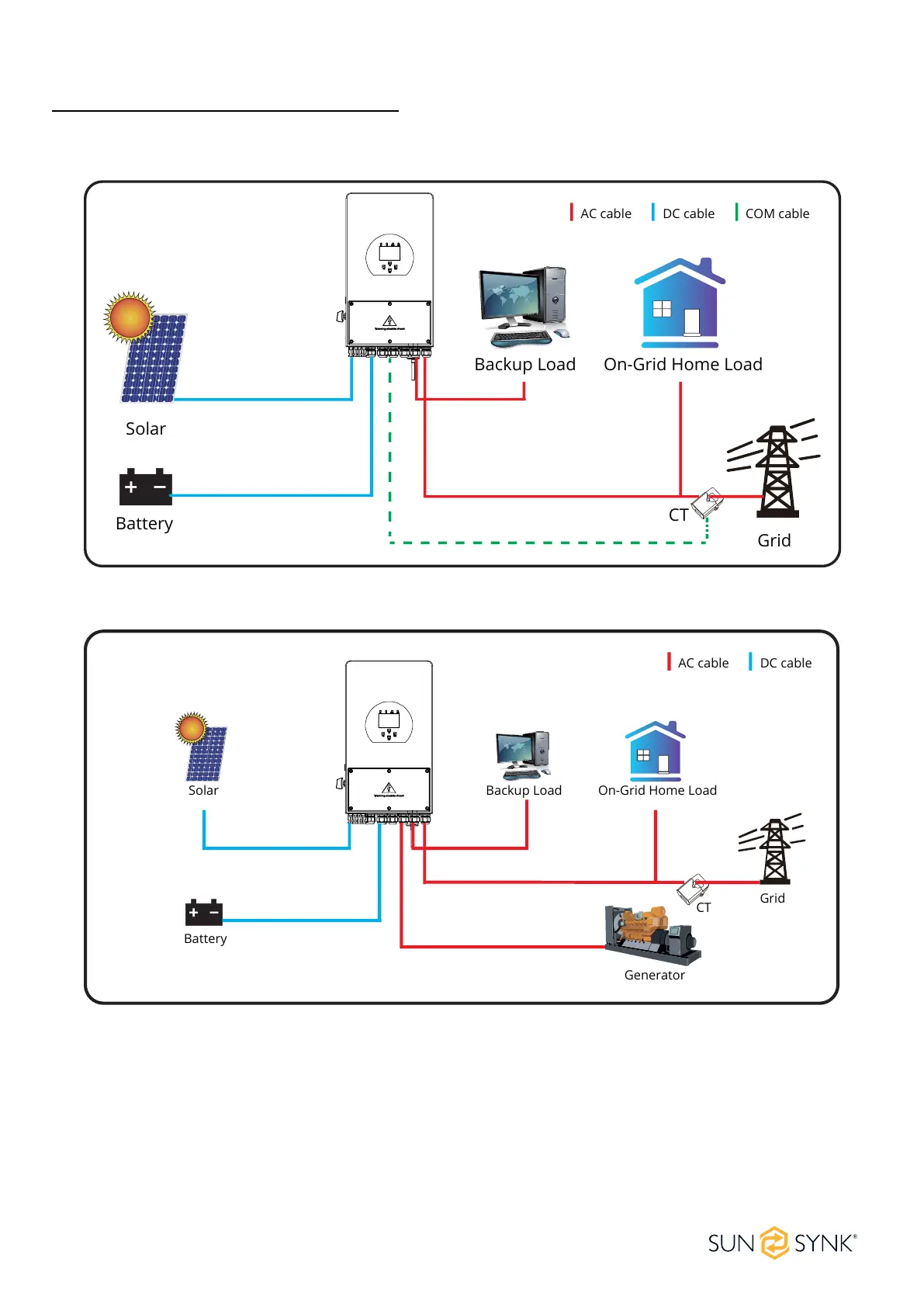

OPERATING MODES
Mode I: Basic
Mode II: With Generator
Grid
Backup Load On-Grid Home Load
CT
Battery
Solar
AC cable DC cable
COM cable
Grid
Backup Load On-Grid Home Load
Battery
Solar
CT
AC cable DC cable
Generator
