SunSynk SYNK-7K-SG05LP1 User Manual

ECCO SG05LP1 | User Manual30

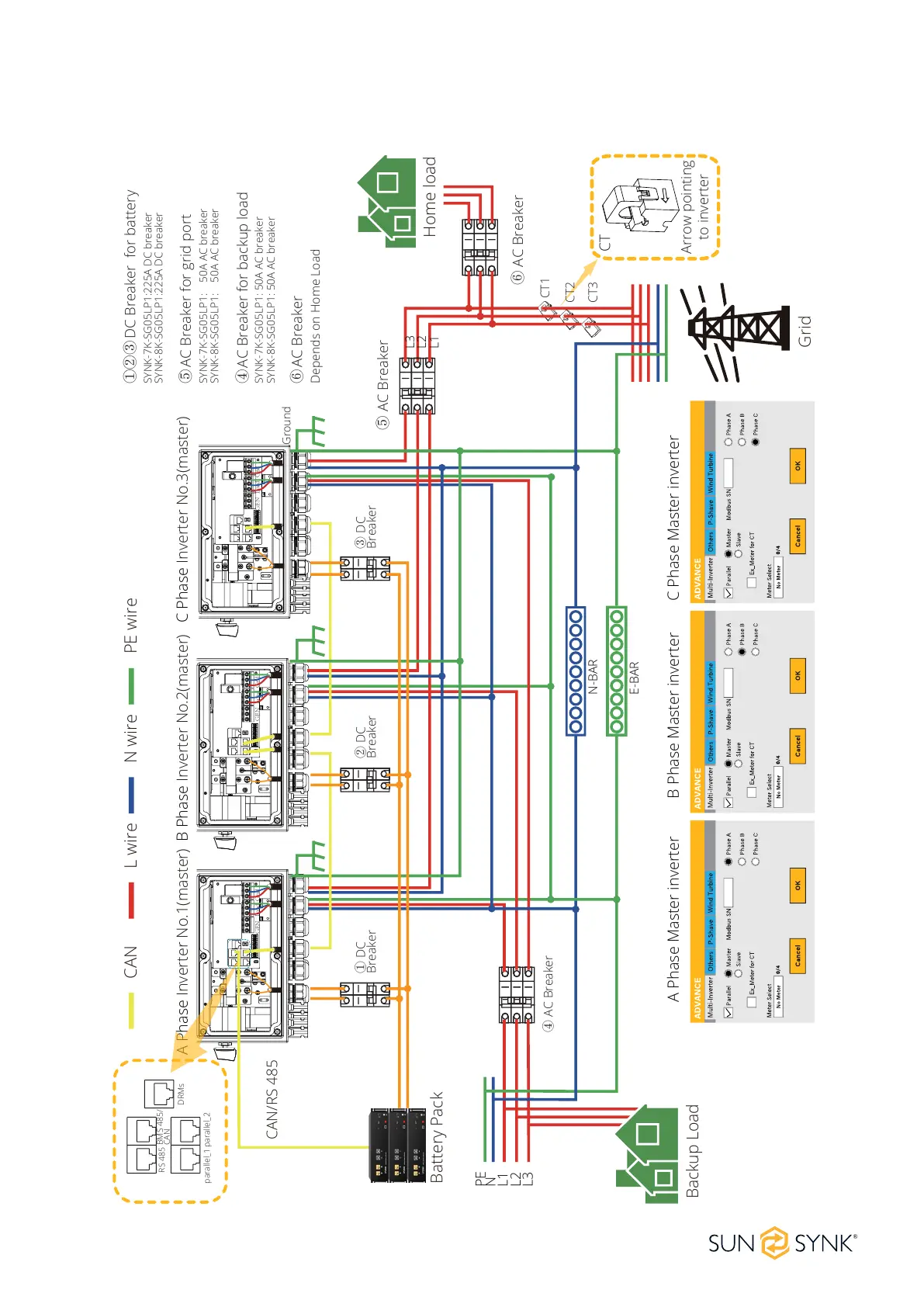

Three-Phase Parallel Inverter
01 02 03
ON
1 2
ON
1 2
ON
1 2
Ground
L wireCAN N wire PE wire
Battery Pack
Grid
CAN/RS 485
L1 N PE L2 L3
LoadGEN Grid LoadGEN Grid LoadGEN Grid
A Phase Inverter No.1(master) B Phase Inverter No.2(master) C Phase Inverter No.3(master)
Backup Load
A Phase Master inverter B Phase Master inverter C Phase Master inverter
Home load
L3 L2 L1
N-BAR E-BAR
④ AC Breaker
⑤ AC Breaker
⑥ AC Breaker
① DC Breaker
② DC Breaker
③ DC Breaker
CT1
CT2 CT3
CT
Arrow pointing
to inverter
①②③ DC Breaker for battery ⑤ AC Breaker for grid port ④ AC Breaker for backup load ⑥ AC Breaker Depends on Home Load SYNK-7K-SG05LP1: 50A AC breaker SYNK-7K-SG05LP1:225A DC breaker SYNK-7K-SG05LP1: 50A AC breaker
RS 485
parallel_1 parallel_2
BMS 485/ CAN
DRMs
SYNK-8K-SG05LP1:225A DC breaker SYNK-8K-SG05LP1: 50A AC breaker SYNK-8K-SG05LP1: 50A AC breaker
