SWDM240B OPERATION & MAINTENANCE MANUAL

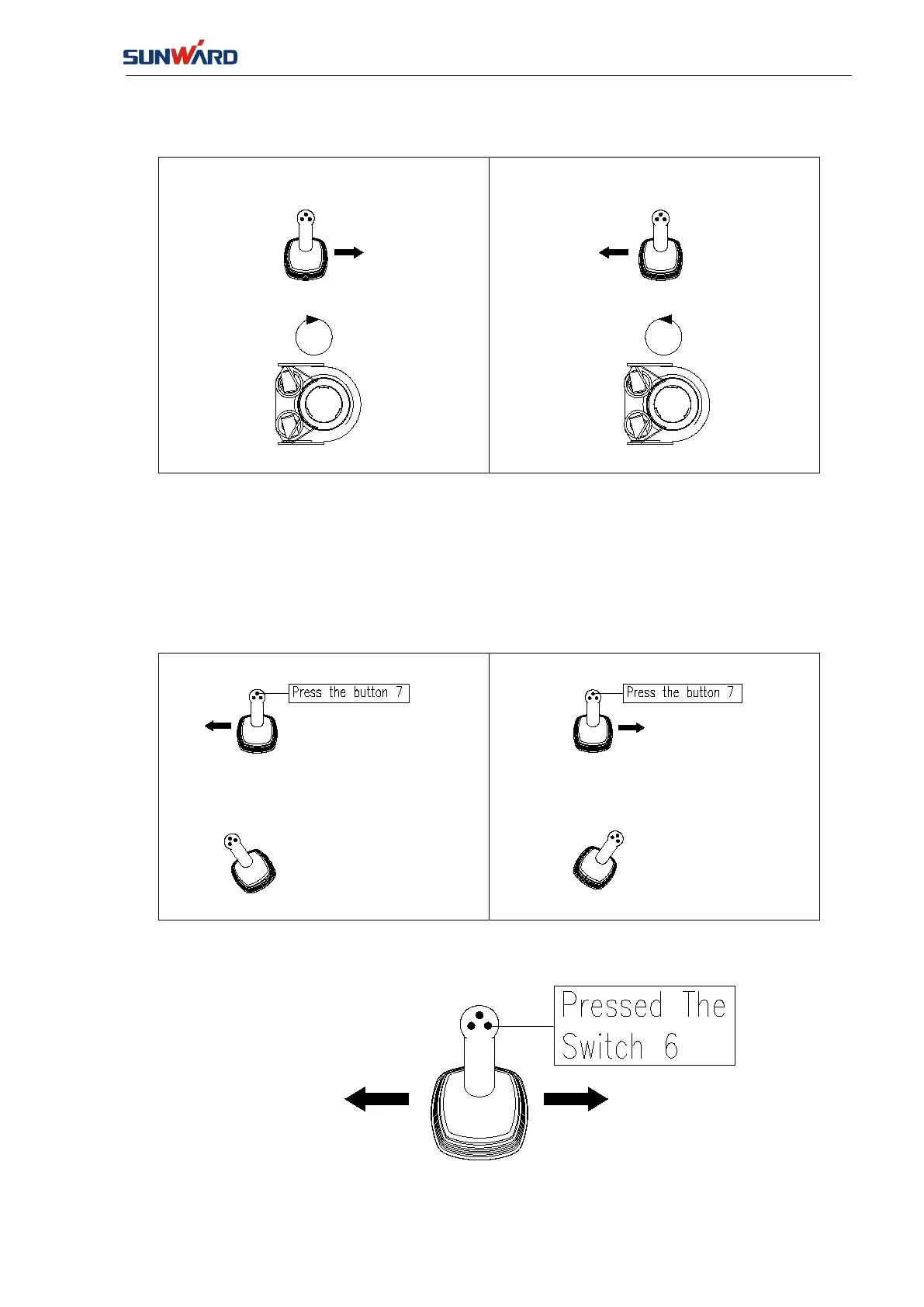

●Corresponding action schematic
Push the right pilot handle rightward
Push the right pilot handle leftward
●In order to alleviate the labor intensity of the operator, the left/right direction of the handle is
built-in locking function: Hold on
“
Button 7
”
, the handle is pushed to the right and left, and the
handle is locked. Press it again, the locking is cancelled and the handle bounces back to the
middle position.
Corresponding action schematic
●Rotary head throwing function: Press “Button 6”, Rotary head is high-speed throwing
●Rotary head torque limit function: Turn on the torque limit switch in complex soil condition
