SWDM240B OPERATION & MAINTENANCE MANUAL
6 TRANSPORTATION AND STORAGE
6.1 TRAILER TRANSPORTATION
Transportation can be carried out in one of the following ways according to the carrying
weight of the trailer and requirements of road transportation laws and regulations. If there’s no
trailer with enough load capacity for transportation, this machine can be disassembled. The
kelly, drill bit, rotary head, drill mast and counterweight can be disassembled. If the drill mast is
too long, it also can be disassembled before transportation.
★
Warning
：
Please confirm that whether the front transport frame between drill mast
1 and drill mast 2 is firmly installed, and the rear transport frame between drill mast 3
and cathead is firmly installed, otherwise the related connecting hinged base may crack
or even worse.

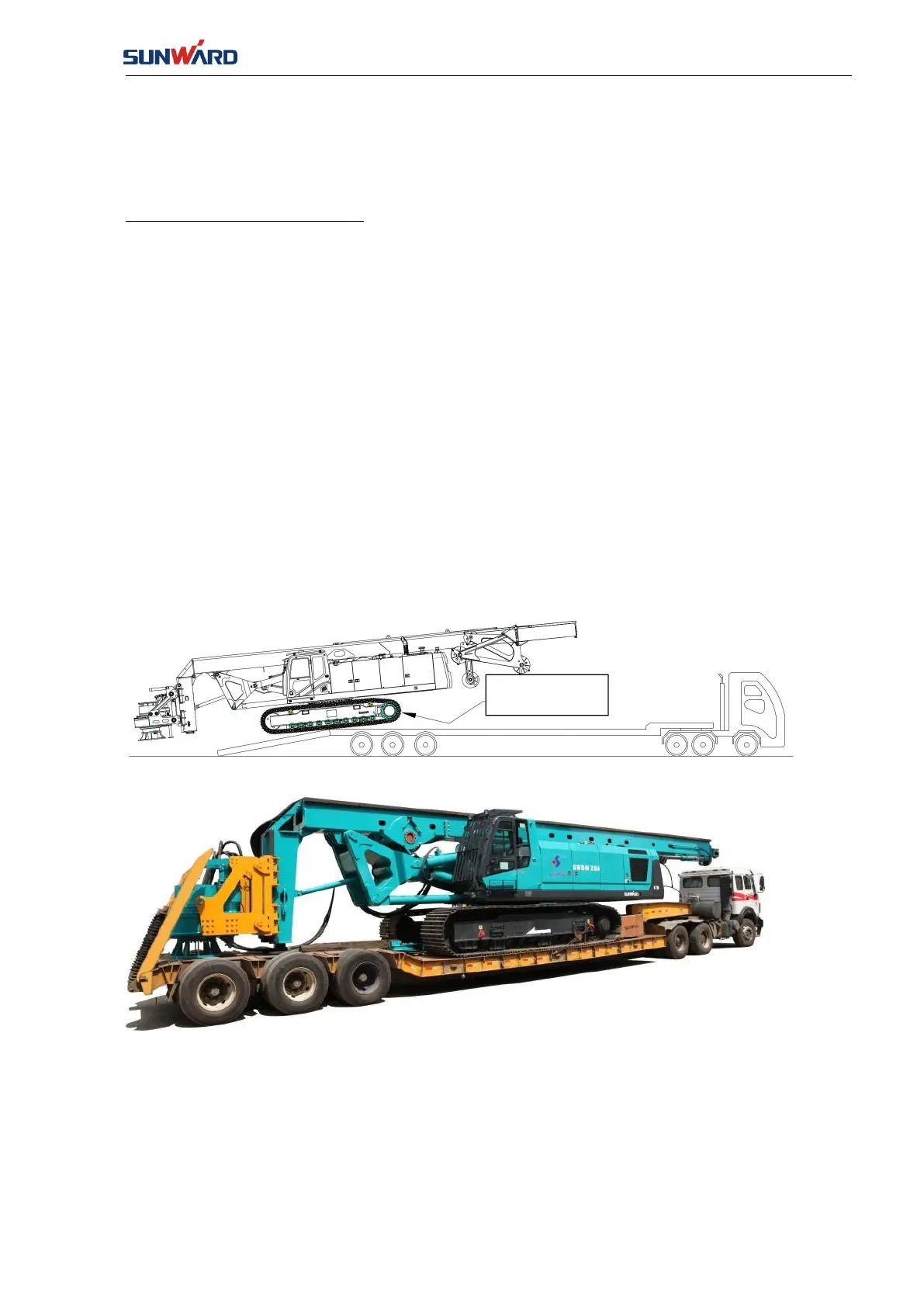

FIG. 6-1 Loading Sketch Map
