SWDM240B OPERATION & MAINTENANCE MANUAL
132

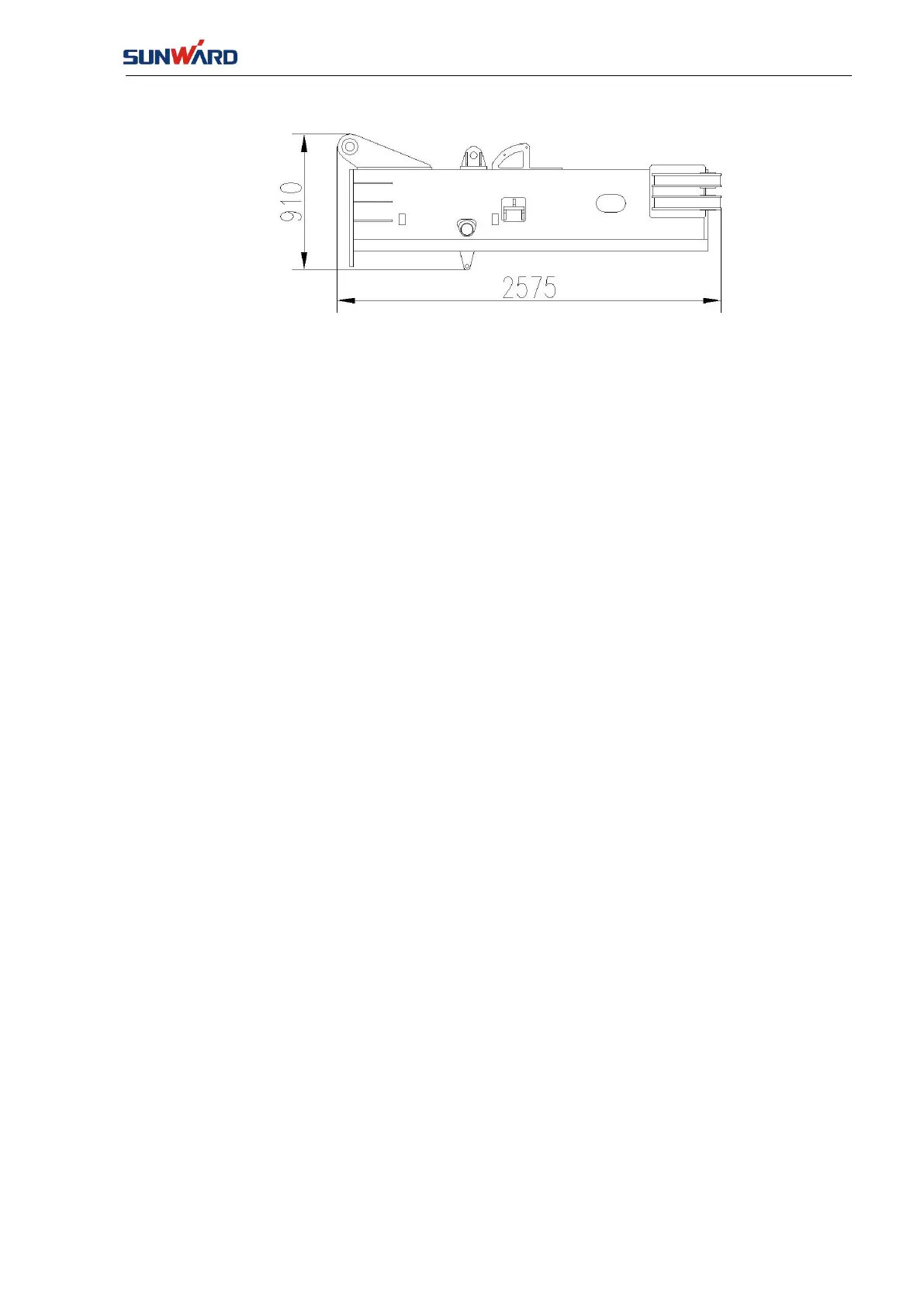

FIG. 6-11
Dimension of Lower Drill Mast 4
Transport posture of drill mast 4: it’s about 1 tons, and the transport width is 1065 mm.
After disassembly, lift each component and upper-carriage onto a trailer, and then secure
that firmly.
6.2 PRECAUTIONS FOR TRANSPORTATION
6.2.1 Notes for Machine Assembly and Disassembly
1
）
Choose a flat ground for the machine.
2）Choke the trailer wheel at the very beginning.
3）Machine should be parked on the center of the trailer as possible as could be.
6.2.2 Tying Machine Down
1）Place the hydraulic starting lever to “Lock” position.
2
）
Turn the engine starting switch to “OFF” position, and stop engine, then pull out the
key.
3）Fix the machine carriage and chassis frame with inserted-pin to prevent rotation.
4
）
Lock all the doors for the machine.
5）Choke the crawler, and fix the machine with suitable rope.
Attention: The requirements of cargo loading for road transportation should be observed,
including size and weight.
