SWDM240B OPERATION & MAINTENANCE MANUAL
6.1.2 Disassembly Transport Posture B

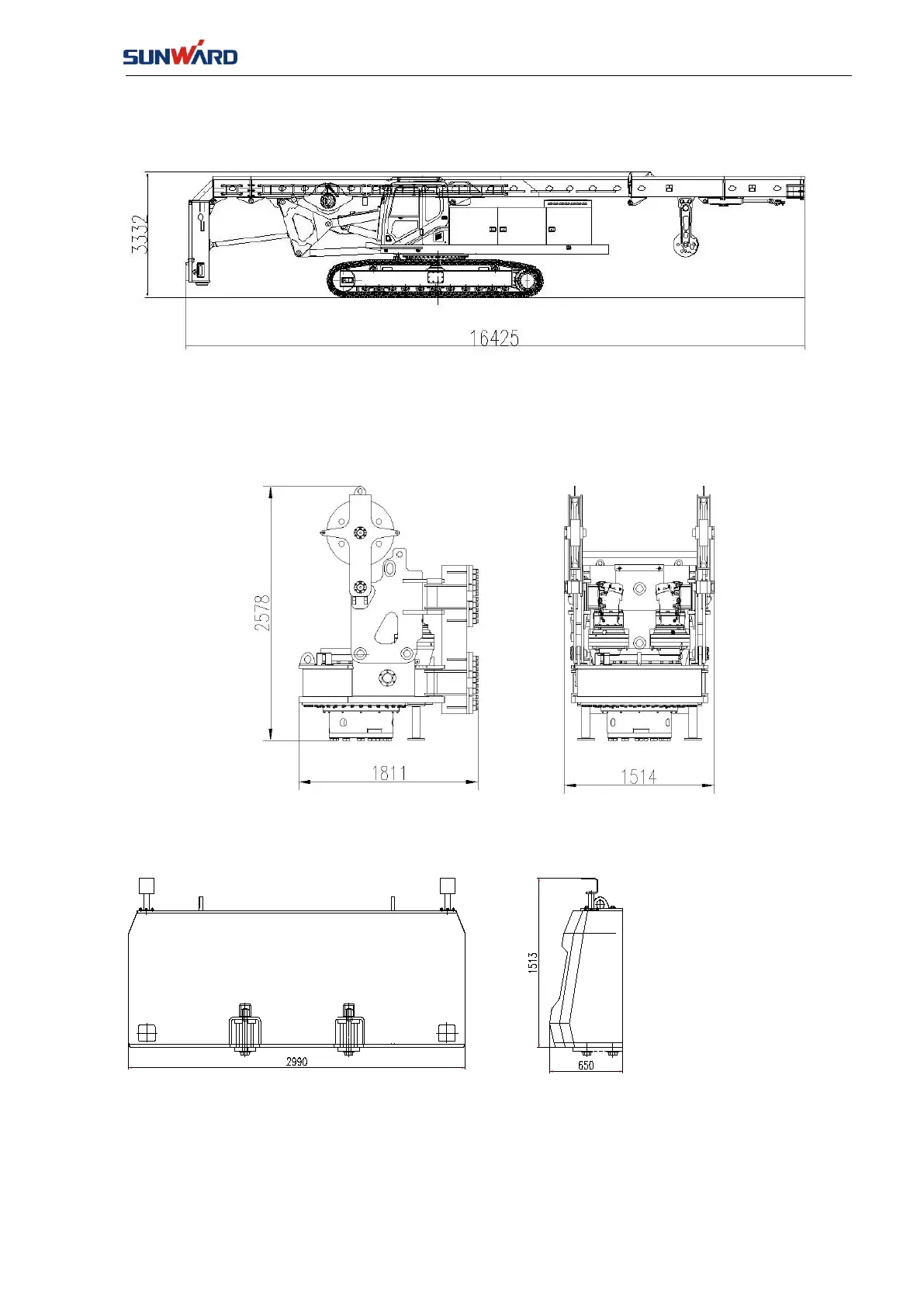

FIG. 6-5Transport Posture B
Transport posture of base machine is about 51tons, and its transport width is 3000mm.
FIG. 6-6 Transport posture-rotary head
Transport posture of rotary head is about 6 tons.
Transport posture of Counterweight Dimension is about 7 tons.
