SWDM240B OPERATION & MAINTENANCE MANUAL
Unscrew the plug on two ends of swivel joint, inject lubricating oil into grease cup as shown in
following FIG. till it flows out from the other end.

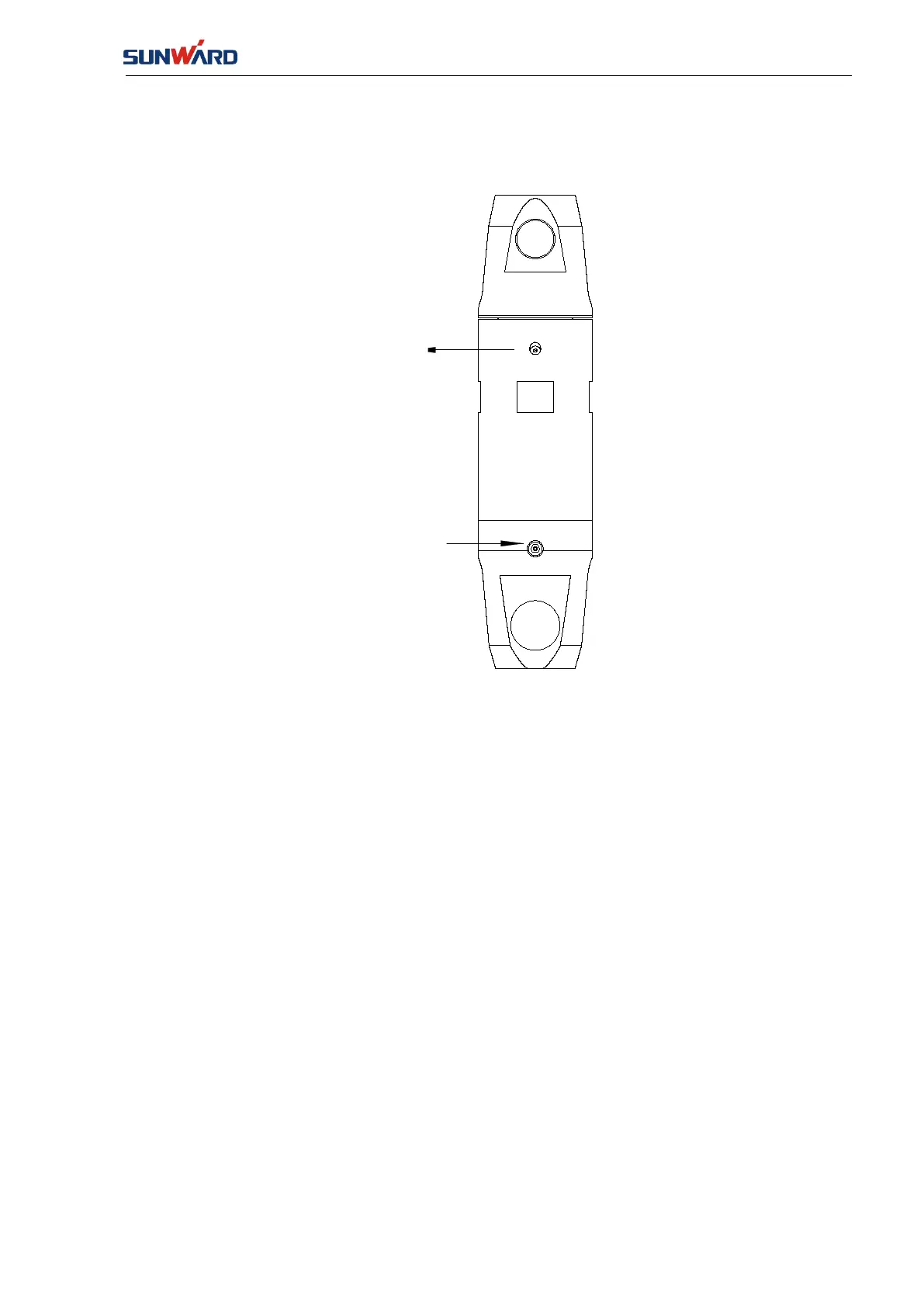

FIG. 7-3-10 Swivel Joint Structure One
Special note: The plug M10X1 on the other side should be unscrewed when injecting grease
into the grease cup from one end of the swivel joint. In this way, the used lubricating grease can
be squeezed out. Failure to comply may damage the oil seal of the swivel joint, mix impurity
into grease, such as fine sediment, and lead to the reduction in flexibility, using performance
and stability of the swivel joint.
2）If swivel joint is still difficult to rotate after lubrication, repair or change it.
3）Replace parts or swivel joint with original specification for safety.
At the outside of the structure two, there’s only one oil port, it’s lubrication-free,
please don’t disassemble it compulsively.
Lubrication requirements：
1）Apply lubricating grease once every day. Use #2 lithium base lubricating grease in summer
and #1 lithium base lubricating grease in winter.
2）Check swivel joint for secure when applying lubricating grease at every time, if loosened,
fasten in time.
