SWDM240B OPERATION & MAINTENANCE MANUAL
tank to avoid scald caused by spray-out of gear oil.

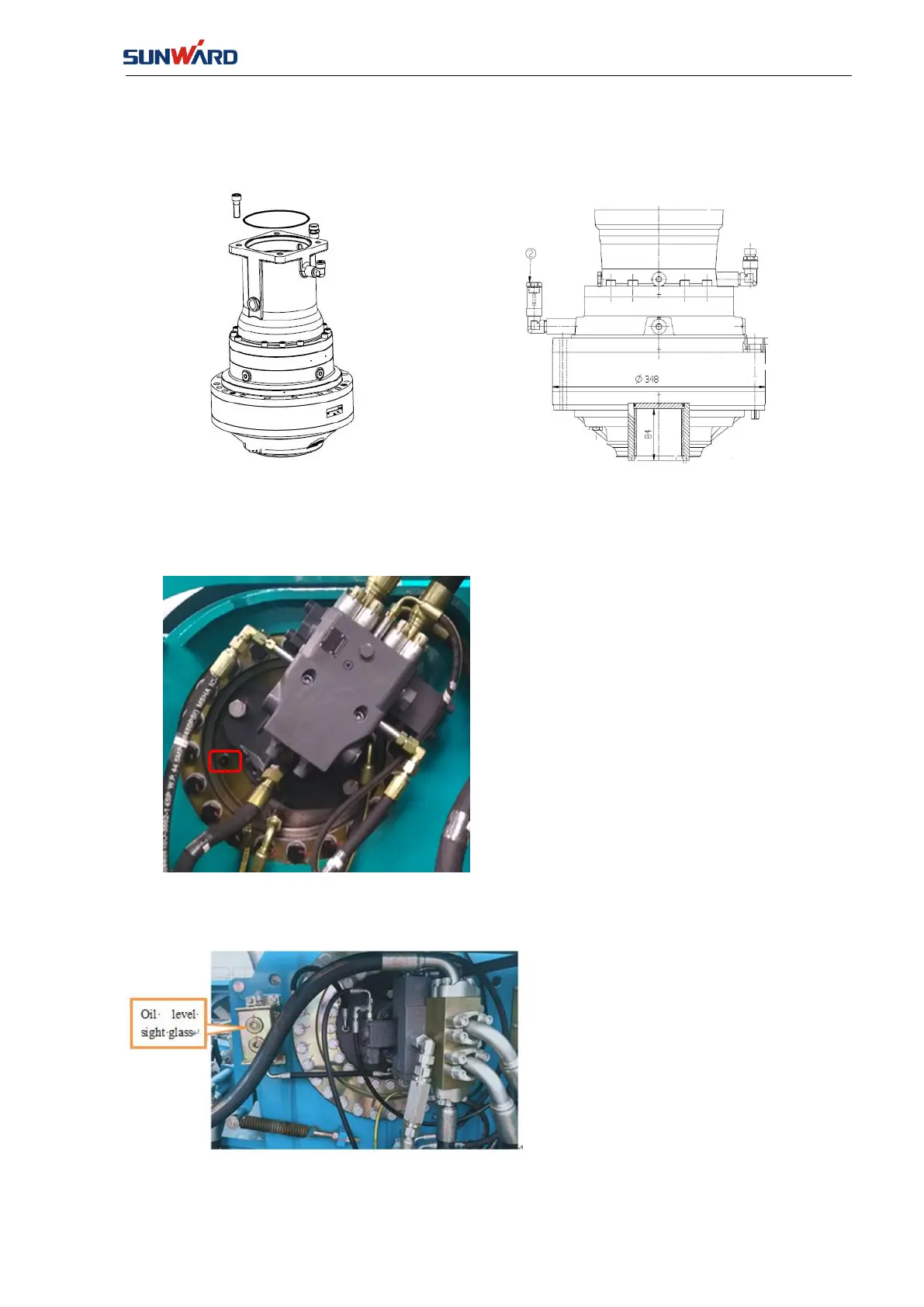

（1）Gear oil level inspection for rotary head reduction gearbox
FIG. 7-3-17 Reduction gearbox with sight glass FIG. 7-3-18 Reduction gearbox with oil scale
（2）Checking gear oil level for reduction gearbox
FIG. 7-3-19 -1Main winch reduction gearbox
FIG. 7-3-19 -2Main winch reduction gearbox
