SWDM240B OPERATION & MAINTENANCE MANUAL

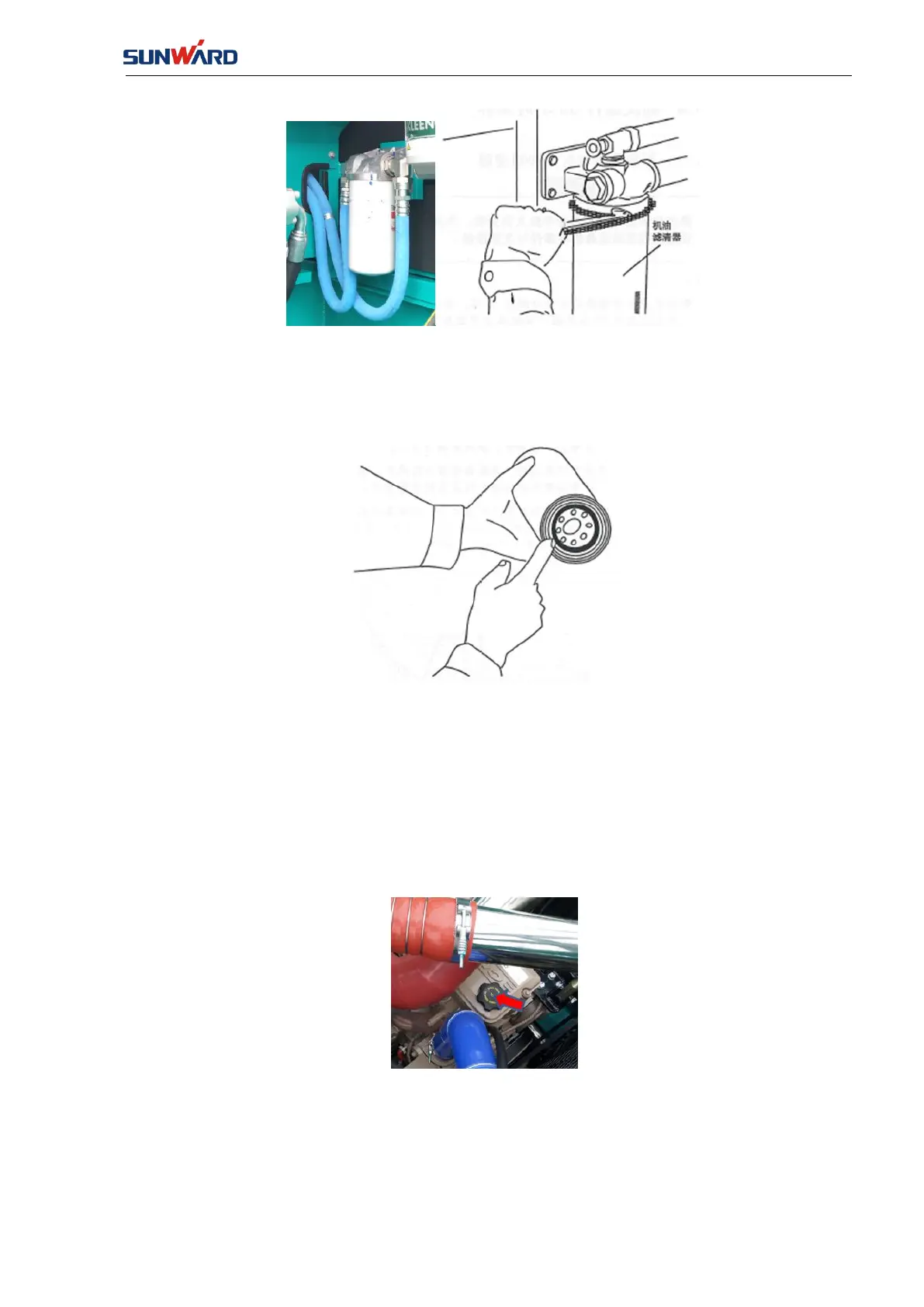

FIG. 7-4-2 dismantle engine oil filter
6. Clean filter base and remove all filter spacers.
7. Apply a layer of engine lubricating oil on the new filter spacer.
FIG. 7-4-3 Apply lubricating grease
8. Install the new filter with hands. After spacer contacts with filter base, turn filter
3/4 circle to screw down the filter.
9. Close the covering parts door.
10. Open and lift up the engine cover.
11. Remove filling plug to inject lubricating oil into the new machine.
FIG. 7-4-4 Lubricating oil filling plug
Note！
Less oil or too much oil in the engine crankshaft case both can result in the damage of the
engine.
