SWDM240B OPERATION & MAINTENANCE MANUAL
36

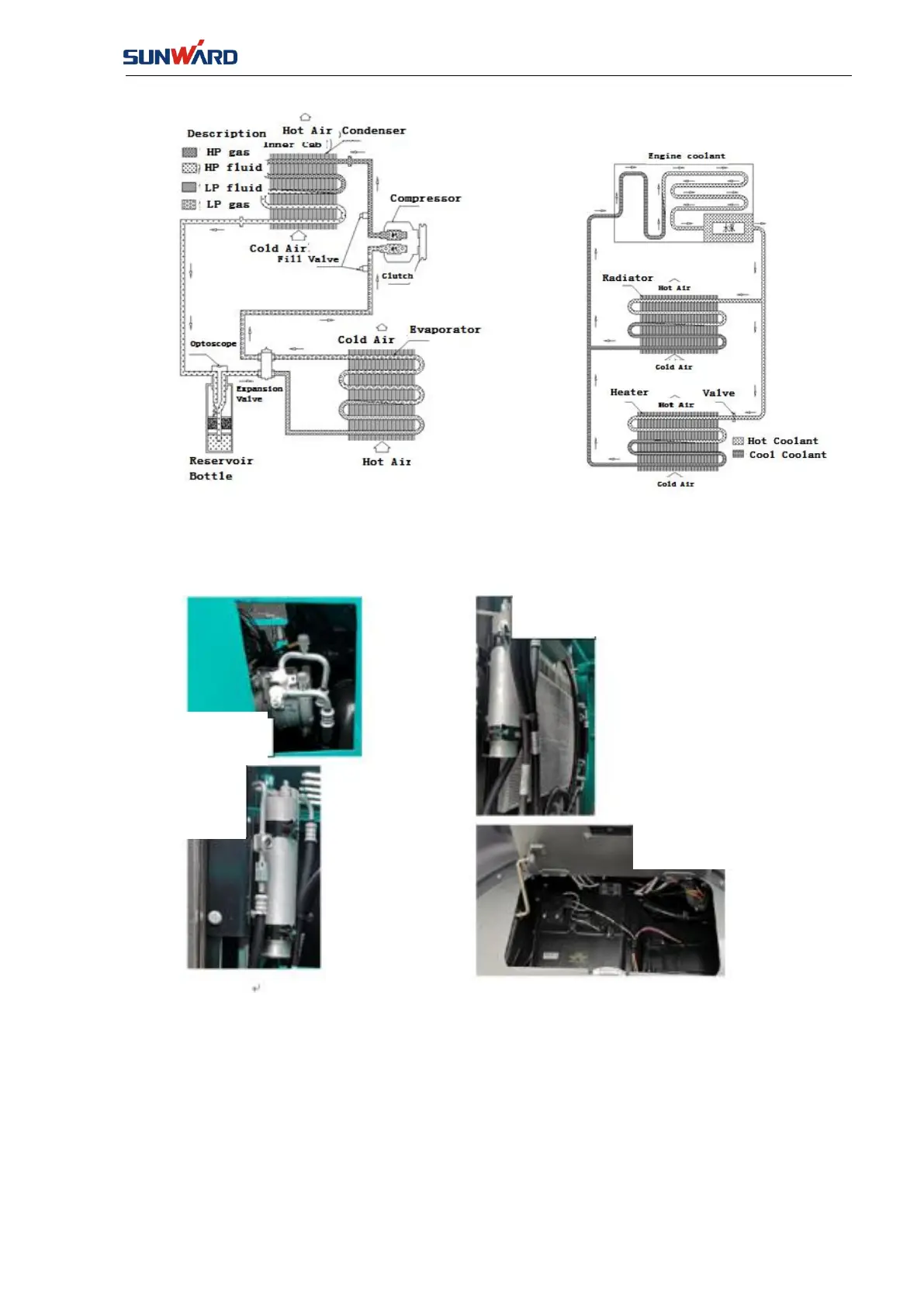

FIG..2-9 FIG..2-10
2. The composition of the air-conditioning system (as FIG. 2-11) :The air-condition system
consists of compressor, condenser, evaporator and air-conditioning pipeline.
FIG.. 2-11
Evaporator
Drying
bottle
Compressor
Condenser
