SWDM240B OPERATION & MAINTENANCE MANUAL
72

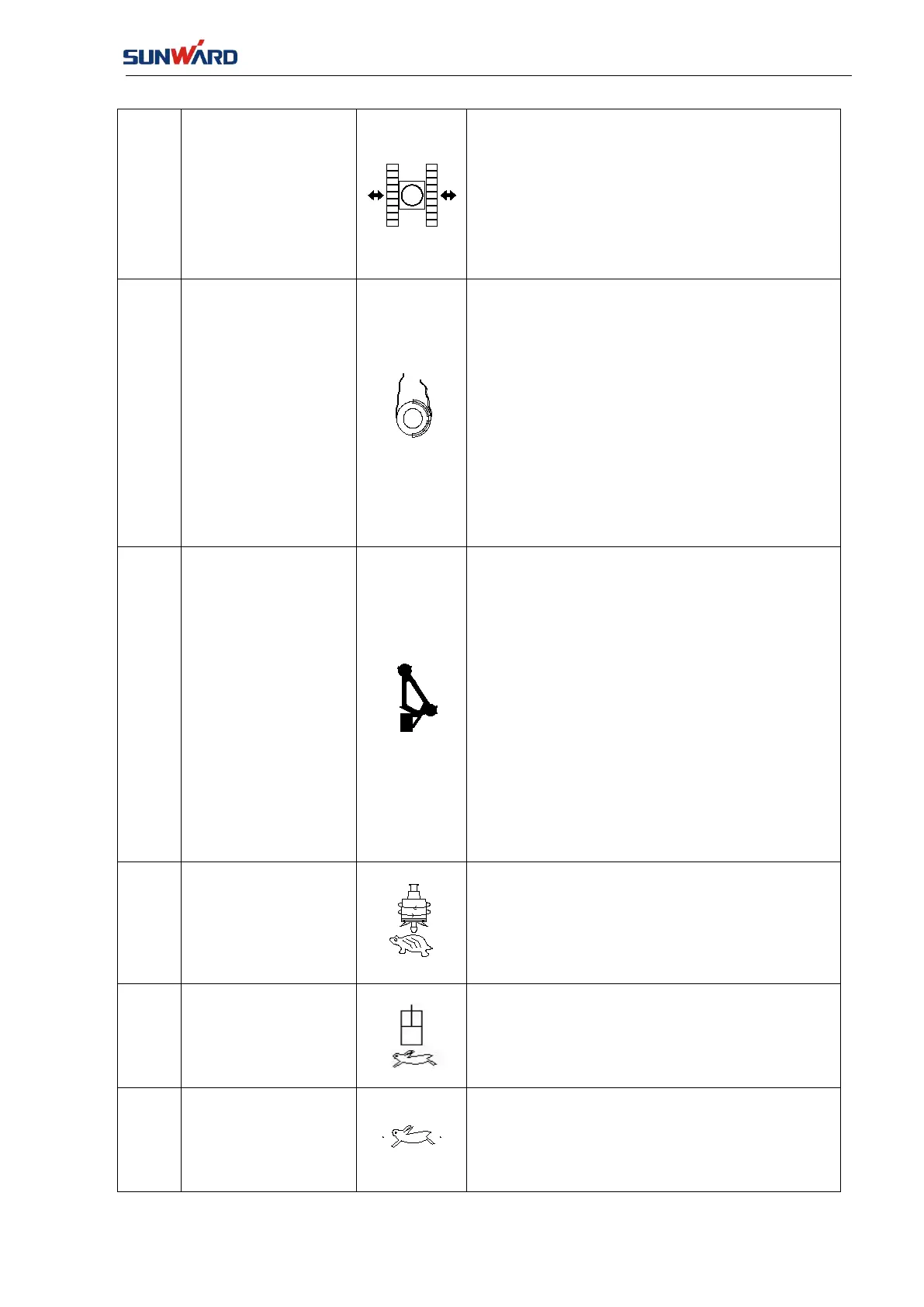

4
Crawler extension
switch
When “Button 1-Working switch”is
disconnected:
"Button 4—Crawler extension switch” is
connected, push right pilot handle leftward to
retract the crawler. Push right pilot handle
rightward to extend the crawler.
5
Pressurized winch
wirerope extension
switch
When “Button 1-Working switch
”
is
disconnected:
“
Button 5—Pressurized winch rope extension
switch
”
is connected, right pilot handle
leftward, pressurized winch wirerope cylinder
will be retreated. Right pilot handle rightward,
pressurized winch wirerope cylinder will be
extended.
6
Goose head cylinder
switch
When “Button 1-Working switch
”
is
disconnected:
“
Button 6—Goose head cylinder switch
”
is
connected, right pilot handle leftward,
pressurized winch wirerope cylinder will be
retreated. Right pilot handle rightward,
pressurized winch wirerope cylinder will be
extended
★
Note: This feature is not currently conFIG.d
on this model.
7
Rotary head
low-speed switch
The rotary head rotates slowly.
8
Pressurized
high-speed
Pressurized fast-speed switch of rotary head
9
Fast walking
Walking speed of equipment crawler.
★
Note: This feature is not currently conFIG.d
on this model.
