Chapter 2 Rack Mount Installation

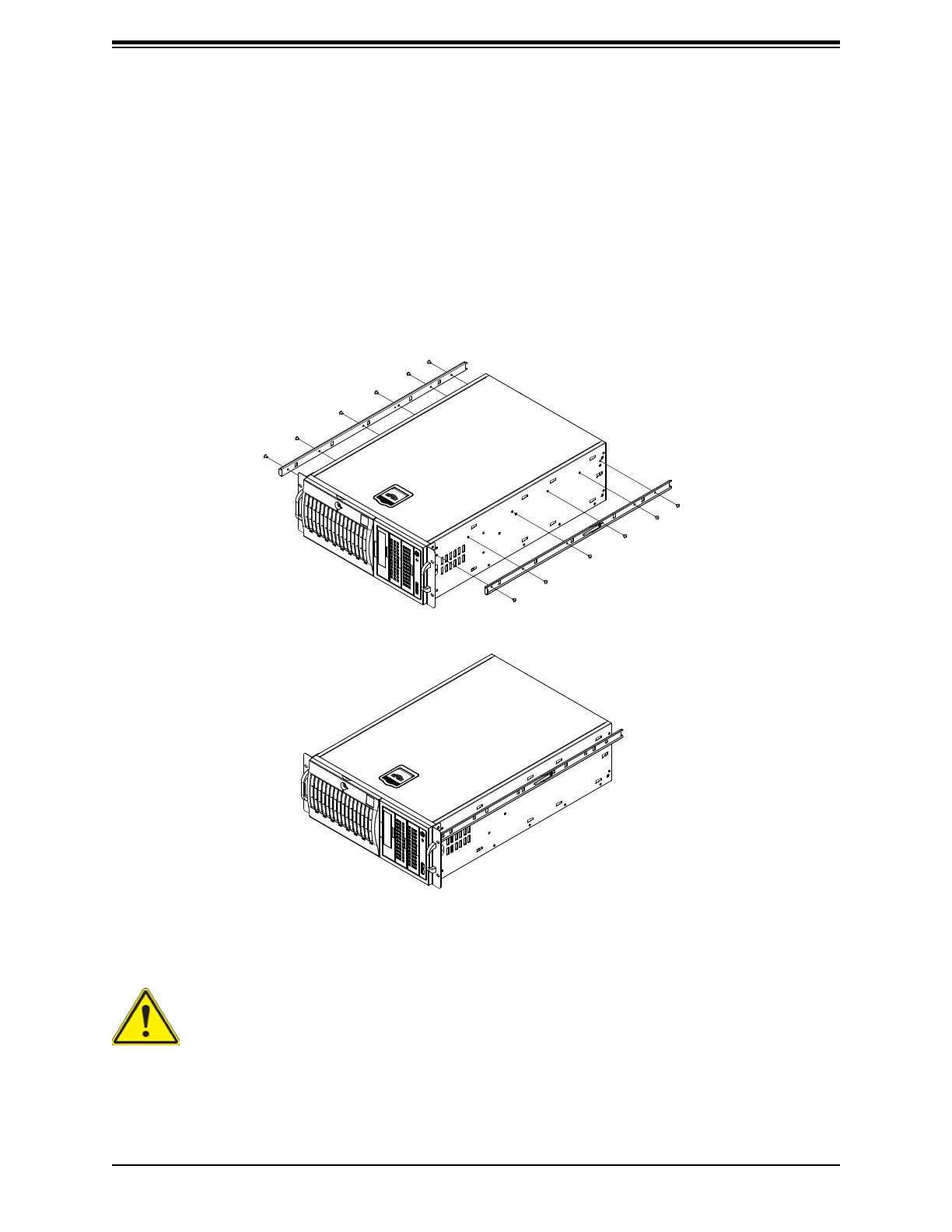

Figure 2-3. Installing the Inner Rails
Installing the Inner Rails
Now that the Inner Rails are detached from the Rail Assembly, they are now ready to mounted
to the sides of the chassis.
1. Identify the left and right inner rails.
2. Attach the handles to the front sides of the chassis with three screws each.
3. Position the inner rails along the side of the chassis making sure the screw holes line up.
4. Screw the rail securely to the side of the chassis.
Warning: Do not pick up the server with the front handles. They are designed to pull
the system from a rack only.
