Chapter 3: Maintenance and Component Installation
Installing Expansion Cards
The system can accommodate six PCIe cards. The chassis has seven slots, but the slot
nearest the chassis top is not supported by this motherboard.

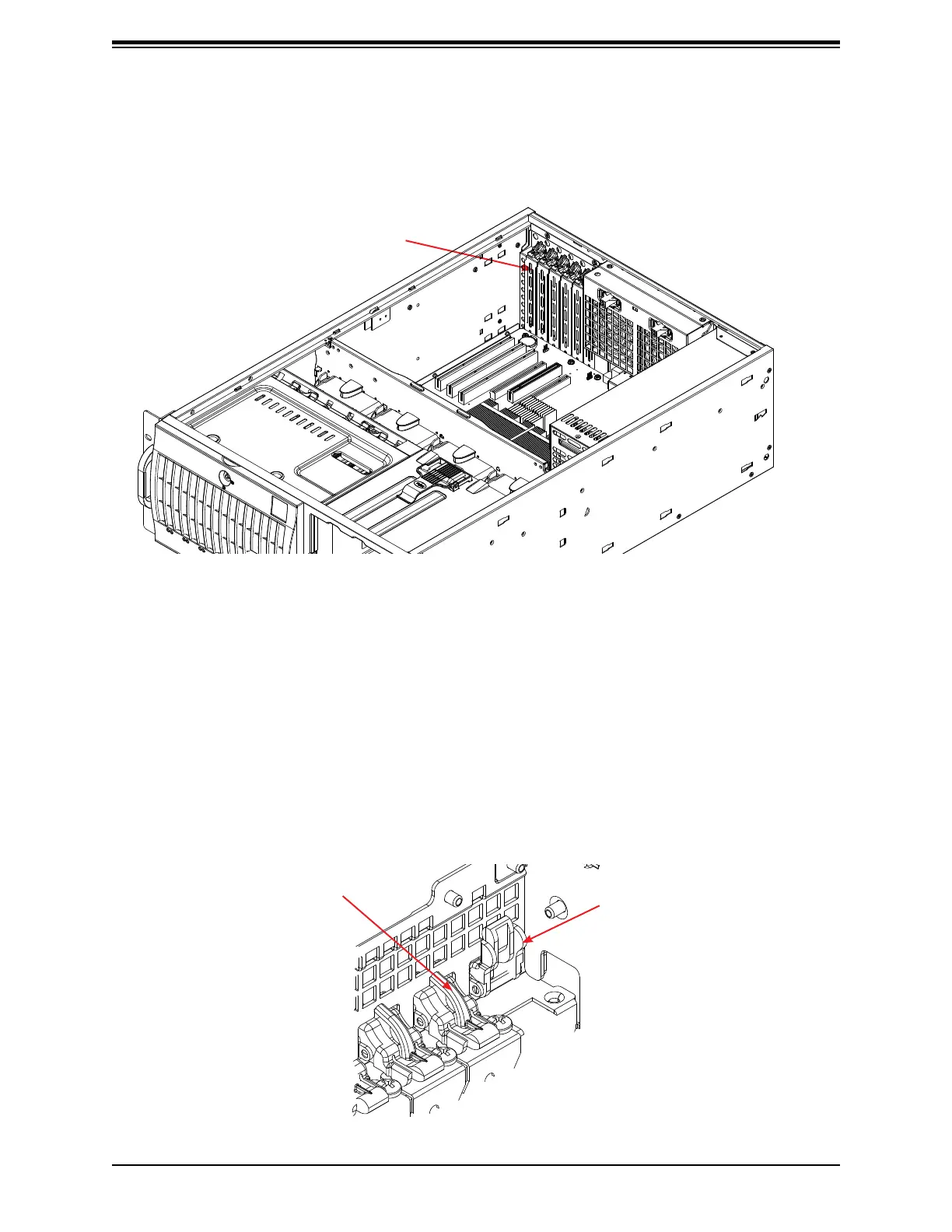

Figure 3-13. Removing a Blank PCI Shield
Expansion Card
Chassis Slots
Installing an Expansion Card
1. Power down the system and remove the cover.
2. In the rear of the chassis, push on PCI shield lock, then lift the lock.
3. Remove the screw holding the PCI shield in place and remove the shield.
4. Push the expansion card into the expansion slot on the motherboard while aligning it with
the chassis slot in the rear of the chassis.
5. Secure the expansion card shield onto the rear of the chassis with a screw and the lock.
Figure 3-12. PCI Slots
PCI Shield Lock
push here
PCI Shield Lock
lifted
