Chapter 3: Maintenance and Component Installation
Air Shroud
Air shrouds concentrate airow to maximize fan efciency. It covers the processors and
heatsinks.
Installing the Air Shroud
The air shroud ts behind the two fans closest to the power supply. Align the pins and press
the air shroud into the chassis. It should click into place.

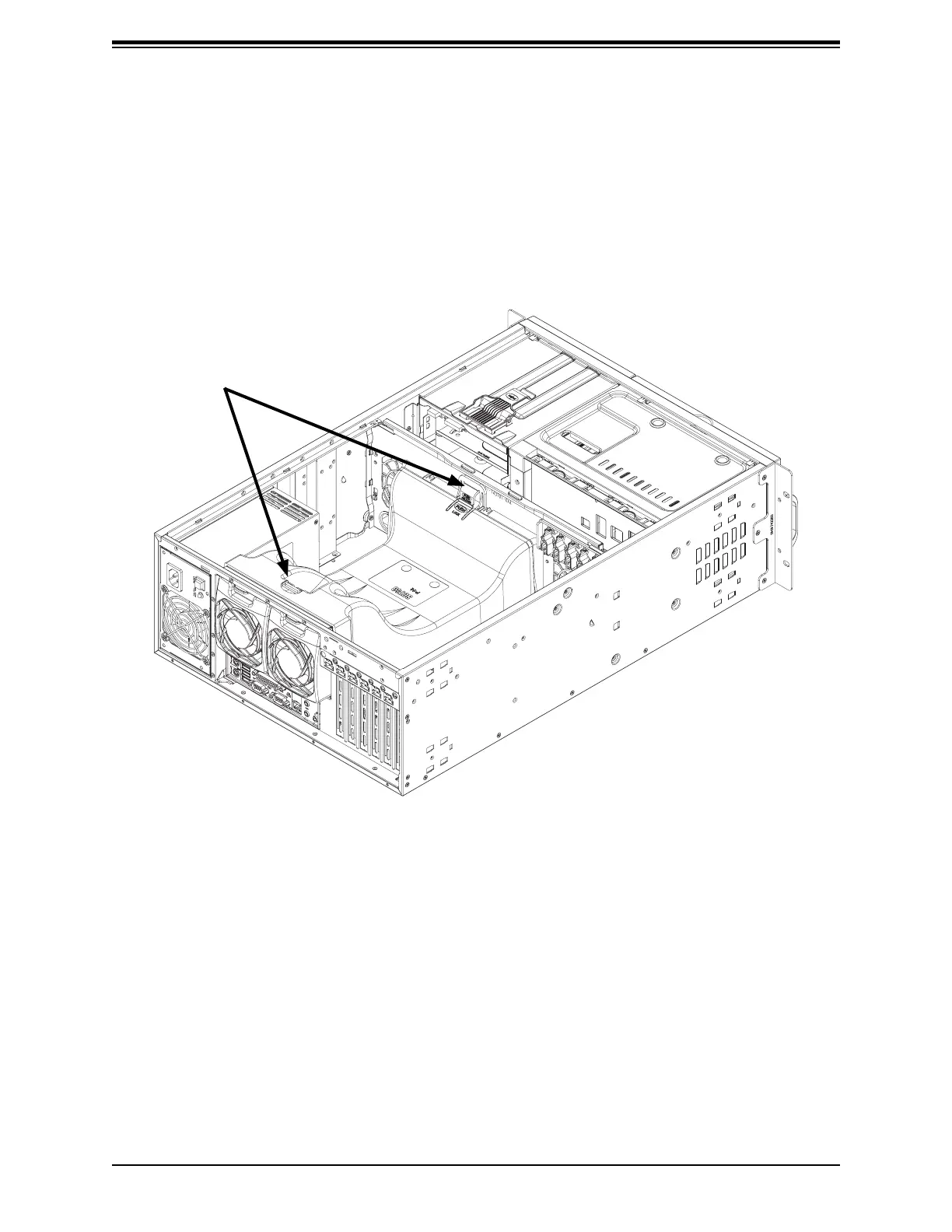

Figure 3-15. Installing the Air Shroud
Release Tabs
To remove the air shroud, press the release tabs at the front and rear of the shroud to unlock
it, the lift it out.
