Chapter 3: Maintenance and Component Installation
Additional Storage Drives in a Mobile Rack
The chassis accepts a Supermicro mobile rack (pn CSE-M28SABP) in place of two 5.25"
bays. This adds eight hot-swap 2.5" SAS or SATA drives. An optional expansion card and
cables are also required.

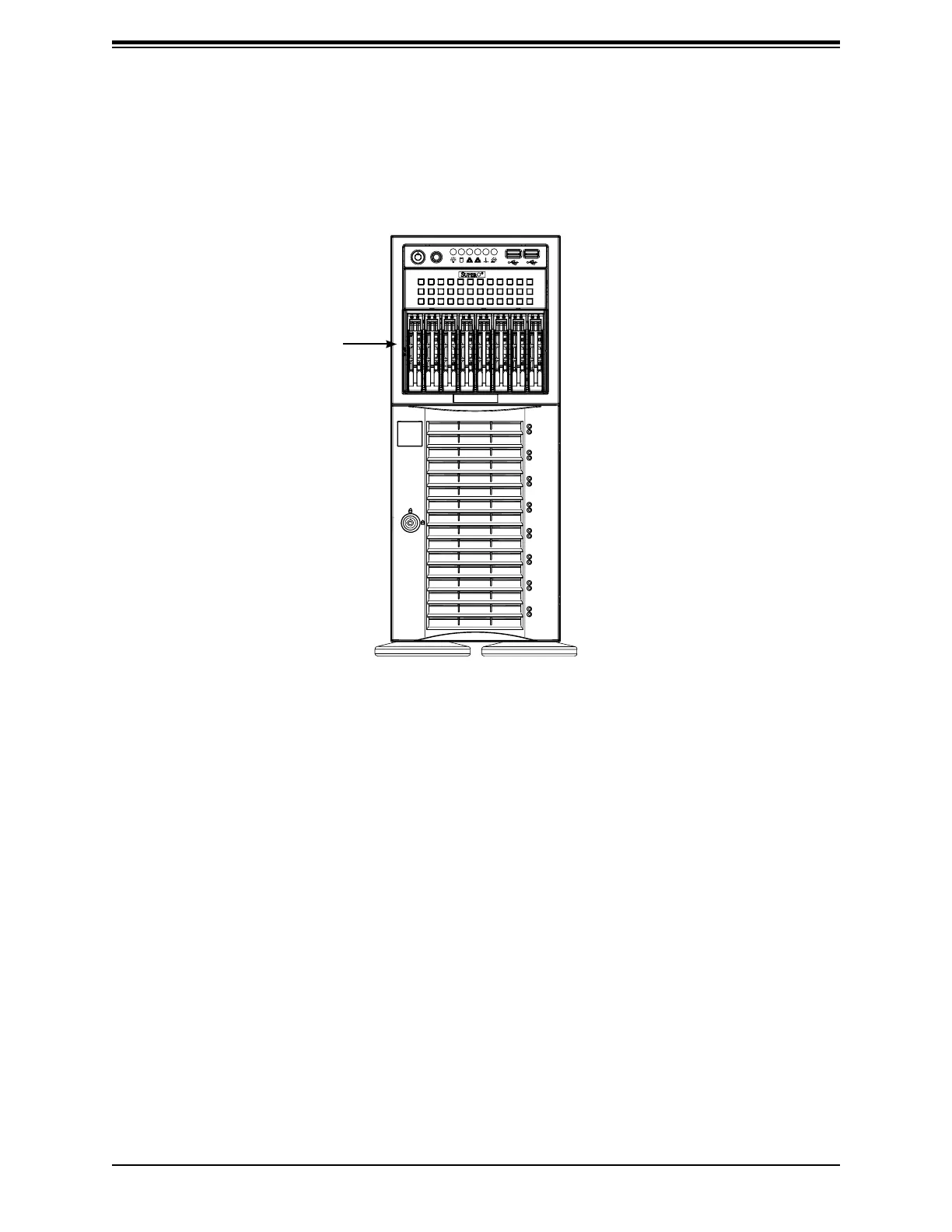

Figure 3-10. Chassis with a Mobile Rack Installed
Installing the Mobile Rack
1. Remove two adjacent trays from the drive bays.
2. Remove the drive tray rails.
Mobile Rack
