Chapter 2 Rack Mount Installation

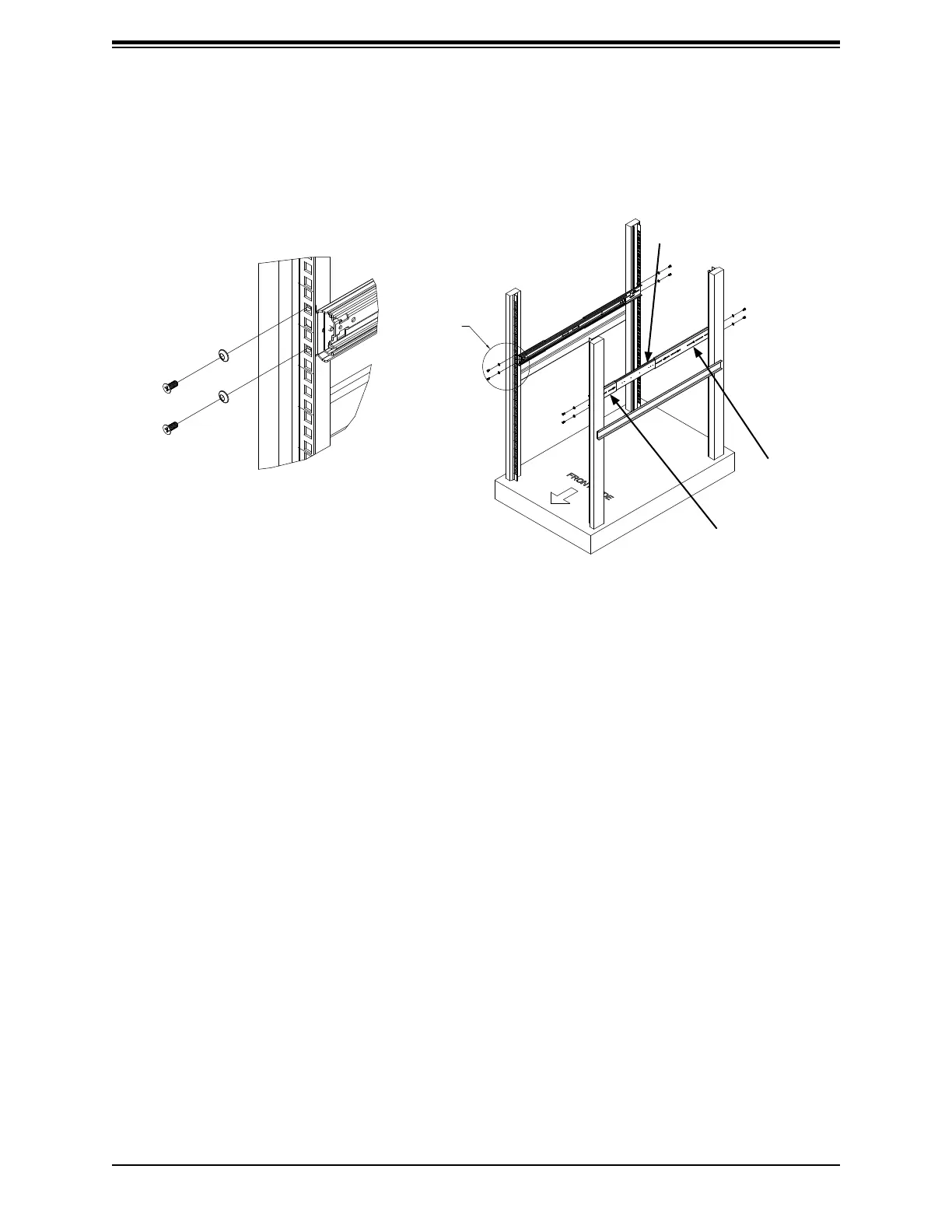

4. Install the assembly onto your rack. Adjust the Outer Rail to the exact depth of the rack

by sliding the rear bracket. Then use screws and fasteners to secure the outer rail to the

front and rear rack posts.

SEE DETAIL A

DETAIL

5. Further tighten the screws holding the rear bracket to the rail.

Outer rail

Long Rail Bracket

Short Rail Bracket

SEE DETAIL A

DETAIL
