Chapter 2 Rack Mount Installation

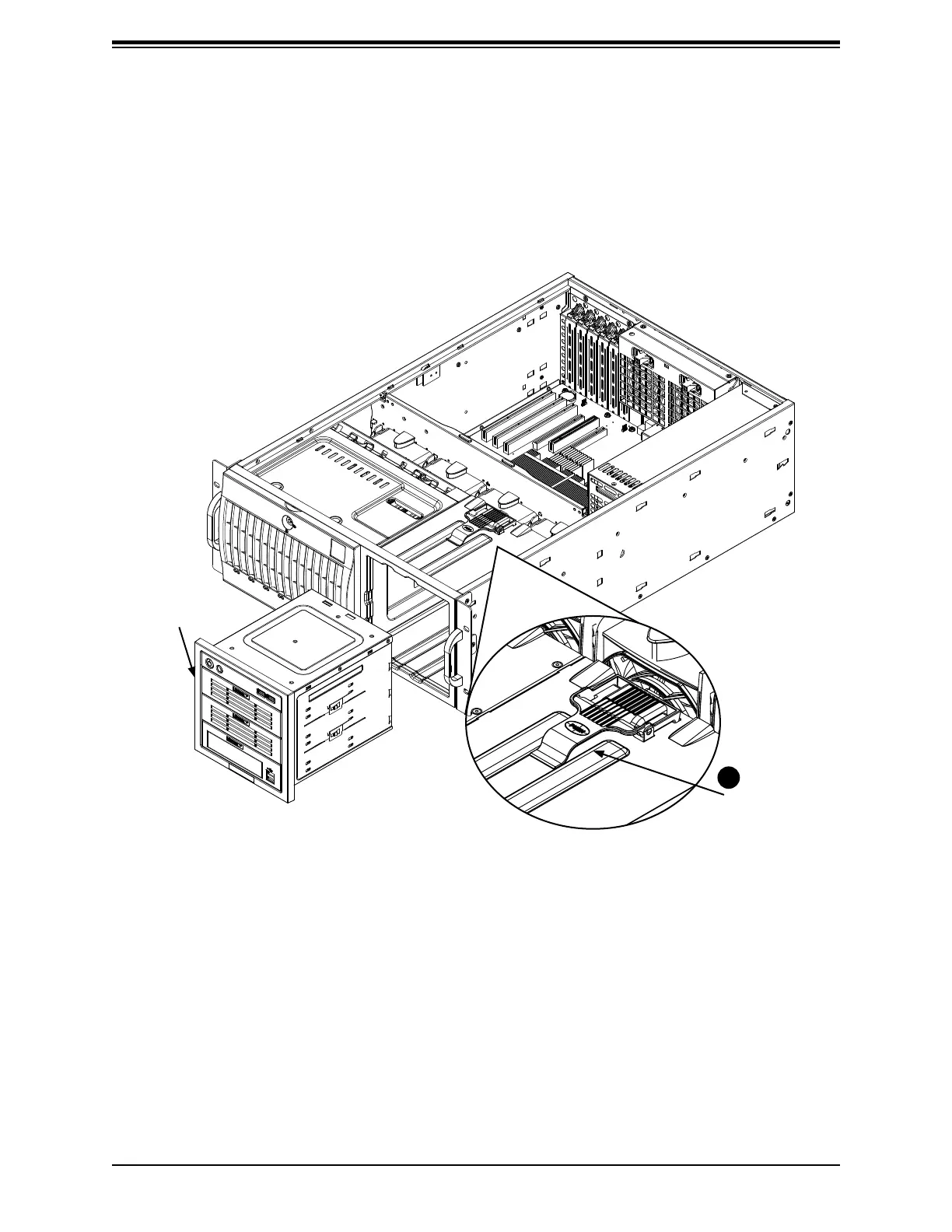

Figure 2-8. Rotating the Control Panel/Drive Module
Rotating the Control Panel/Drive Module for Rack Mounting
1. Power down the system as described in section 3.1 and open the chassis cover.
2. Disconnect any cables from the back of the Control Panel/Drive Module.
3. Push the module release lever to unlock the module.
Module Release Lever
Control Panel/
Drive Module
in Rack Mount
Orientation
3
4. Grasp the edges of the module and pull it from the chassis.
5. Rotate the module 90 degrees so that the control panel is on top.
6. Reinsert the module into the chassis and reconnect the cables.
Caution: Use caution when working around the backplane. Do not touch the module
backplane with any metal objects and make sure no ribbon cables touch the backplane or
obstruct the holes, which aid in proper airow.
